Fuji Electric Micro-controller X Series User Manual

73

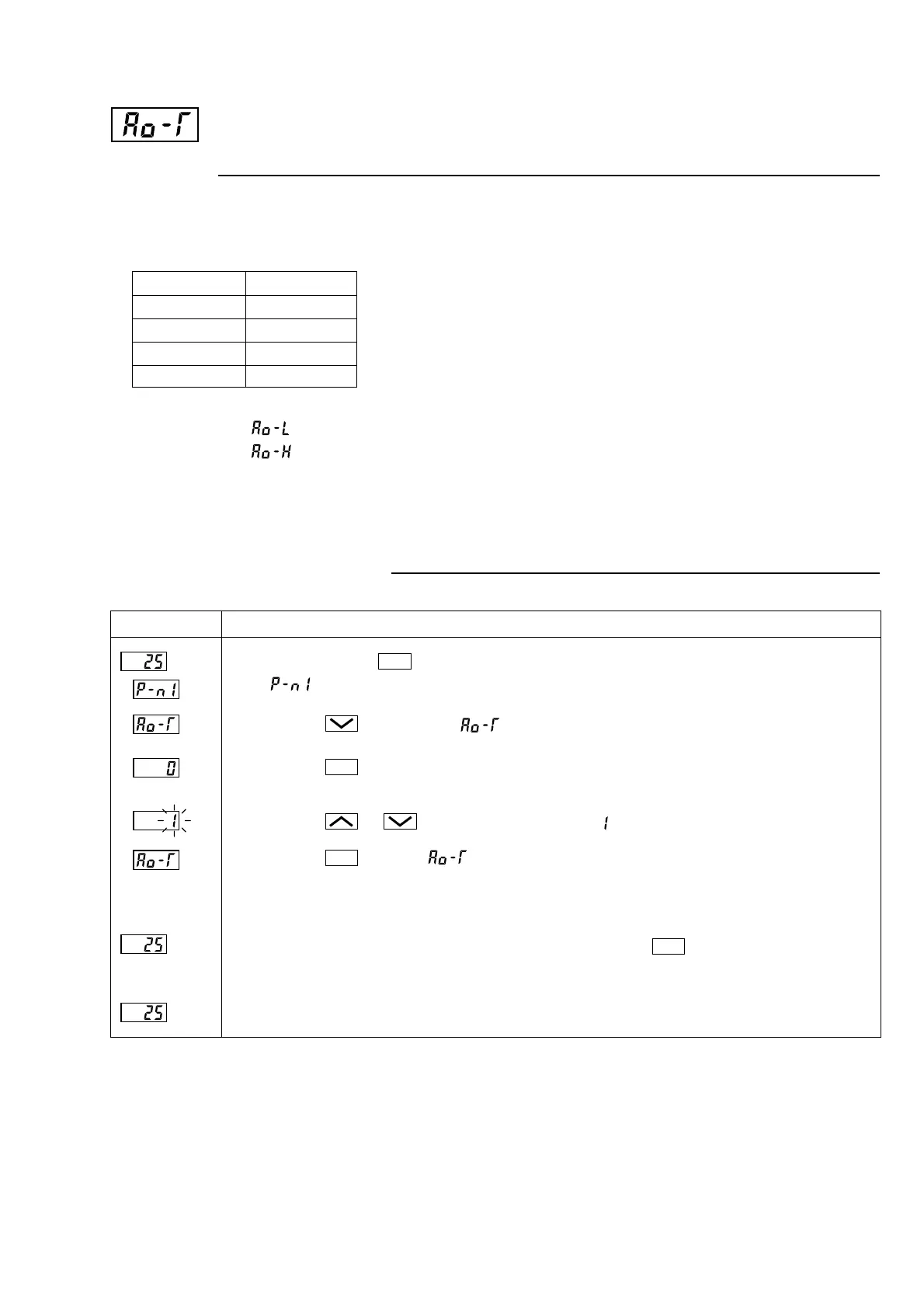

Re-transmission output type setting (Setting range: 0 to 3) (Option)
[Description]
• This parameter is used to set the retransmission output
type.
The means of the set values are as shown below.
Related parameters: (page 74)
(page 74)
[Setting example] Changing the retransmission output type from the process value (PV) to the
set value (SV)
Set value Output type
0PV
1SV
2MV
3DV
If you want to display the operation status, press and hold the key for two seconds.
The SV will be displayed on the display area.
If unoperated state continues, the PV will be displayed.
Press the
key once. will be displayed and 1 (SV retransmission) will be registred for the
retransmission output type. After that, the controller will operate with the retransmission output being SV.
Press and hold the key for 5 seconds.
will be displayed.
Press the or key to flicker and to display (SV retransmission).
(Repeat the procedure from 3 to 5 to check the set value.)
Press the key once.
The current setting (0 : PV retransmission) will be displayed.
Press the key to display .
SEL
SEL
SEL
1.
4.
6.
2.
3.
SEL
5.
Display Operating procedure
PV indication
PV indication
SV indication
