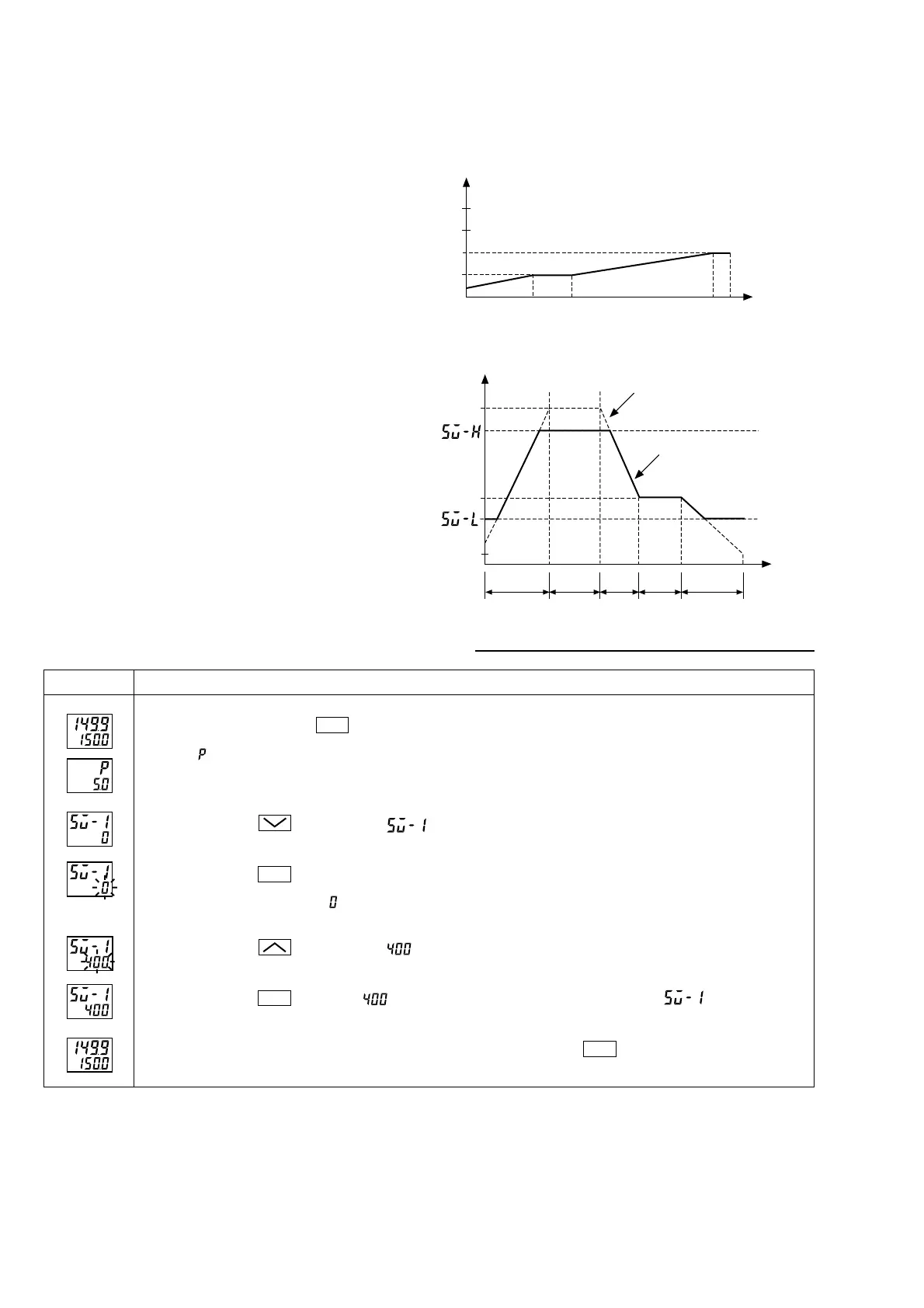

[Setting example] Setting the 1st target SV to 400°C
Press and hold the
SEL
key for three seconds.
will be displayed on the PV display.
Press the
key to display .
Press the
SEL
key once.
The current setting ( ) flashes on the SV display.
Press the
key to display .
Press the
SEL
key once. will stop flashing and will be registered for .
If you want to display the operation status, press and hold the
SEL
key for two seconds.
Operating procedureDisplay
1.
2.
3.
4.
5.
6.
PV
200
100
50
TM1r TM1S
TM3r
TM3S
SV-1
SV-2
PV
TM1r TM1S
TM2S
TM3r
SV-3
TM2r
Pattern of the program
Pattern that is affected
by the SV limit function
•The segment in which both the ramp time and soak time
are set to “0” is skipped.
[Ex]
SV-1: 50 SV-2:200 SV-3:100
TM1r:0.10 TM2r:0.00 TM3r:1.00
TM1S:0.05 TM2S:0.00 TM3S:0.75
•The SV limit function is valid even while the ramp-soak
operation is running.
Although the set value (SV-n) remains unchanged, the
SV under ramp-soak operation is affected by the limit
function. Therefore, the pattern is as shown in the figure
on right, and it may not change according to the original
set time.
