15 Appendix
612
Appendix
15
Hard Clip Area
In the HP-GL mode, the plottable area is determined in line with the paper size, apart
from the printable area. This area is called the "hard clip area", and determines the
maximum range of pen movement. Accordingly, images cannot be drawn outside the
boundary of the hard clip area. This machine allows you to select a hard clip area from
the following:

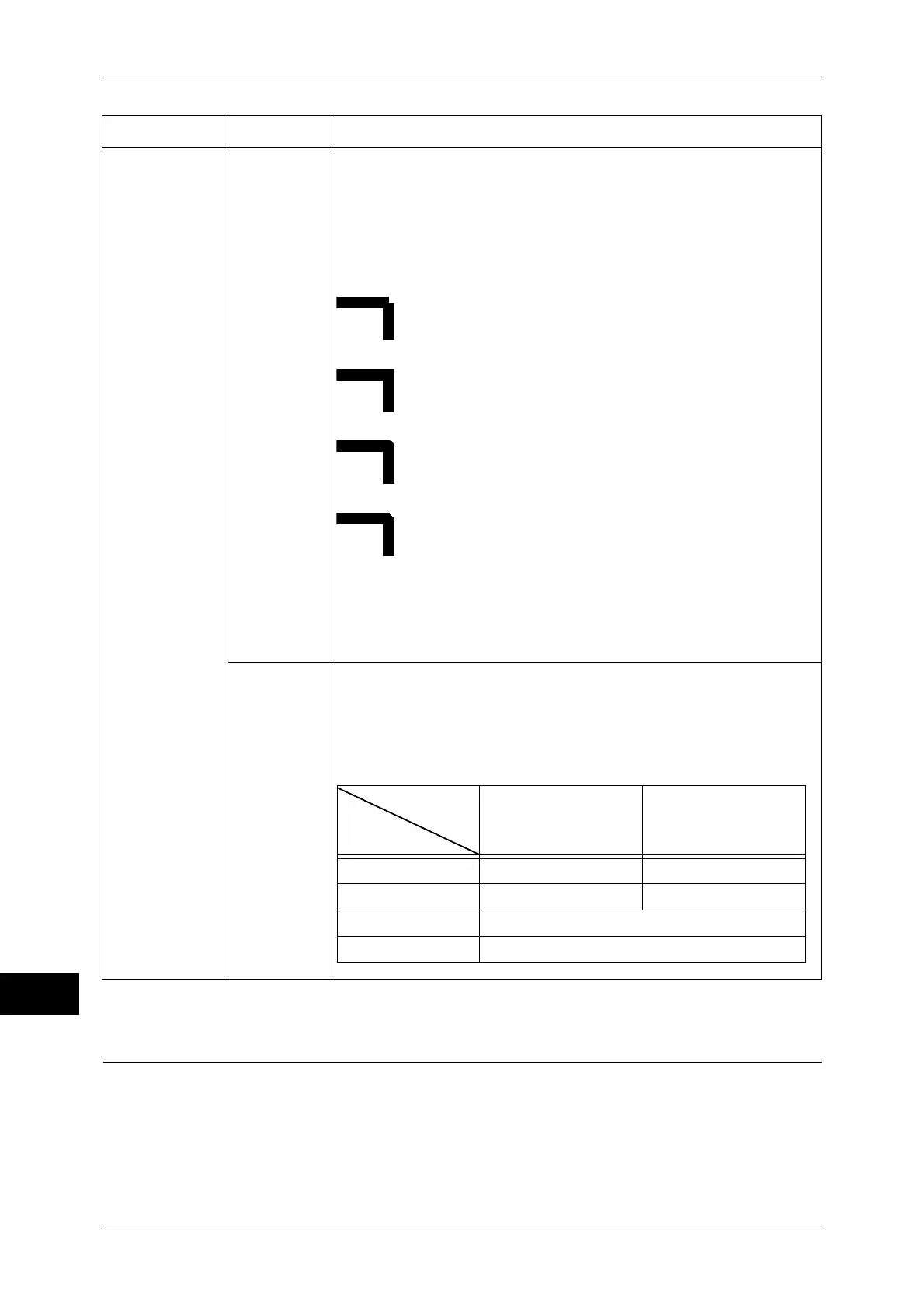

900-915 (Pen
intersects)
(No. 0-No.15)
Set the process for when pens' lines intersect for 16 pens (No. 00 to 15).
No. 00 denotes Item No. 900.
[0] (Default) : None
[1] : Intersect
[2] : Round
[3] : Cut
[None]
[Intersect]
[Round]
[Cut]
Note • [None] is suitable for drafts because it takes shortest processing
time.
• If a symbol is set by symbol command, the link process is not
executed. The symbol command is an HP-GL/2 command for
specifying a symbol.
950-965 (Pen
density)
(No. 0-No.15)
Sets the color of the 16 pens (No. 00 to 15). You can set the color from 0
to 250% in 1% increments. The default value is [0] for No. 0, and [100] for
the others. No. 00 denotes Item No. 950.
[0] - [255] : 0 to 250 (color)
Note • The relationship between the pen attributes and fonts are as follows:
Parameter Item No. Value
Fonts
Pen attributes
Stroke Roman, Sans-Serif
Pen width Valid Invalid
Line end shape Valid Invalid
Link process Invalid
Pen density Valid
To Next Page
