Fuji Xerox ApeosPort-IV C5570 Administrator's Guide

Replacing Consumables
67
Maintenance
3

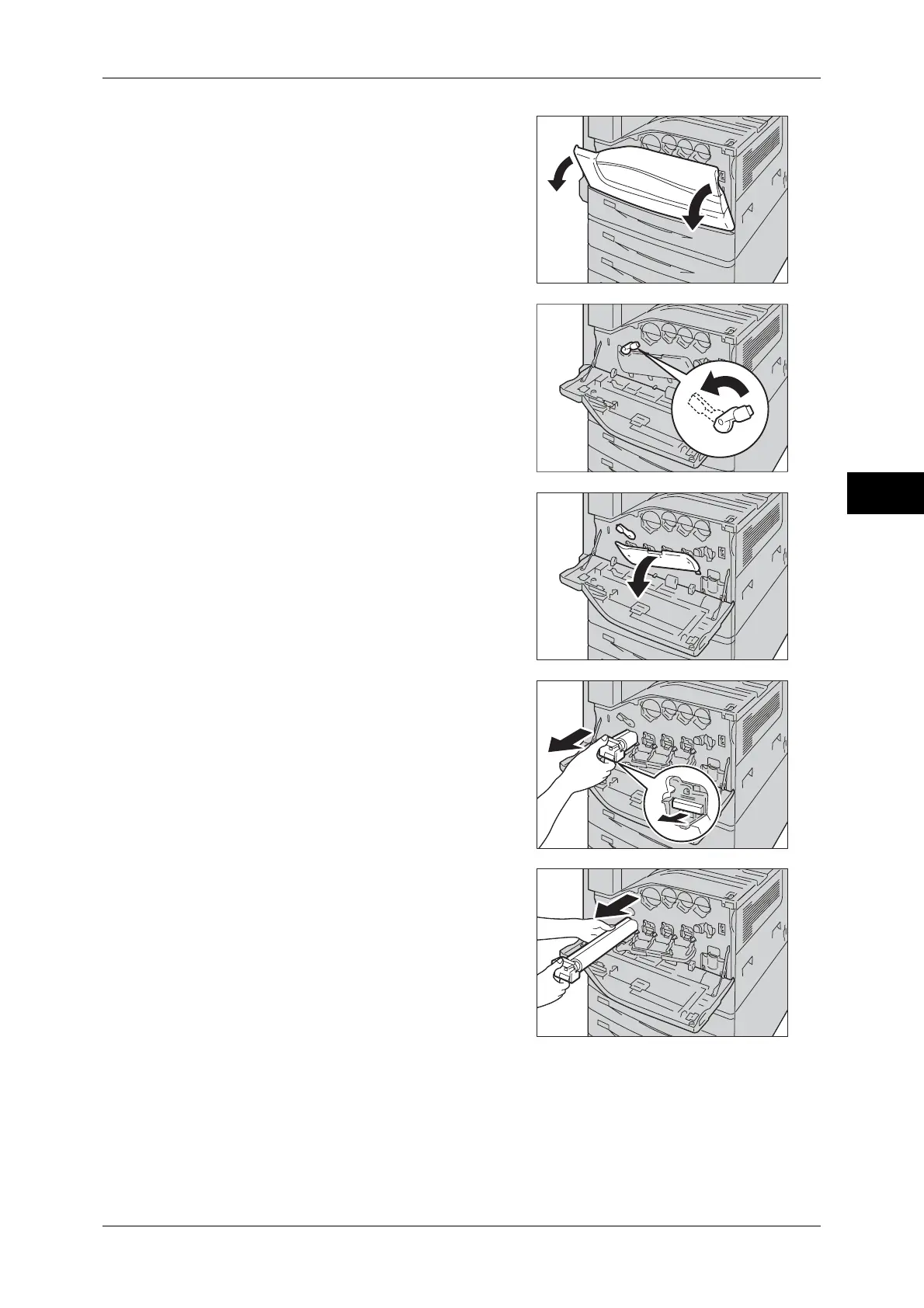

1 Make sure that the machine is not operating,
and open the front cover.
2 Rotate the release lever of the drum car-
tridge cover counterclockwise.
3 Lower the cover.
Note • The drum cartridge is unlocked.
4 Grasp the handle of the drum cartridge
indicated in the message (R1, R2, R3, or R4)
and gently slide out the cartridge.
Important • When removing the drum cartridge, be
careful not to drop it on the floor.
Note • This section explains how to replace the
drum cartridge R1, as an example.
5 Hold the bottom of the drum cartridge as
shown in the illustration, and pull it out from
the machine.
Important • Be careful not to touch the toner attached
to the cartridge.
6 Take the new drum cartridge out of the box, and insert the used drum cartridge into
the supplied plastic bag and place it into the box.
Important • Do not place the new drum cartridge in an upright position.
• Return the old drum cartridge to our Customer Support Center.
