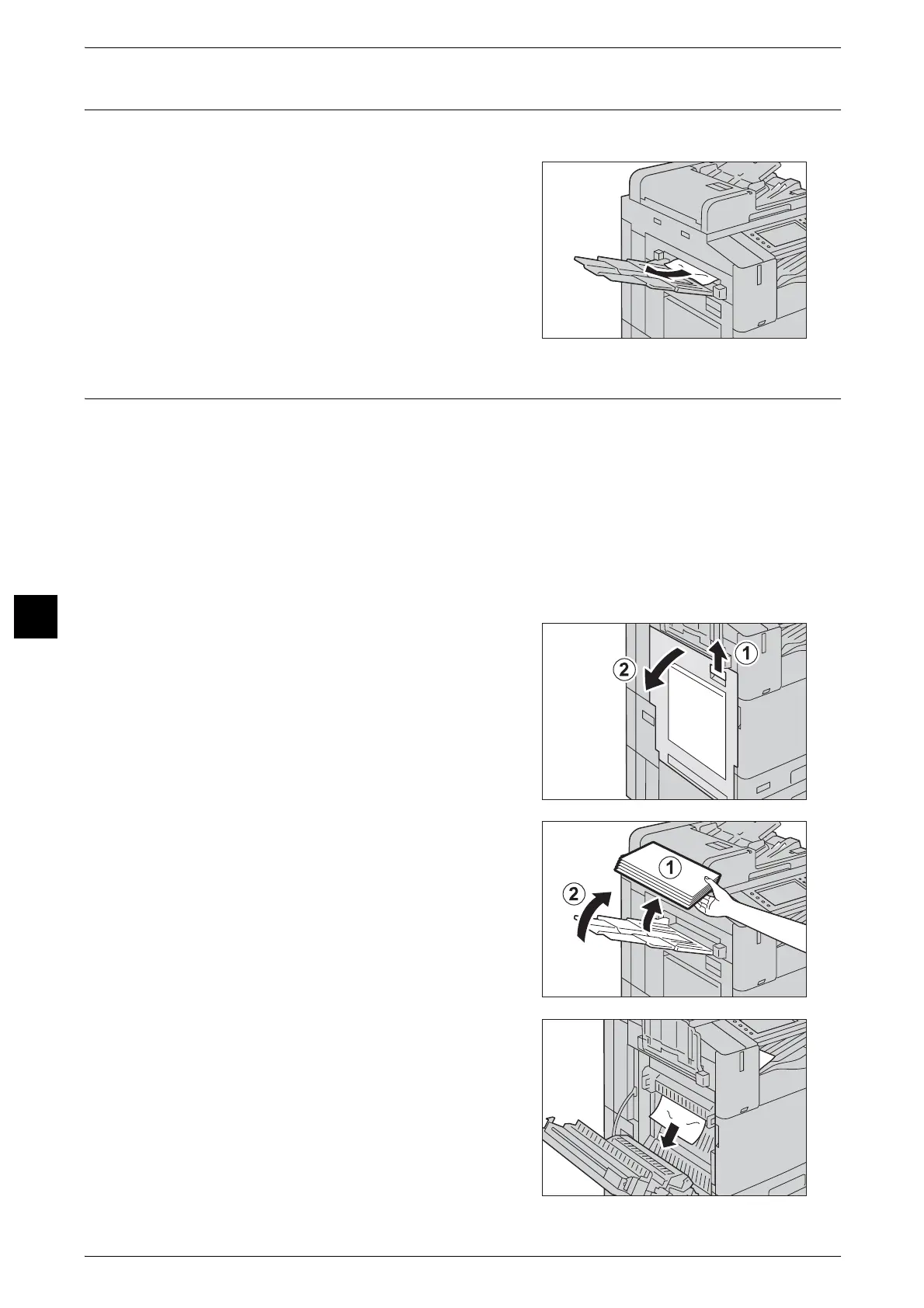

Paper Jams in Side Tray
The following describes how to clear paper jams occurring in the Side Tray (optional).
1
Remove the jammed paper.
Note • If the paper is torn, make sure no piece of
paper remains inside the machine.
Paper Jams in Top Left Cover A
The following describes how to clear paper jams occurring in the top left cover.
Important • Do not touch the black film like transfer belt inside the top left cover when you remove the jammed
paper because images might be shifted on the transfer belt. If you touch the belt, the image quality
might be deteriorated or the belt may be damaged and need replacement.
Paper Jams in Fusing Unit ......................................................................................................................................................... 110
Paper Jams in Center Tray Exit.................................................................................................................................................111
Paper Jams in Duplex Module ..................................................................................................................................................112
Paper Jams in Fusing Unit
1
While lifting up the release lever (1), gently
open the top left cover (2).
When the Side Tray (optional) is installed
Remove paper from the Side Tray (1), close the
Side Tray (2), and then open the top left cover.
2
If you can see the edge of the jammed paper
on the output tray, pull the paper straight in
the arrow direction.
Note • Toner may adhere on the transfer roller, but
the image quality will not be affected.
To Next Page
