Machine Components
41
Product Overview
2

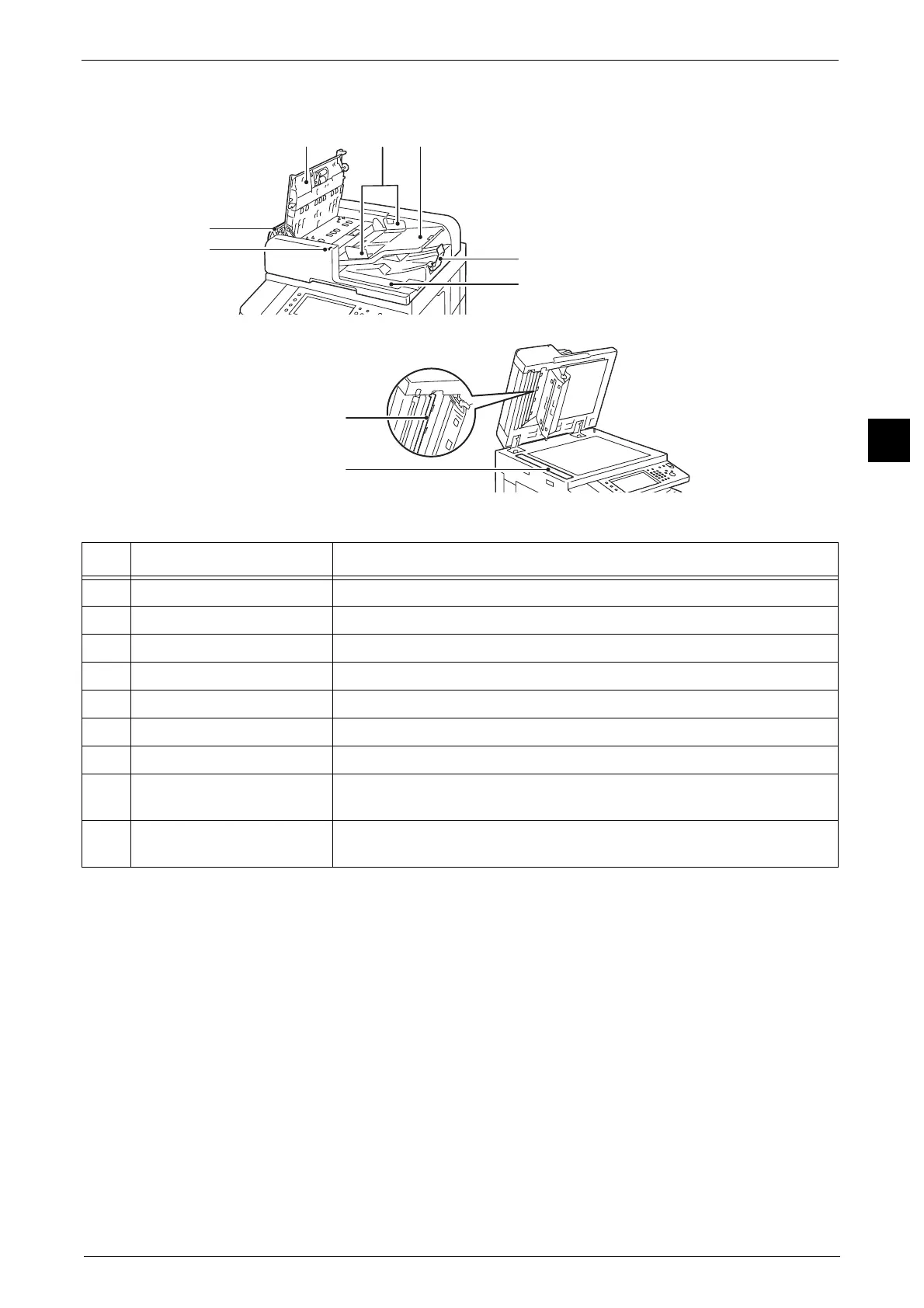

îš„ Duplex Automatic Document Feeder C1-PC
Note • In this guide, "document feeder" means both the Duplex Automatic Document Feeder B1-PC
(optional for some models) and the Duplex Automatic Document Feeder C1-PC unless expressly
restricted to one of them.
No. Component Function
1 Confirmation indicator Lights up when a document is loaded correctly.
2 Left cover Open this cover to clear paper jams.
3 Top Cover Open this cover to clear paper jams.
4 Document guides Use these guides to align the edges of documents.
5 Document feeder tray Load documents here.
6 Document stopper Prevents outputs from falling off.
7 Document output tray Scanned documents are delivered here.
8 Side 2 constant velocity
transport glass
Scans Side 2 of the loaded document.
9 Side 1 constant velocity
transport glass
Scans Side 1 of the loaded document.
1
2
3 4 5
6
7
8
9
