352 A Appendix

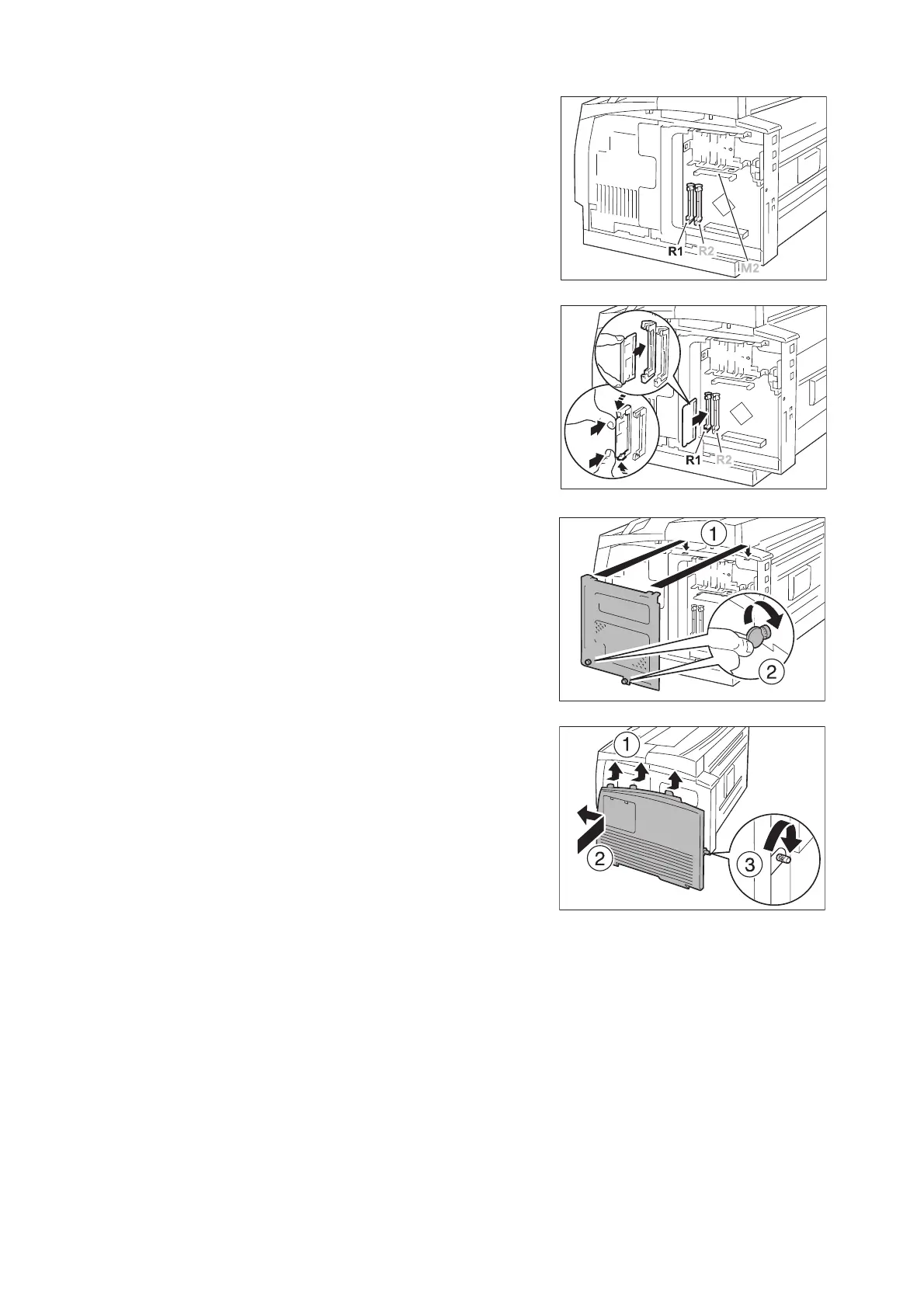

4. Insert the TC/SC Additional Font Kit into the
R1 slot shown in the illustration on the right.
Important
• The R2/M2 slots are for other options. Do not insert
the TC/SC Additional Font Kit in these slots.
Widely open the tabs on both sides of the
R1 slot, correctly align the notch on the TC/
SC Additional Font Kit with the projecting
part of the R1 slot on the printer, insert the
ROM straight in, and then strongly push
both sides from the top of the ROM.
Note
• Be sure to fully insert the ROM.
• The two retainer clips located on both sides rise when
the ROM is fully pushed in.
5. Insert the two tabs at the top of the internal
cover into the recess in the printer, and
close the cover. Using a coin, etc., tighten
the two screws at the bottom of the cover.
6. Close the cover by pushing it up so that the
three projections at the top of the right
cover fit into the corresponding recesses on
the printer.
Tighten the screw at the rear of the printer.
7. Connect the power cord.
Switch on the power of the printer by pressing the<|> side of the power switch.
TC/SC Additional Font Kit installation is now complete.
