Using your notebook
Connecting the notebook to the Port Replicator
► Disconnect the mains adapter cable from the DC socket (DC IN) of the notebook.
1
2
3
i
Make sure that the covers on the LAN port, modem port and monitor port are fully in place.

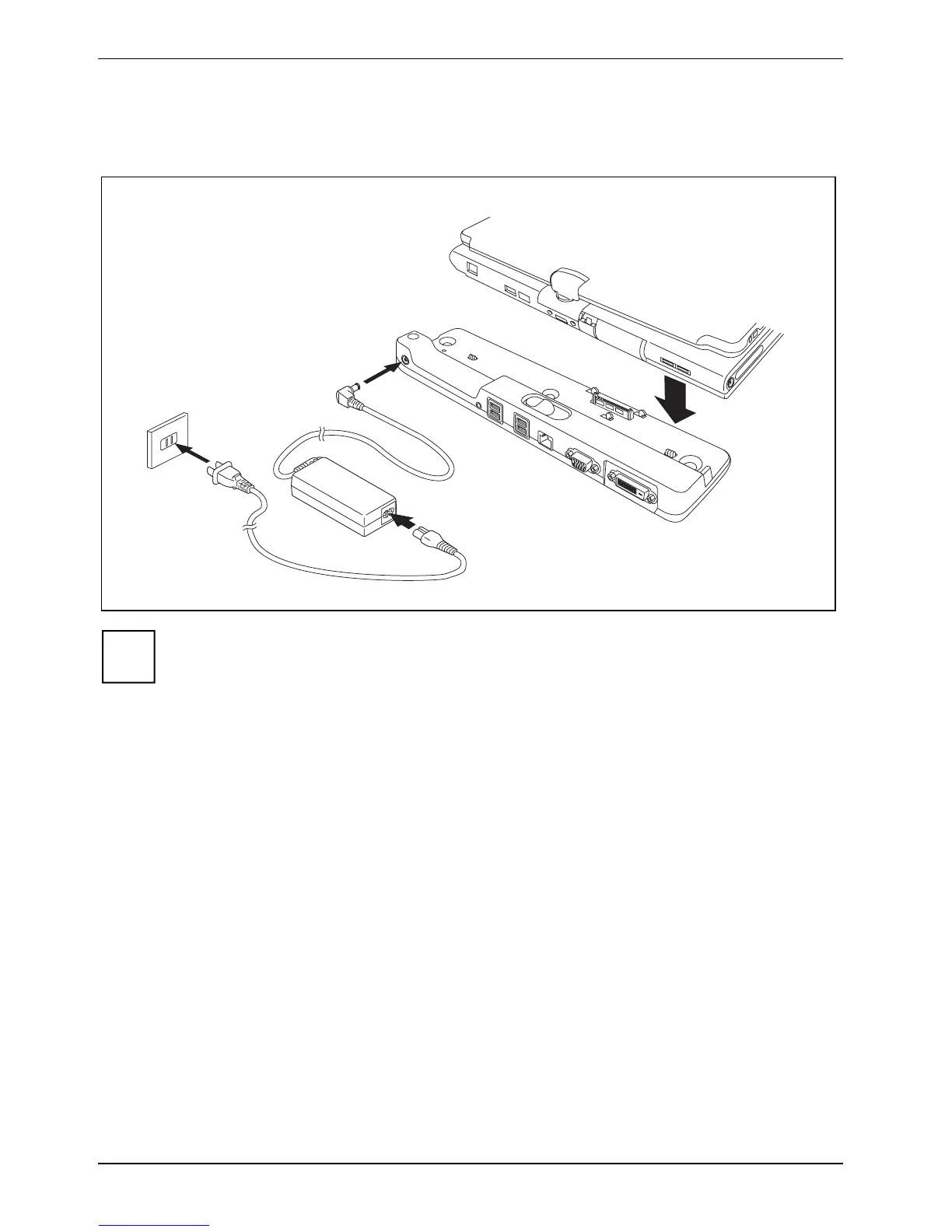

► Align the docking connectors as shown.
► Press down on the notebook’s rear corners so that it locks into position.
► Connect the mains adapter cable to the DC jack (DC IN) of the Port Replicator (1).
► Connect the power cable to the mains adapter (2).
► Plug the power cable into the mains socket (3).
58 A26391-K220-Z122-1-7619, edition 1
