(1)
(2)
FRONT
REAR
Number in figure Name
Quantity
1Slide rail (left/right) 1 per side
2Cable management arm 1
3.4.1 Mounting the SPARC M10-1 in a rack
1.
Confirm that the rack rail kit supplied with the SPARC M10-1 is complete.

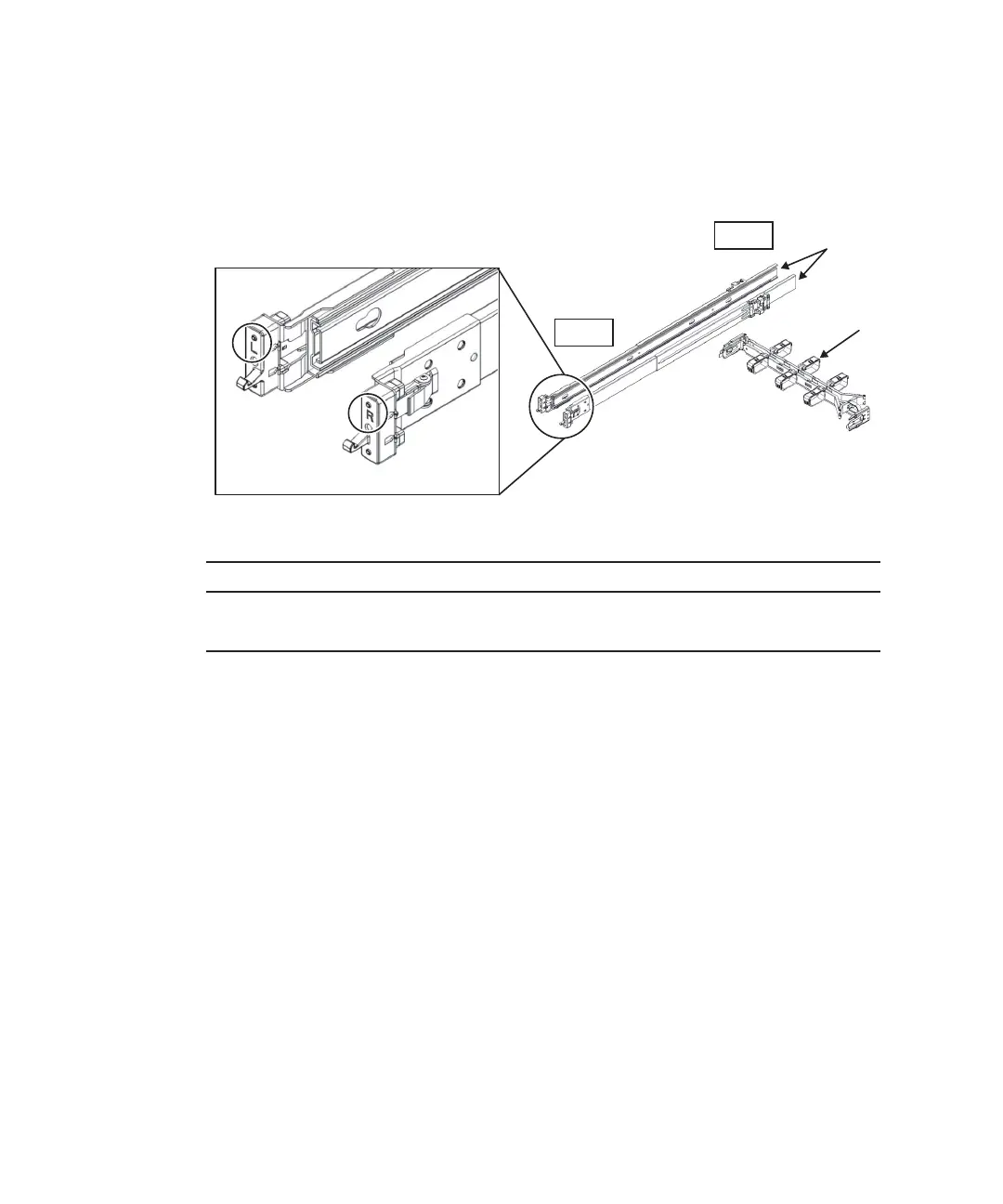

Figure 3-25
Rack rail kit
2.
Confirm that the rack is fixed in place to prevent the rack from toppling over.
For details, see "3.3.2 Securing the rack."
3.
Confirm the chassis mounting location in the rack.
a. Confirm the
mounting location in the rack. If necessary, mark the location on
the supporting columns.
b. Confirm that the chassis mounting location is the same on the front and rear
columns.
c. Remove the inner rail from the slide rail.
d. Pull out the inner rail by releasing the lock on the inner
rail.
The inner rail is attached to the chassis in step 6.
e. Release the lock on the middle rail, and store it in the outer rail.
4.
Attach the slide rail to the rack.
a. Confirm the attachment direction of the slide rail.
The [R] mark on the slide rail indicates
the right side, and the [L] mark
indicates the left side. The [FRONT] mark on the slide rail should be
positioned at the front of the rack.
b. From the front of the rack, attach the slide rail to the rear supporting column
of the rack. At this time, attach the
slide rail brackets to the supporting
Fujitsu M10/SPARC M10 Systems Installation Guide
･
July 201596
