Note -
Do not connect to an outlet at this point.
Note -
In a building block configuration with connections through crossbar boxes, XBBOX#80
is usually the master XSCF, and XBBOX#81 is the standby XSCF. If the master is switched,
XBBOX#81 becomes the master XSCF, and XBBOX#80 becomes the standby XSCF.
Note -
In a building block configuration with connections through crossbar boxes, no serial
cable is connected to the SPARC M10-4S.

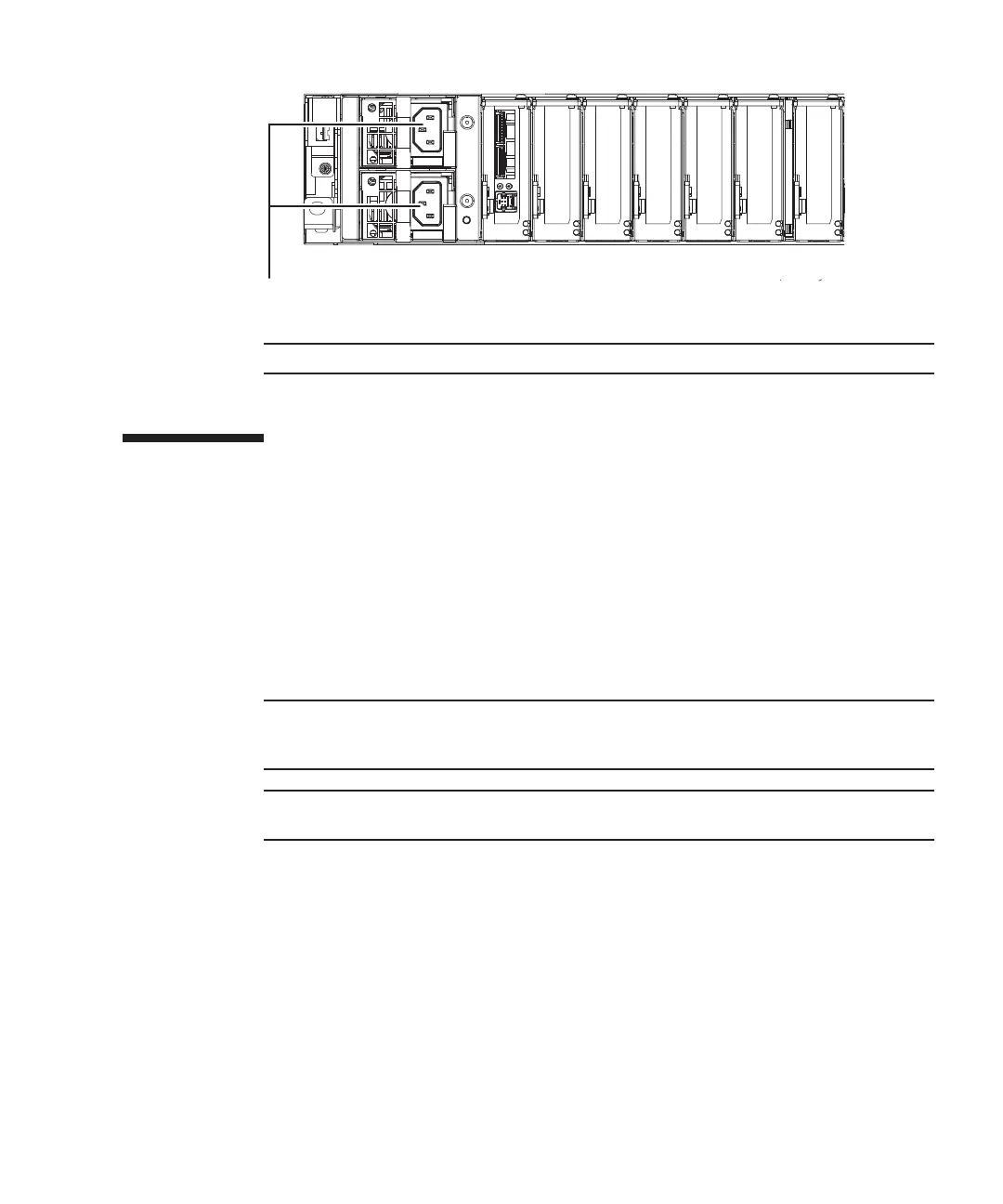

Figure 5-12
Power supply unit locations
5.4 Connecting Cables to a Crossbar Box
This section describes the procedure for connecting the serial cable to a crossbar box.
1.
Connect the serial cable supplied with the chassis from the serial port of the
XSCF unit (A in Figure 5-13) to the system management terminal.
In a building block configuration, the system operates with batch operations by
the chassis of the master XSCF. Connect the serial cable to the master XSCF.
Chapter 5 Connecting Cables to the Chassis 171
