A BC
90 mm (3.5 in)

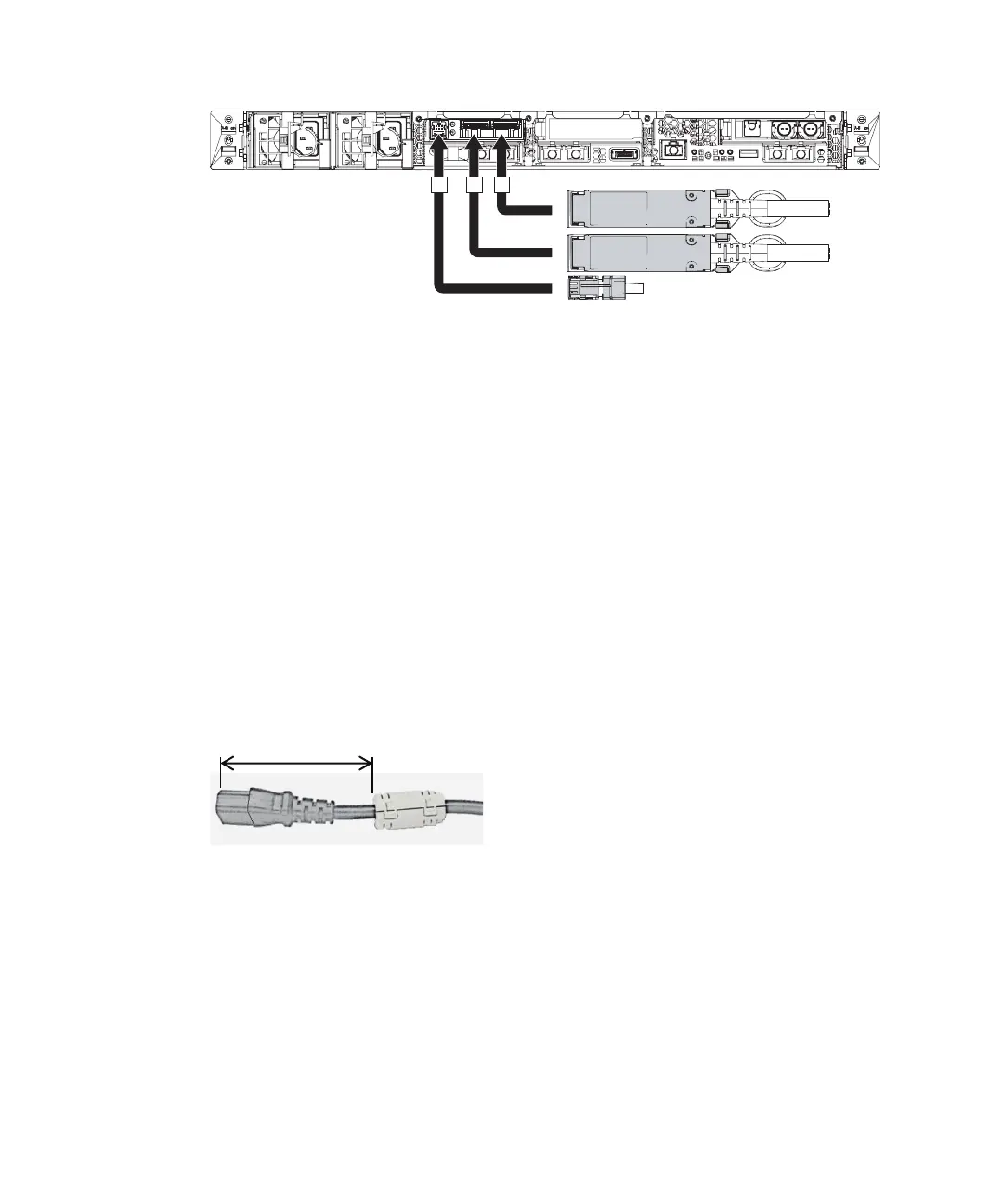

Figure 5-10
Connecting the link cables and management cable (SPARC M10-1
side)
3.
If a PCIe card is mounted, connect a LAN cable and I/O cable to the respective
ports on the PCIe card.
4.
Secure the cables to the cable support.
While leaving extra length, secure the cables connected to the PCIe
card to the
cable support.
5.
Attach a core to each supplied power cord, and connect the cord to a power
supply unit.
a. Insert the power cord so that it fits into the groove of the core. Pinch the core
closed until its latch is secured.
Attach the core at a
location 90 mm (3.5 in) from the end of the power cord
connector. (See Figure 5-11.)
b. Connect the power cord to the power supply unit (A in Figure 5-12).
Secure the power cords with a power clamp.
Figure 5-11
Core attachment location
Fujitsu M10/SPARC M10 Systems Installation Guide
･
July 2015170
