8.3.1 Confirming the removal pattern
Figure 8-3 shows the removal patterns of building block configurations. The
necessary tasks vary depending on the removal pattern. Check which pattern applies
to your case. For details on system configurations, see the Fujitsu M10/SPARC M10
Systems Quick Guide.

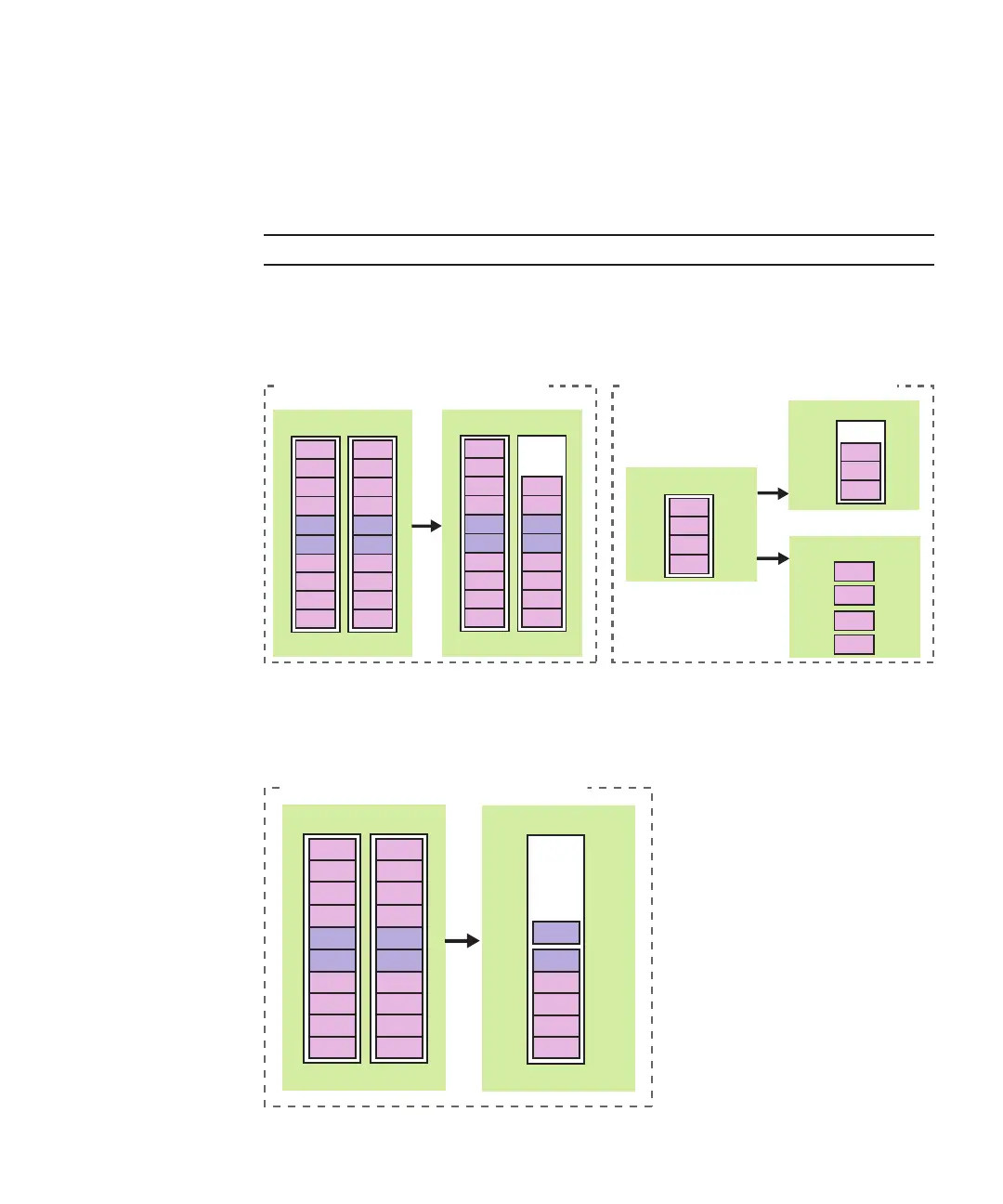

Figure 8-3
Removal patterns of building block configurations (removal of only
the
SPARC M10-4S)
Figure 8-4
Removal patterns of building block configurations (removal of
expansion rack 2)
Chapter 8 Before Installing/Removing a System with a Building Block Configuration 233
