Table 1-3
Configurations when the SPARC M10-4S is in a building block configuration
Item Without expansion rack With expansion rack
Mounting rack Mounted in equipment
rack
Mounted in expansion rack
Number of configurations Up to 4BB configuration 2BB configuration to 16BB
configuration (*1)
Chassis connection method Direct connections
between chassis
Connections through crossbar boxes
Crossbar cable type Electrical cable Optical cable
*1 For the 2BB configuration or larger, the chassis can be mounted on an expansion rack. Two expansion racks are
necessary for the 9BB configuration or larger.
BB#00
BB#01
BB#02
BB#03
(1)
(2)
(3)
Number in figure D escription
1SPARC M10-4S
2 Crossbar unit
3 Crossbar cable (electrical)
Direct connections between chassis (without an
expansion rack)
A configuration with direct connections between chassis (without an expansion rack)
directly connects each SPARC M10-4S unit with crossbar cables (electrical). It can be
expanded to up to the 4BB configuration.
This section describes the flow from installation of a building block configuration to
the initial system settings.
The initial system settings
are the settings implemented before system startup, and
they include the XSCF setup, CPU Activation setting, and physical partition
configuration.

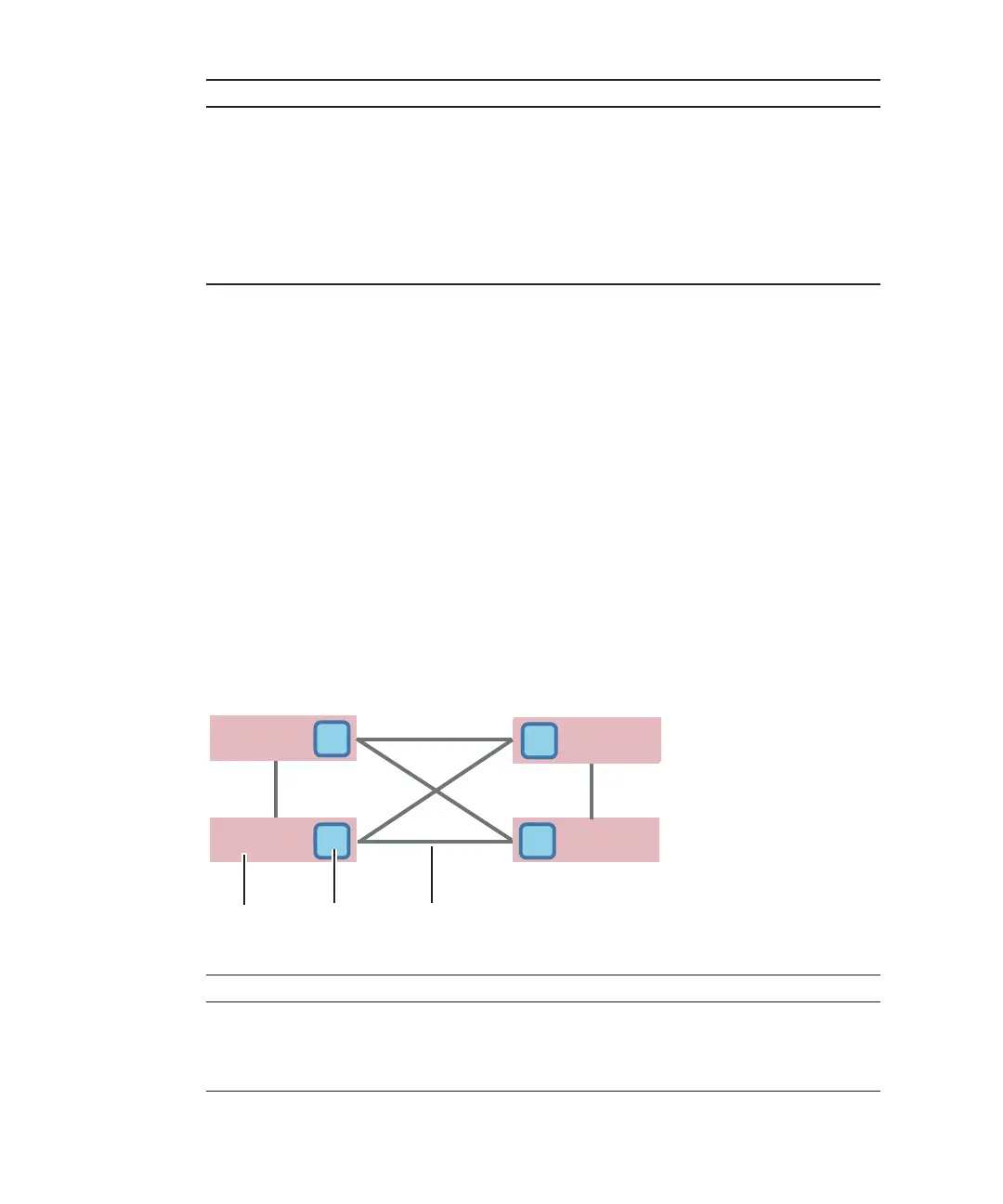

Figure 1-1
Direct connection between each chassis
Fujitsu M10/SPARC M10 Systems Installation Guide
･
July 20156
