2.4.4 Installation area for an expansion rack
Confirm that the service areas (space used for maintenance) shown in Figure 2-11 are
secured.

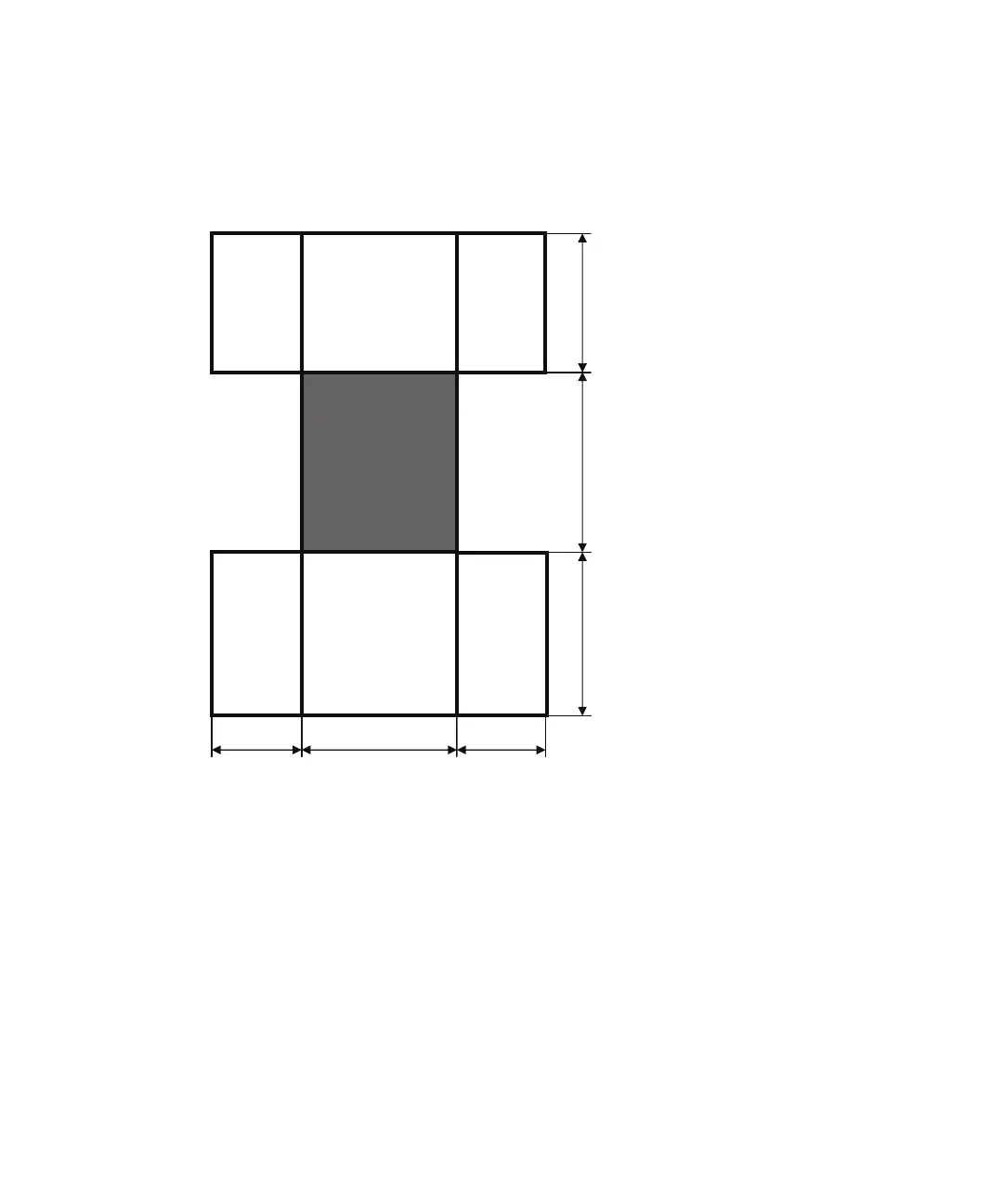

Figure 2-11
Example of service areas for an expansion rack (top view)
2.4.5 Bottom view of an expansion rack
Figure 2-12 shows the locations of openings for taking out/in cables, the leveling feet,
and the casters on the bottom of the expansion rack. This top-view diagram shows
the bottom of the inside of the expansion rack as viewed from directly above.
Note that the values shown are expansion unit design
values. To fix the leveling feet
to the floor, determine locations allowing for a tolerance of ±2 mm (±0.1 in.), which is
the dimensional tolerance of the expansion racks.
