Note -
The rack mount kit contains two types of cable support: Type-1 and Type-2. The
Type-2 cable support is an integrated unit consisting of the parts indicated by numbers 2 to 5
in Figure 3-35. Steps 7 and 11 in the mounting procedure vary depending on the shape of the
cable
support. Attach the support according to the corresponding steps.

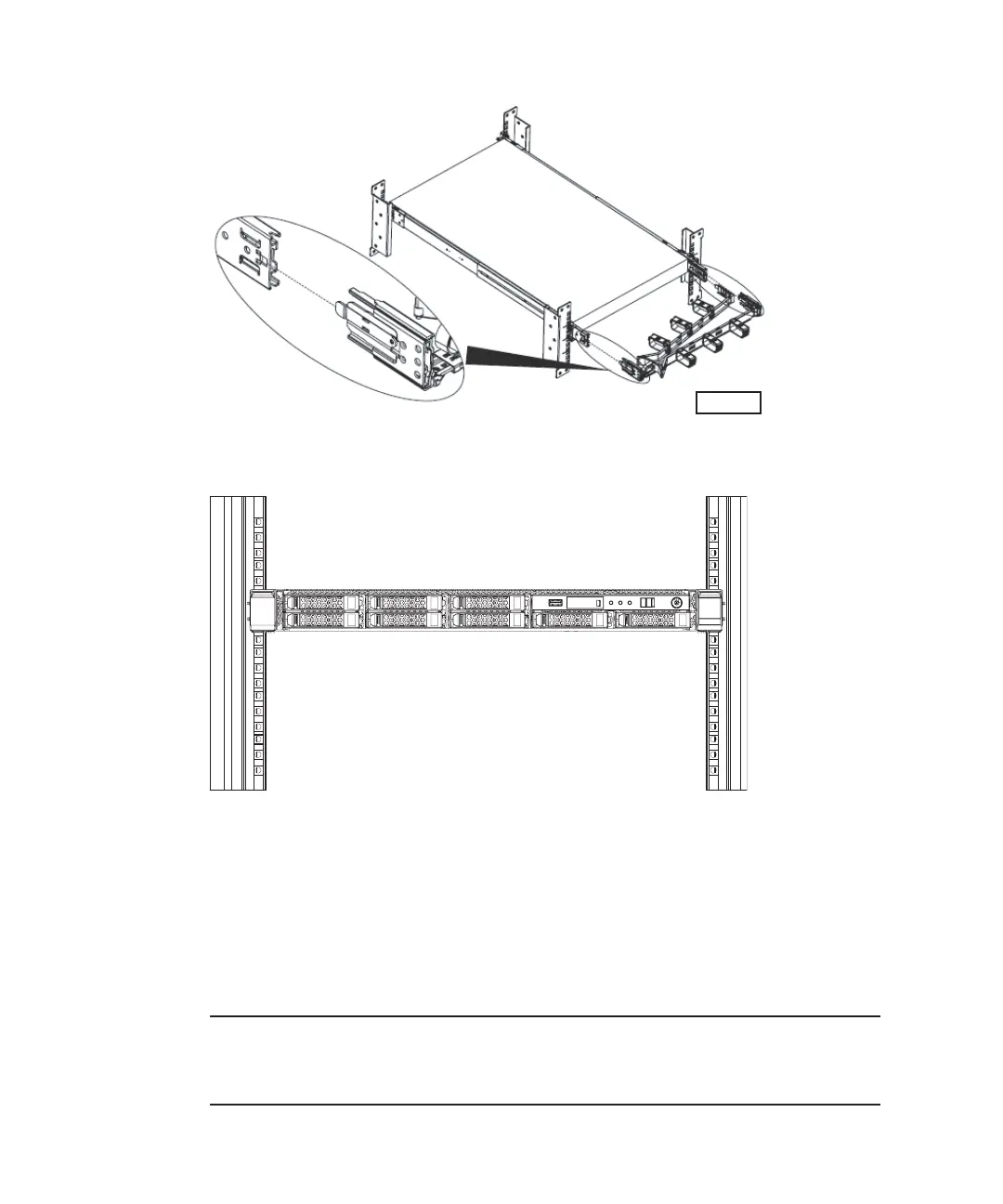

Figure 3-33
Attaching the left side of the CMA
Figure 3-34
Completed SPARC M10-1 configuration
3.4.2 Mounting the SPARC M10-4/SPARC M10-4S in a
rack
1.
Confirm that the rack mount kit supplied with the SPARC M10-4 or SPARC
M10-4S is complete.
