Fujitsu M10 User Manual

BB15
BB14
BB13
BB12
XB83
XB82
BB11
BB10
BB09
BB08
BB07
BB06
BB05
BB04
XB81
XB80
BB03
BB02
BB01
BB00
Expansion rack 2 Expansion rack 1
REAR

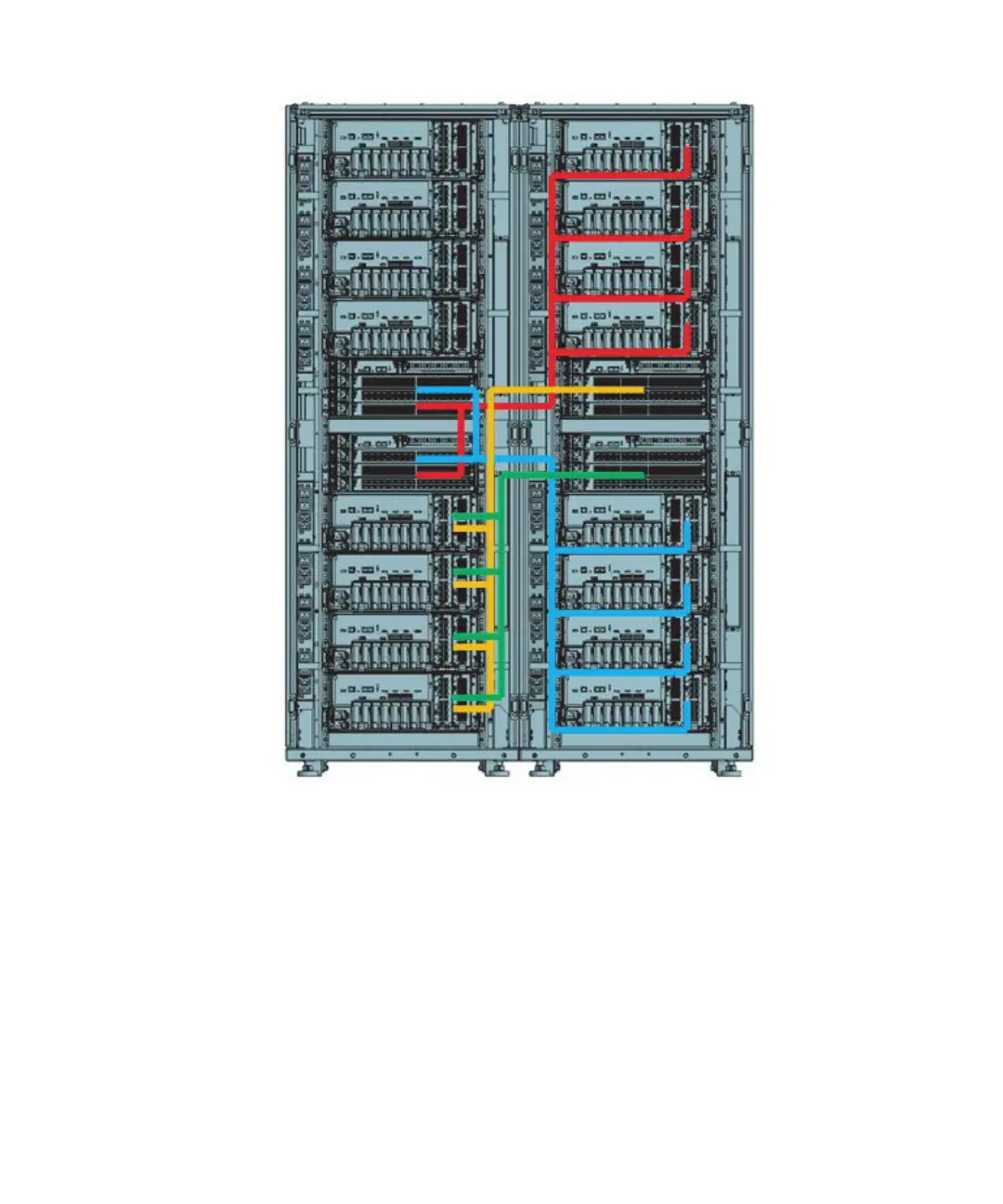

Figure 4-15
Cable laying diagram
3.
Connect the cros sbar cables to crossbar boxes.
The crossbar cables are laid in a bundle for each chassis. Connect cables without
changing how they are laid.
Connect the cables such that the port indications on each chassis match the labels
on the cables. There are two ports
with the same port number. Each port on the
chassis is color-coded. Connect the port to the corresponding port of the same
color.
Hold the connector of the crossbar cable (optical), and insert it straight into the
opening. Do not hold the cable when inserting it.
Fujitsu M10/SPARC M10 Systems Installation Guide
･
July 2015156
