Remarks
-
Lay
the
cables
so
that
any
interface
cables
other
than
crossbar
cables
are
on
the
inside
side
of
the
rack,
i.e.,
farther
inside
than
the
crossbar
cables.

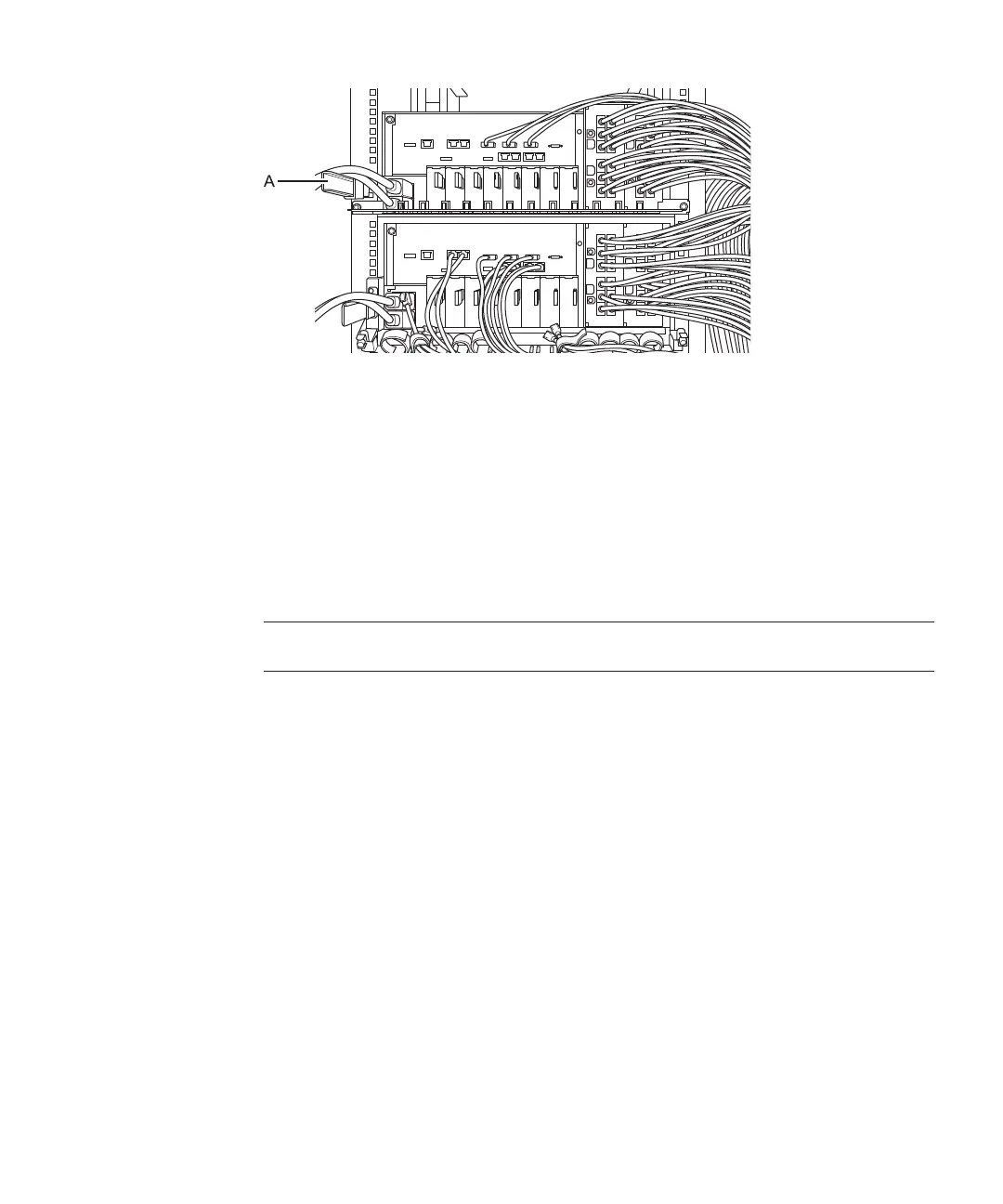

Figure
5-14
　　
Handling
of
power
cords
2.
First,
store
any
interface
cables
other
than
cross bar
cables
(electrical).
Then,
store
the
crossbar
cables
(elect ri cal).
a.
Store
the
LAN
cables
and
I/O
cables
connected
as
described
in
Chapter
5
in
an
empty
space
at
the
right
side
as
viewed
from
the
rear
of
the
rack.
b.
Store
the
XSCF
cable
connected
as
described
in
Chapter
4
in
an
empty
space
at
the
right
side
as
viewed
from
the
rear
of
the
rack.
c.
Store
the
crossbar
cables
connected
as
described
in
Chapter
4
in
an
empty
space
on
the
right
side,
as
viewed
from
the
rear
of
the
rack.
　
Cables
fit
neatly
when
stored
in
units
of
four
connected
cables.
Chapter
5
　
Connecting
Cables
to
the
Chassis 173
