Table B-3
Crossbar cable correspondence table (continued)
Connection
order
Connector 1 Connector 2 Remarks
BB00-XBU1-1R (light blue) BB02-XBU1-1R (light blue)
BB00-XBU1-1R (black) BB02-XBU1-1R (black)
3 BB01-XBU1-2L (pink) BB02-XBU1-2L (pink) BB#01 - BB#02
BB01-XBU1-2L (black) BB02-XBU1-2L (black)
BB01-XBU1-2R (light blue) BB02-XBU1-2R (light blue)
BB01-XBU1-2R (black) BB02-XBU1-2R (black)
4 BB00-XBU0-0L (pink) BB01-XBU0-0L (pink) BB#00 - BB#01
BB00-XBU0-0L (black) BB01-XBU0-0L (black)
BB00-XBU0-0R (light blue) BB01-XBU0-0R (light blue)
BB00-XBU0-0R (black) BB01-XBU0-0R (black)
5 BB00-XBU0-1L (pink) BB02-XBU0-1L (pink) BB#00 - BB#02
BB00-XBU0-1L (black) BB02-XBU0-1L (black)
BB00-XBU0-1R (light blue) BB02-XBU0-1R (light blue)
BB00-XBU0-1R (black) BB02-XBU0-1R (black)
6 BB01-XBU0-2L (pink) BB02-XBU0-2L (pink) BB#01 - BB#02
BB01-XBU0-2L (black) BB02-XBU0-2L (black)
BB01-XBU0-2R (light blue) BB02-XBU0-2R (light blue)
BB01-XBU0-2R (black) BB02-XBU0-2R (black)
#0 #1 #2
#0 #1 #2
#0 #1 #2
BB#00 DUAL
BB#01 DUAL
BB#02 DUAL
Table B-4
XSCF cable correspondence table
Connected chassis Connector 1 Connector 2
BB#00 - BB#01 BB00-DUAL BB01-DUAL
BB00-XSCF0 BB01-XSCF0
BB#00 - BB#02 BB00-XSCF1 BB02-XSCF0

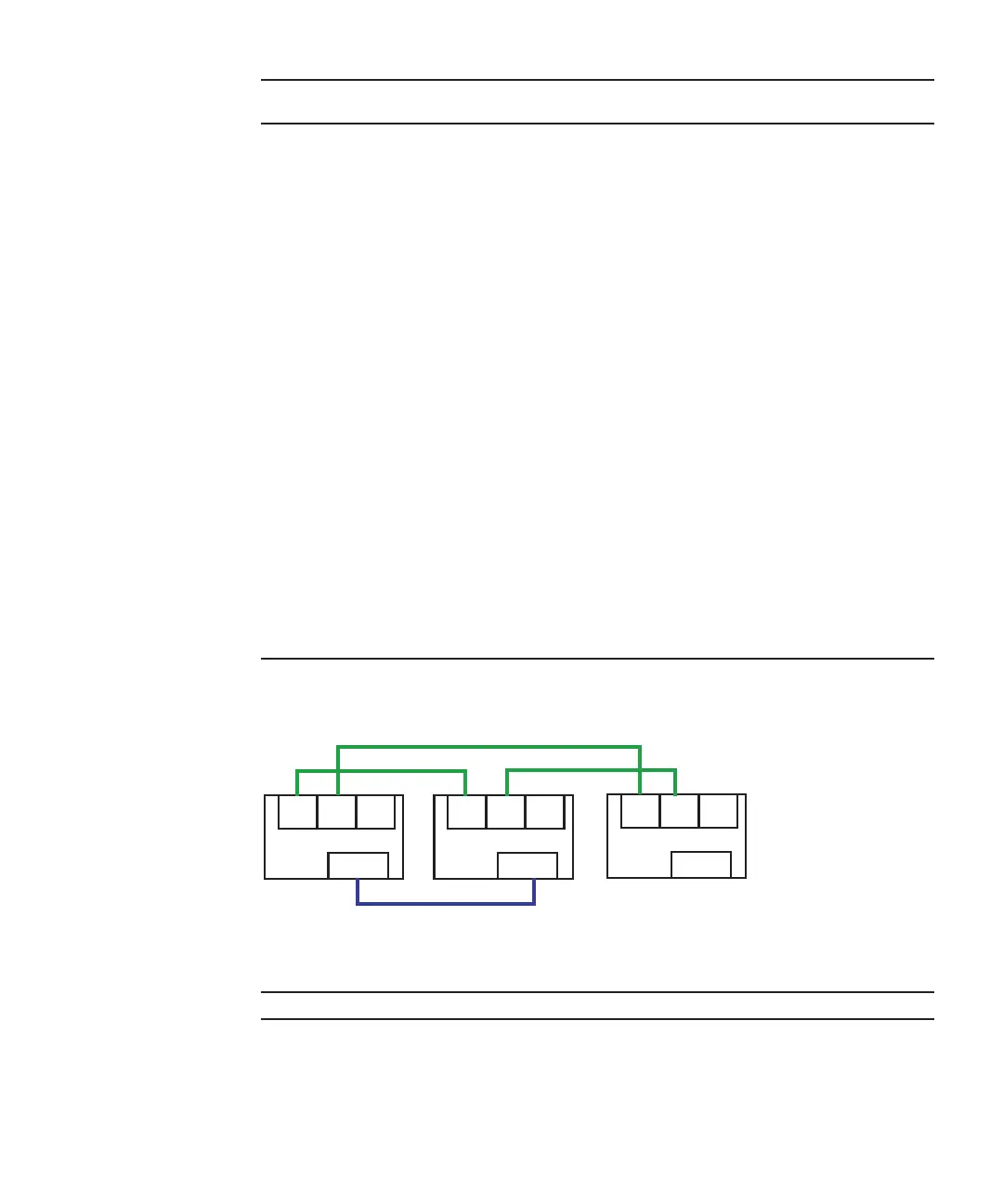

Figure B-4
XSCF cable connection diagram
Appendix B Cable Connection Information on Building Block Configurations 327
