Fujitsu M10 User Manual

#0 #1 #2
#0 #1 #2
#0 #1 #2
#0 #1 #2
#0 #1 #2
#0 #1 #2
#0 #1 #2
#0 #1 #2
BB#00
BB#04
XBBOX#81
XBBOX#80
BB#05
BB#06 BB#07
BB#01
BB#02
BB#03
#0 #1 #2 #3 #4
#5
#6
#7 #8 #9
#10 #11 #12 #13
#14
#15
#16
#17
#18
DUAL
#0 #1 #2 #3 #4
#5
#6
#7 #8 #9
#10 #11 #12 #13
#14
#15
#16
#17
#18
DUAL
XSCF cable correspondence table
Connected chassis Connector 1 Connector 2
XBBOX#80 - XBBOX#81 XB80-DUAL XB81-DUAL
BB#00 - XBBOX#80 BB00-XSCF0 XB80-XSCF0
BB#01 - XBBOX#80 BB01-XSCF0 XB80-XSCF1
BB#02 - XBBOX#80 BB02-XSCF0 XB80-XSCF2
BB#03 - XBBOX#80 BB03-XSCF0 XB80-XSCF3
BB#04 - XBBOX#80 BB04-XSCF0 XB80-XSCF4
BB#05 - XBBOX#80 BB05-XSCF0 XB80-XSCF5
BB#06 - XBBOX#80 BB06-XSCF0 XB80-XSCF6
BB#07 - XBBOX#80 BB07-XSCF0 XB80-XSCF7
BB#00 - XBBOX#81 BB00-XSCF1 XB81-XSCF0
BB#01 - XBBOX#81 BB01-XSCF1 XB81-XSCF1
BB#02 - XBBOX#81 BB02-XSCF1 XB81-XSCF2
BB#03 - XBBOX#81 BB03-XSCF1 XB81-XSCF3
BB#04 - XBBOX#81 BB04-XSCF1 XB81-XSCF4
BB#05 - XBBOX#81 BB05-XSCF1 XB81-XSCF5
BB#06 - XBBOX#81 BB06-XSCF1 XB81-XSCF6
BB#07 - XBBOX#81 BB07-XSCF1 XB81-XSCF7
XBBOX#80 - XBBOX#81 XB80-XSCF16 XB81-XSCF16

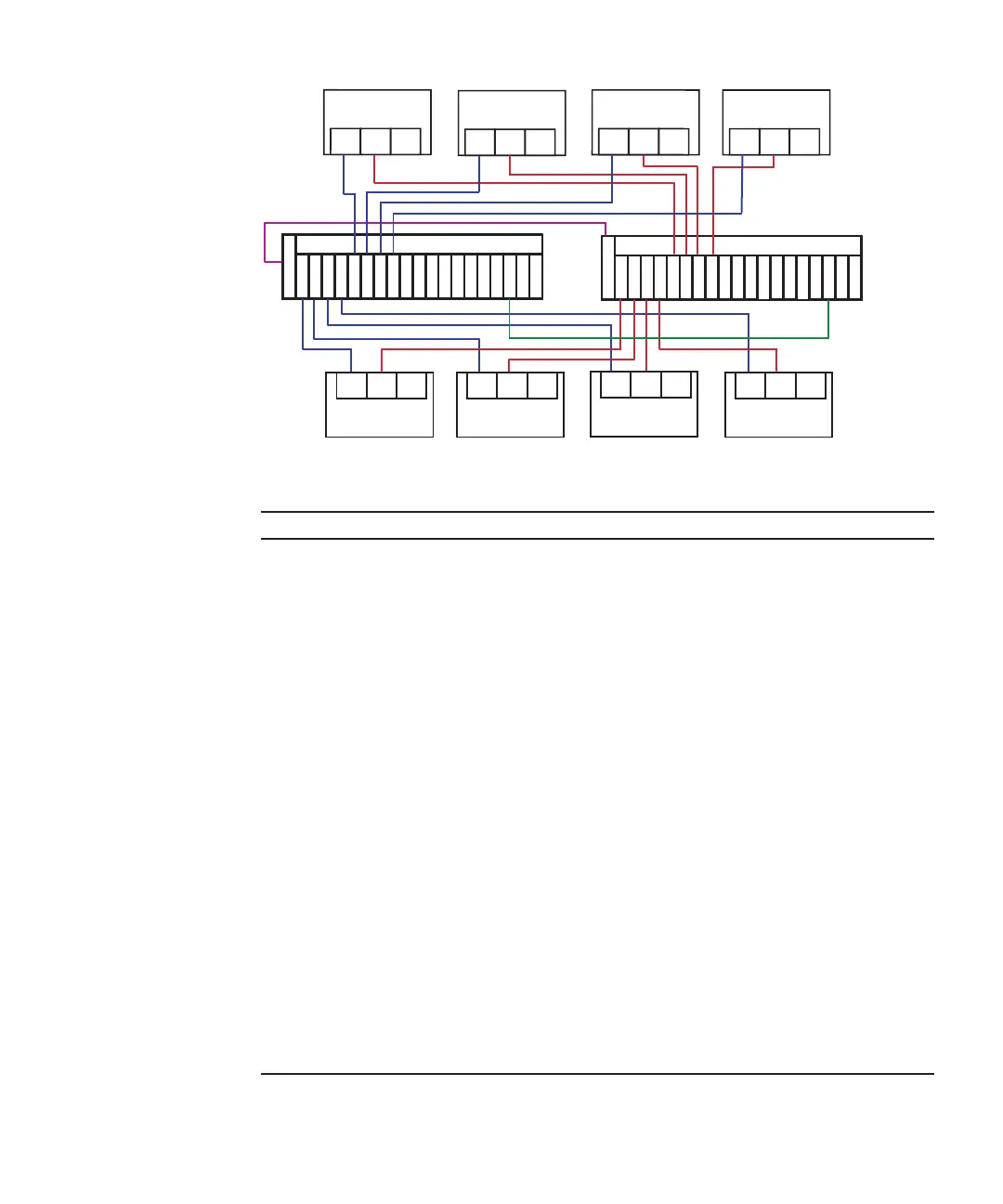

Figure B-8
XSCF cable connection diagram
Appendix B Cable Connection Information on Building Block Configurations 337
