Fujitsu M10 - Page 58

PSU#0 PSU#1
AC power
CB
CB
CB: Circuit breaker
AC power
CB
CB
CB: Circuit breaker
A
C IN#1
A
C IN#0
Figure 2-15

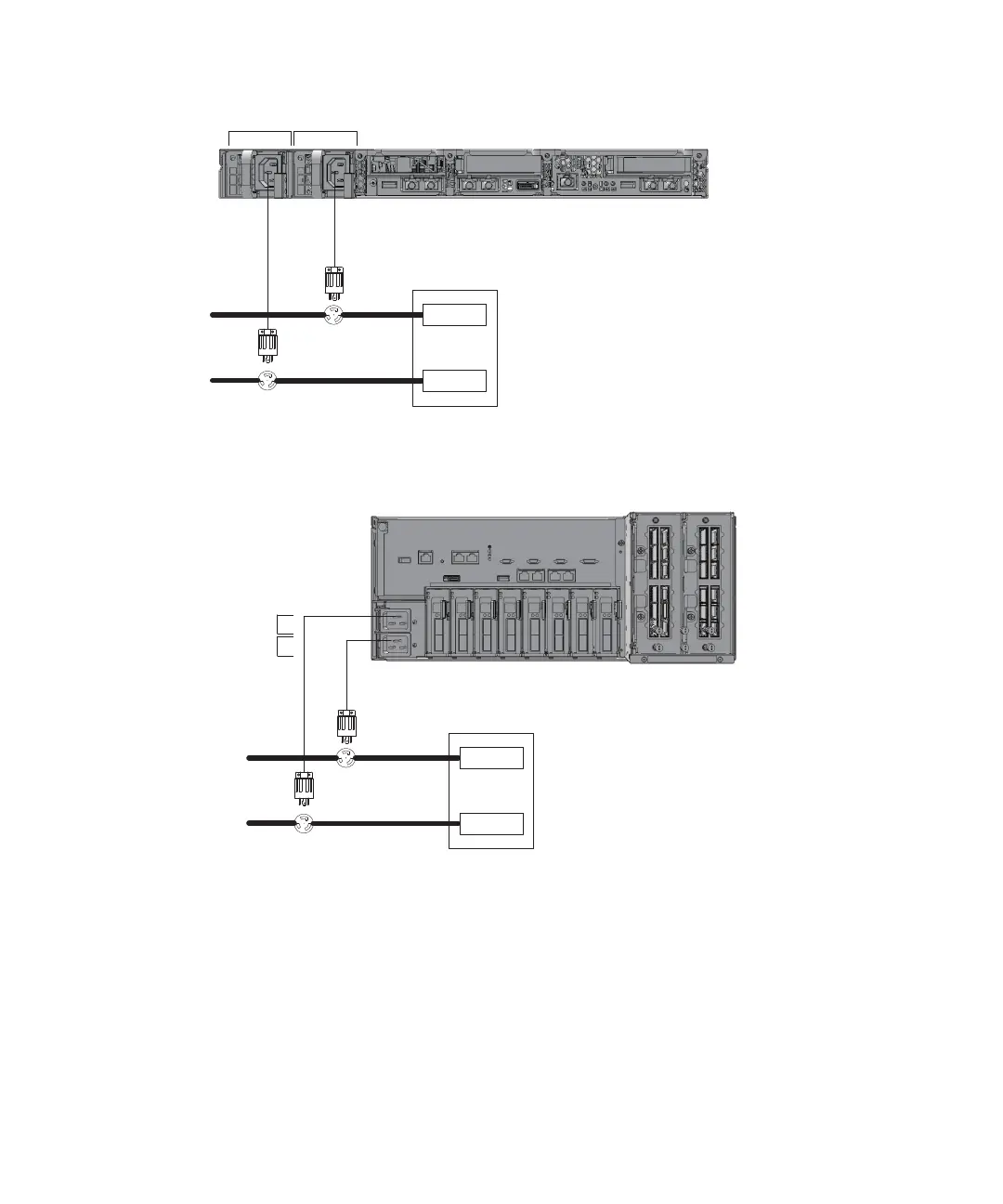

Power supply system with redundant power supply connections
(SPARC M10-1)
Figure 2-16
Power supply system with redundant power supply connections
(SPARC M10-4/M10-4S)
Fujitsu M10/SPARC M10 Systems Installation Guide
･
July 201544
