Table 3-9
Reference: List of connecting kit components
Number
in figure
Name Quantity Remarks
1Lower connecting bracket 2
2 Upper connecting bracket 2
3Horizontal connecting packing 1 1 Length: 880 mm (34.6 in.)
4 Vertical connecting packing 1 2 Length: 1,000 mm (39.4 in.)
5 Vertical connecting packing 2 2 Length: 860 mm (33.9 in.)
6M6 core spring nut 8 For connecting lower part
7M6 flat-head screw 8 For connecting lower part
8M12 hexagon head bolt 4 For connecting upper part
(1)
(6)
(2)
(7)
(3)
(4)
(5)
(8)

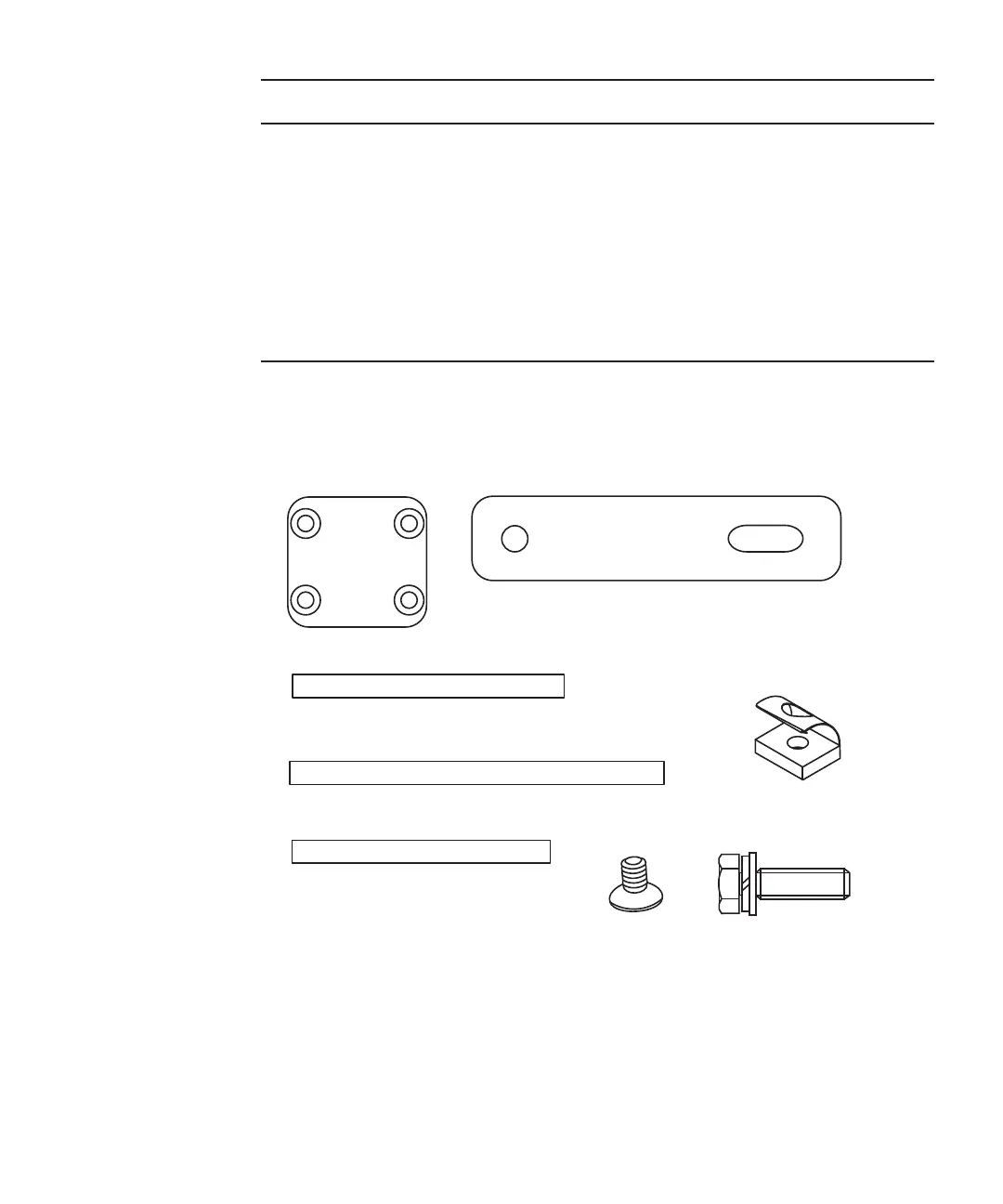

Figure 3-2
Connecting kit components
Chapter 3 Installing the System 75
