Hardware Installation Installing/Removing the Server into/from the Rac
4.3.6 Installing the Server
Ê Position the prepared server (see section “Preparing the Server” on
page 31) into the telescopic rails, push the locking springs (1) and insert the
server until the telescopic bars click into place (2).

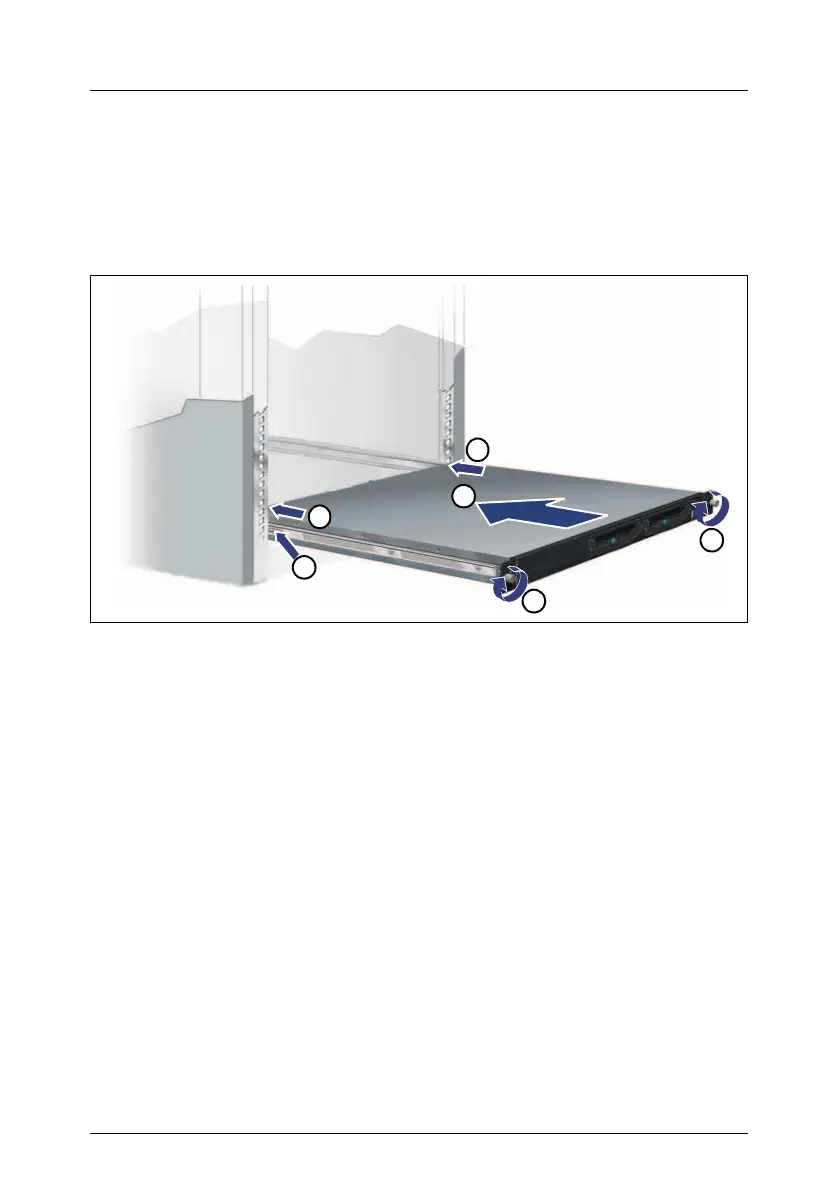

Figure 6: Fitting the Server in the Rack
Ê Push the server completely into the rack (3).
I After you have inserted the server, you should pull out the server
again completely and insert it again into the rack. Thus it is
guaranteed that the server runs cleanly in the telescopic rails.
Ê Fasten the server (front panel) using two knurled screws (4).
The server is removed in the reverse order.
V CAUTION!
There is no cable management for the server in the rack!
Before the server is removed, all cables must be disconnected from their
sockets. Before you remove the server, please observe the hints in
section “Installing/Removing the Server into/from the Rack” on page 27.
