Hot-plug Hard Disk Drives Installing/Removing a HDD/Dummy Module
8.2 Installing/Removing a HDD/Dummy Module
Removing the dummy module
Free slots are provided with a dummy module (an empty carrier) which must be
removed before installing an additional HDD module.

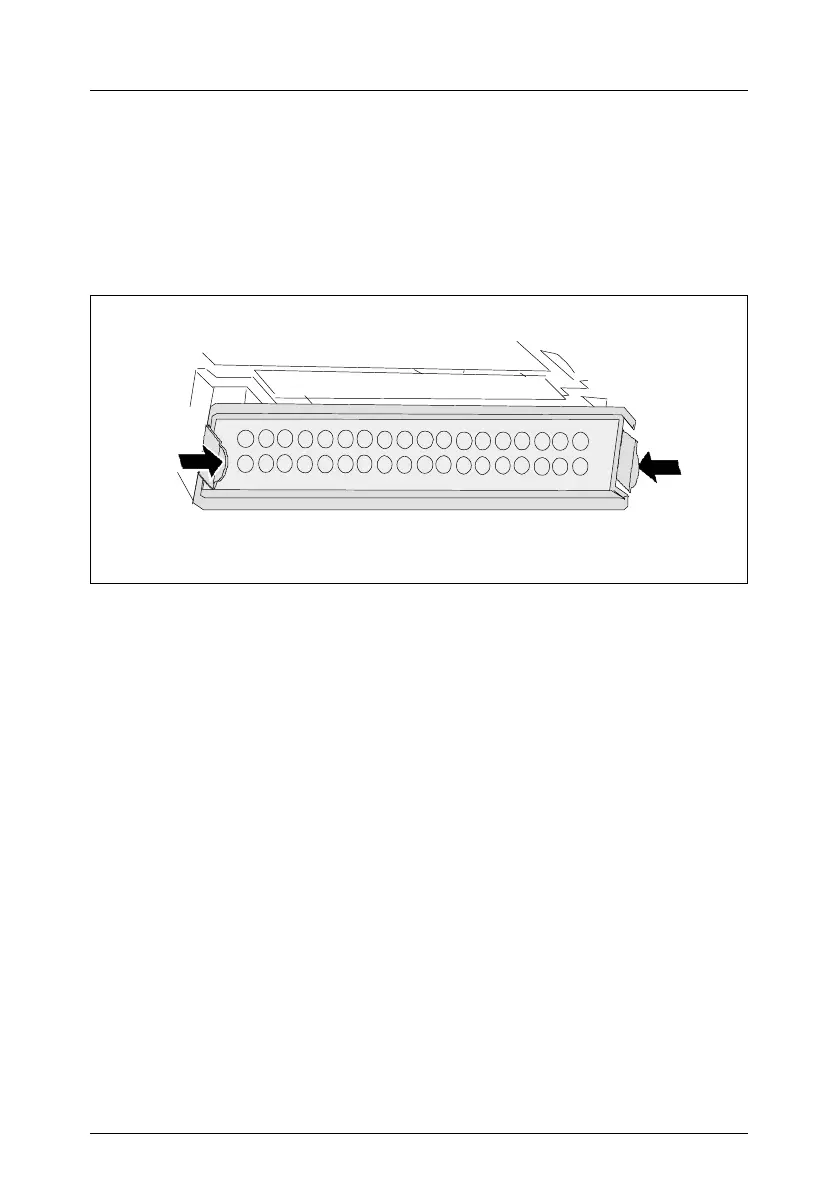

Figure 11: Removing the dummy module (hot-plug variant only)
Ê Press both tabs on the dummy module together (see figure 11) until the
locking mechanism disengages, and remove the dummy module from the
slot.
Installation of the dummy module occurs in reverse order.
V CAUTION!
Keep the dummy module for future use. If the HDD module is removed
again and is not replaced with a new module, then the dummy module
must be reinstalled due to cooling, the applicable EMC (electromagnetic
compatibility) regulations and fire protection.
