36 U41615-J-Z156-1-76
Connecting Devices to the Server Hardware Installation
4.4 Connecting Devices to the Server
The ports for external devices are on the front and on the rear of the server.
Which additional ports are available on your server depends on the PCI boards
installed.
The standard ports (figure 7) on the rear are marked with symbols, and some
are color-coded:

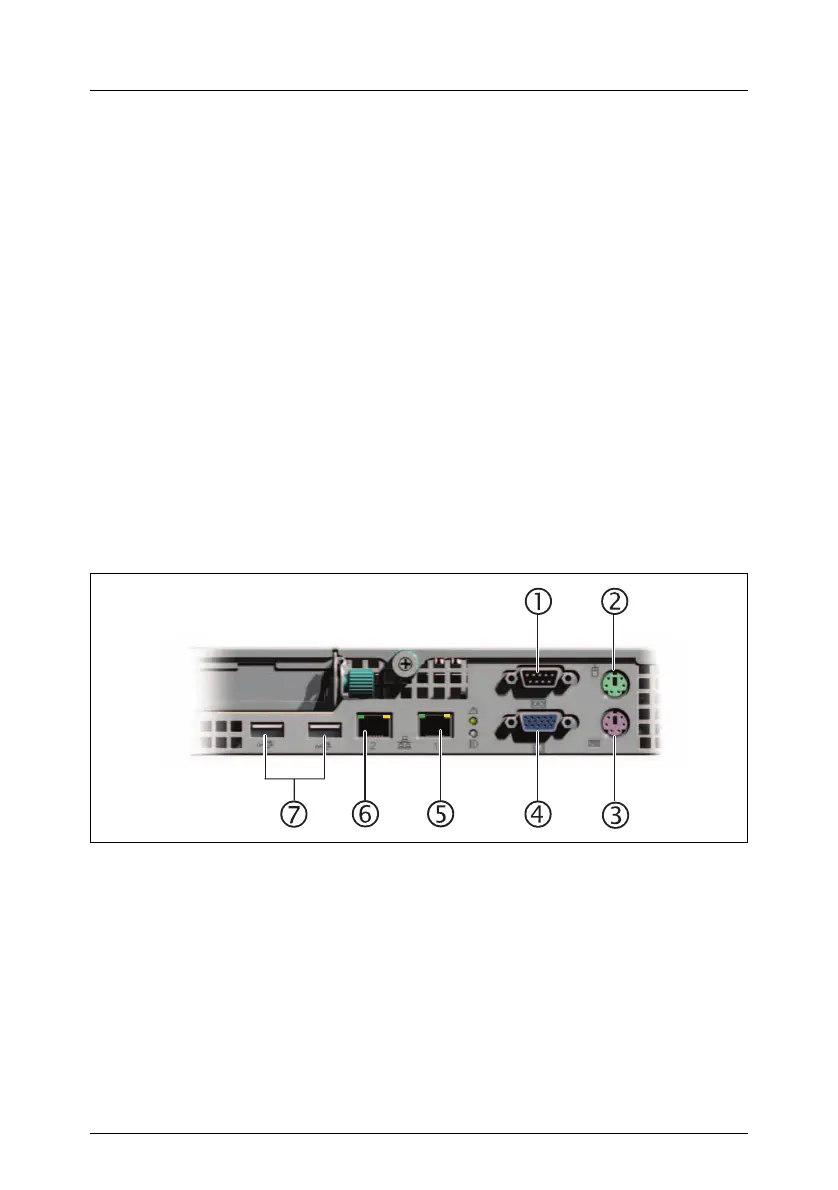

Figure 7: Ports on the rear
There is an additional USB port on the right front side of the server.
I The COM1 port (1) is disabled by default. This setting may be changed
in the BIOS Setup.
I Some of the devices that you connect require special driver software
(see the documentation for the connected device).
Ê Connect the data cables to the server and peripherals.
1 Serial port (COM1, disabled
by default)
4 Monitor port (VGA) (blue)
2 Mouse port (PS/2) (green) 5 LAN port 1 incl.
Server Management LAN (SM LAN)
(see “Server Management LAN (SM LAN)”
on page 8)
3 Keyboard port (PS/2) (purple) 6 LAN port 2
7 USB ports 1 and 2
