Operating and Indicator Elements Preparation for Use/Operation
5.1.2 The Rear

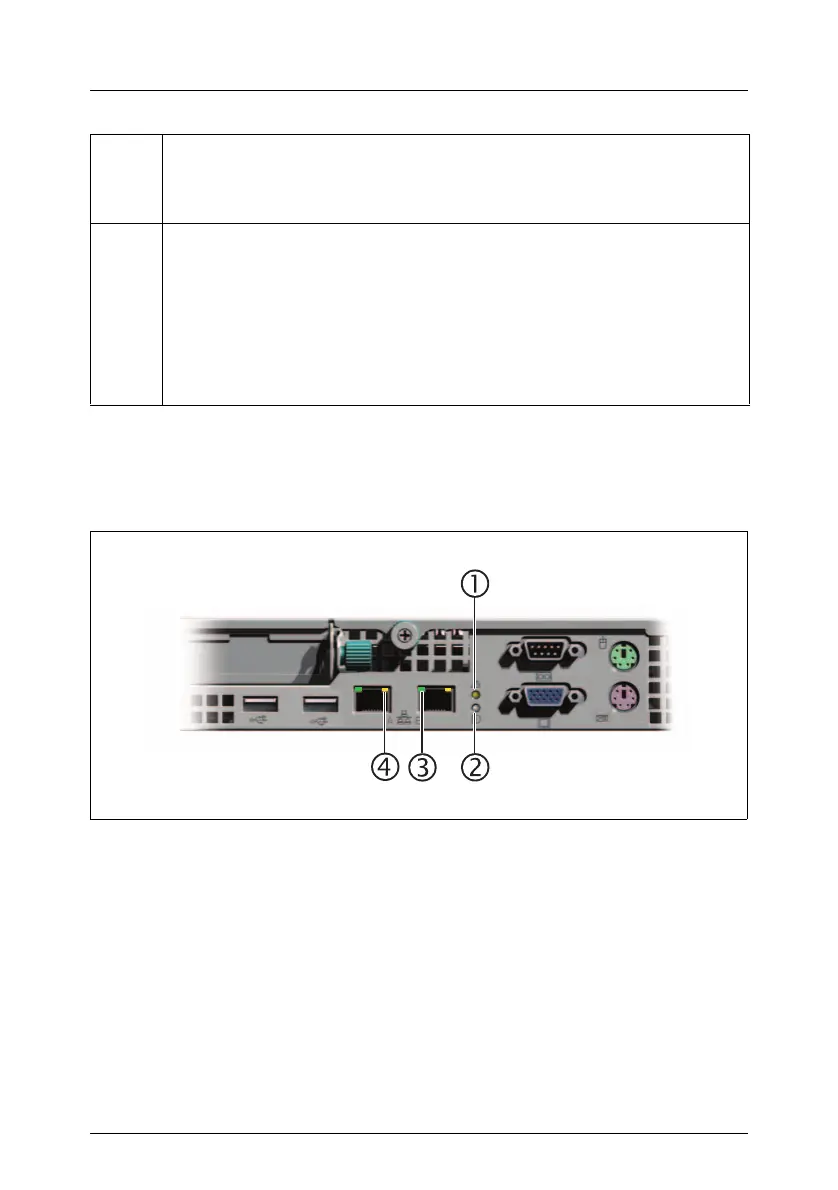

Figure 10: Indicators on the rear
LED
green
HDD BUSY
– lights: HDD in active phase
– does not light: HDD inactive
LED
amber
HDD FAULT
– does not light: No HDD Error
– lights: HDD Faulty or Rebuild Stopped (drive defective/needs
replacing, a rebuild process was stopped or the HDD module is
not correctly inserted)
– slow flash: HDD Rebuild (the data is restored by the RAID
controller after changing a hard disk drive)
Table 4: Meaning of hot-plug HDD module LED indicators
