Preparation for Use/Operation Operating and Indicator Elements
Hard disk drive control indicators

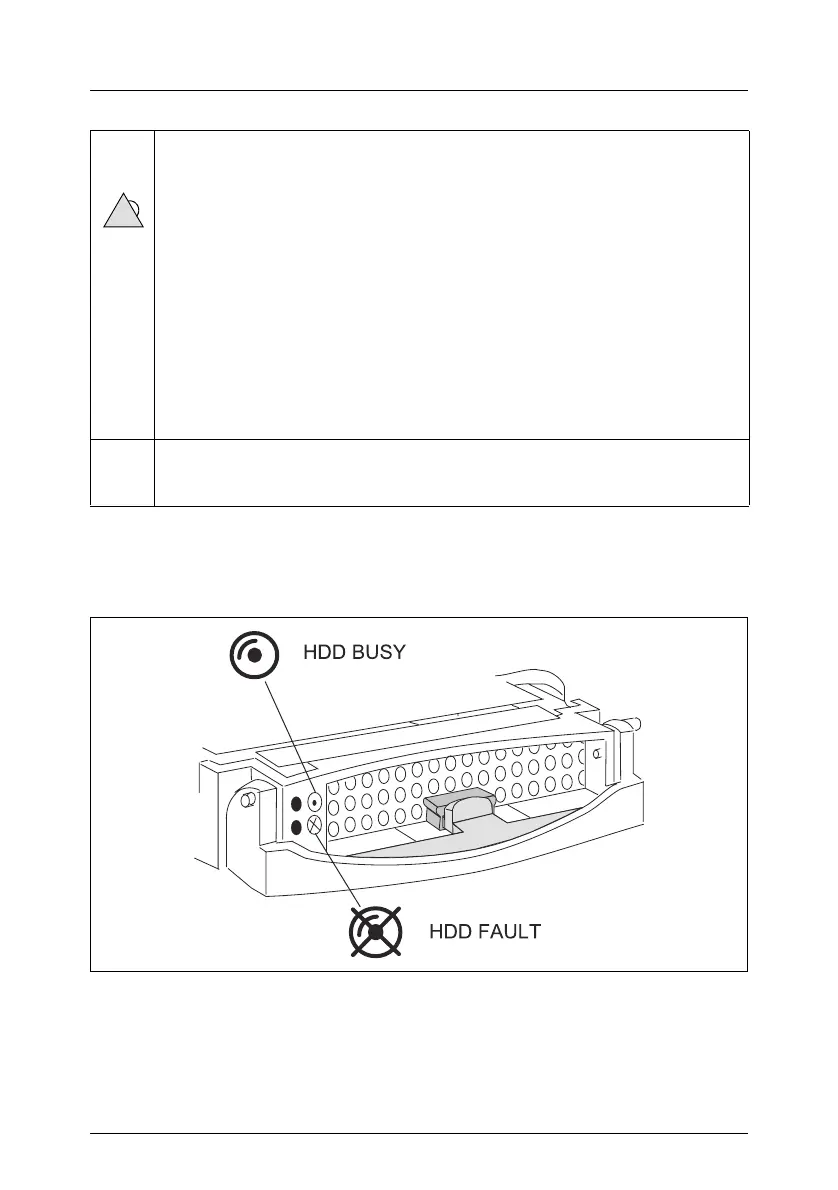

Figure 9: Hot-plug HDD module: indicators
11 Global Error indicator (amber)
Does not light when the system is ok. No service incident or critical
event has occurred.
Flashes amber when a critical event has occurred. Users can check
BIOS Setup, systemlog and eventlog or via ServerView for event details.
The indicator also flashes in standby mode.
Lights amber when a prefailure event has been recognized. Users can
check systemlog and eventlog or via ServerView for event details. The
indicator also lights in standby mode.
If the event is still acute after a power failure, the indicator is activated
after the restart.
12 Floppy disk drive access indicator (green)
Lights up green when the storage medium is being accessed.
Table 3: Indicators and operating elements on the front
!
