B Specifications for Internal Options
● For units set at 230 V (outside of the United States and Canada):
Use a cord set consisting of a minimum AWG according to the table above and a grounding type
attachment plug rated 15 A, 250 V. The cord set should have the appropriate safety approvals for the
country in which the equipment will be installed and should be marked HAR.
■ For the United Kingdom
Should the plug on the flexible cord not be of the type for your socket outlets, do not use an adapter but
remove the plug from the cord and discard. Carefully prepare the end of the supply cord and fit a suitable
plug.
The wires in this mains lead are colored in accordance with the following code:
• Green and Yellow: Earth
• Blue: Neutral
• Brown: Live
As the colors of the wires in the mains lead of this appliance may not correspond with the colored
markings identifying the terminals in your plug, proceed as follows.
• The wire which is colored Green and Yellow must be connected to the terminal in the plug which is
marked with the letter E or by the earth symbol or colored Green or Green and Yellow.
• The wire which is colored Blue must be connected to the terminal which is marked with the letter N
or colored Black.
• The wire which is colored Brown must be connected to the terminal which is marked with the letter L
or colored Red.

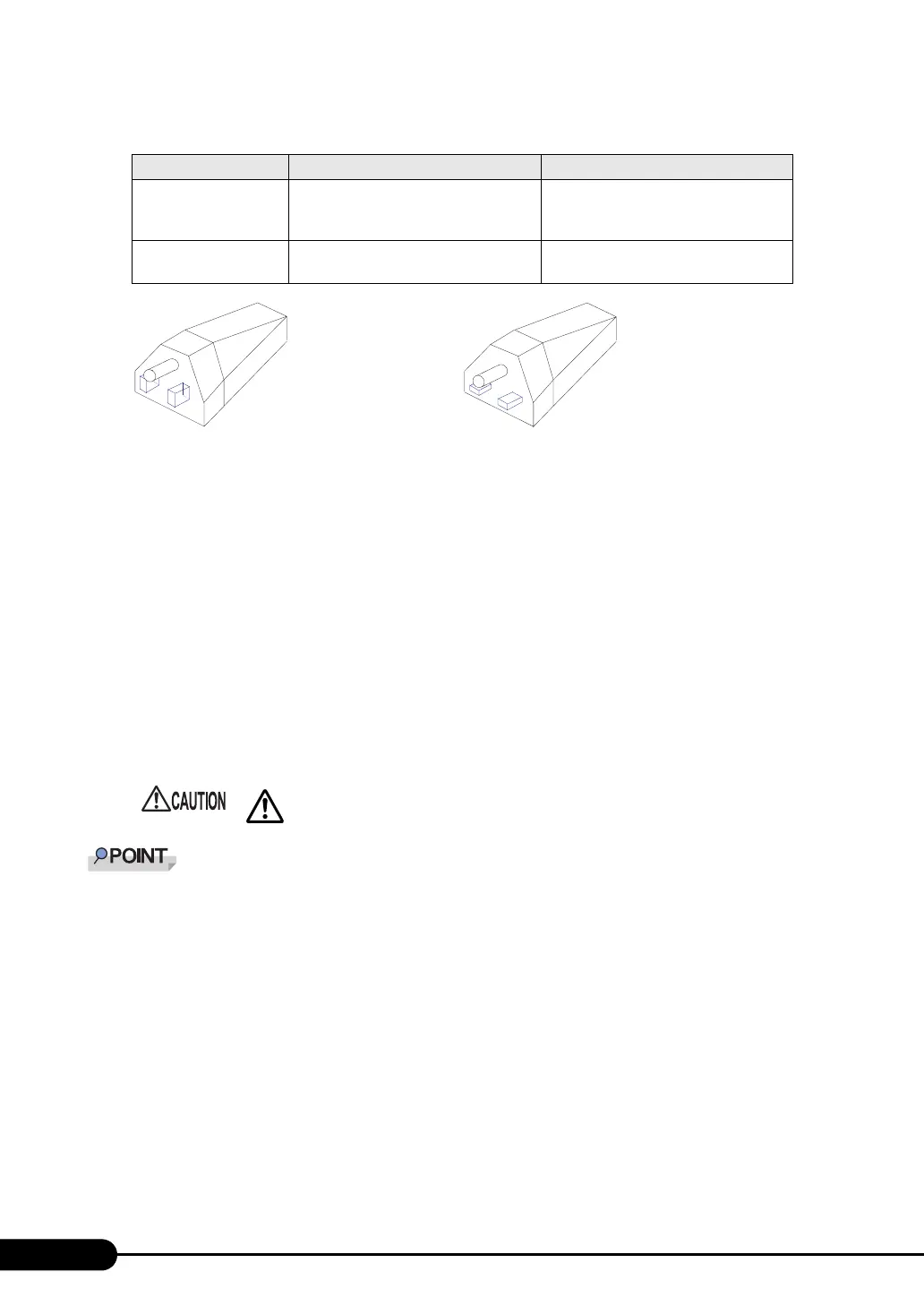

table: Selection Criteria for Power Cords Used in the United States and Canada
Cord Type Size of Conductors in Cord Maximum Current Rating of Unit
SJT 18 AWG
16 AWG
14 AWG
10 Amps
12 Amps
12 Amps
SVT 18 AWG
17 AWG
10 Amps
12 Amps
• Parallel
For units set at 115 V:
use a parallel blade, grounding type
attachment plug rated 15 A, 125 V.
•Tandem
For units set at 230 V:
use a tandem blade, grounding type
attachment plug rated 15 A, 250 V.
• This appliance must be earthed.
