Fujitsu Primergy RX100 S3 User Manual

209
PRIMERGY RX100 S3 User’s Guide
8
Configuring Hardware and Utilities

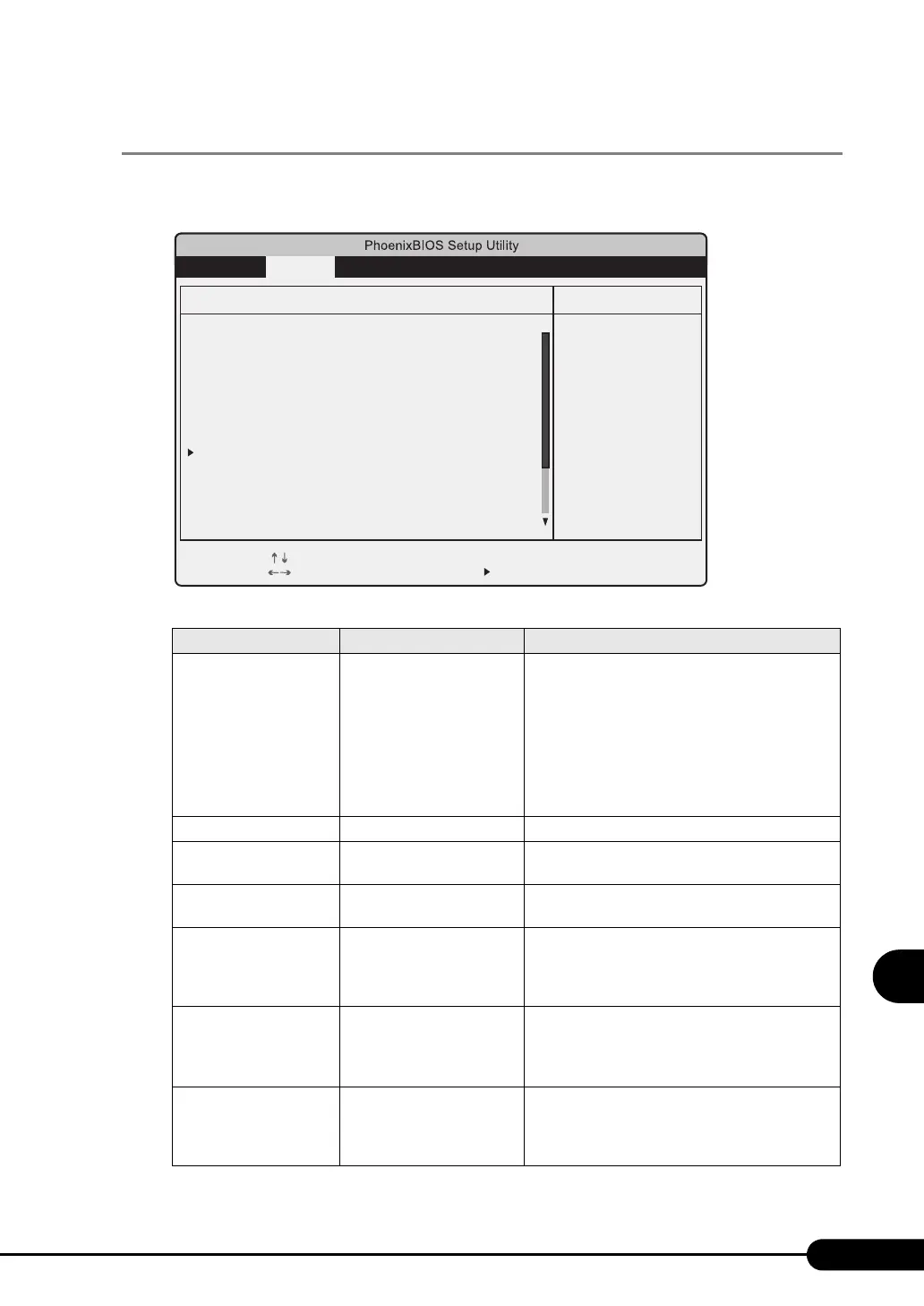

8.1.6 Peripheral Configuration Submenu
This submenu appears when selecting "Peripheral Configuration" from the advanced menu.
Use this submenu to set the serial port, parallel port, etc.
table: Items on the Peripheral Configuration Submenu
Item Setting Description
Serial 1 • Disabled
• Enabled
• Auto (Initial value)
Configures Serial Port 1.
You can set this item only when [Serial
Multiplexer] is set to [System].
Note:
 Set this item to [Enabled] when"
■ Console
Redirection Submenu" (pg.220) [Console
Redirection] is set to [Enabled] and [Media
Type] is set to [LAN].
Serial 1 Address 3F8h, IRQ 4 (Unchangeable) Configures I/O port address for Serial Port 1.
Serial Multiplexer • System (Initial value)
•BMC
Configures function of Serial Port.
USB Enable Ports • None
• All (Initial value)
Sets whether or not to use the USB port.
USB 2.0 Host Controller
• Disabled
• Enabled (Initial value)
Sets whether or not to enable the USB controller
(2.0 standard).
You can set this item only when [USB Enable Ports]
is set to [All].
USB BIOS Supported
Devices
Auto (Unchangeable)
Sets whether the USB device can be used on the OS
that does not support USB.
You can set this item only when [USB Enable Ports]
is set to [All].
USB Boot Delay Os (Unchangeable) Sets the delay time by the second for initializing
USB mass storage device during the POST.
You can set this item only when [USB BIOS
Supported Devices] is set to [None].
Item Specific Help
Select Item
Select Menu
Change Values
Select Sub-Menu
-/+
Enter
F1
Esc
Help
Exit
F9
F7
Setup Defaults
Previous Values
Advanced Security Server ExitMain
Configure serial port
using options:
[Disabled]
No configuration
[Enabled]
User configuration
[Auto]
BIOS or OS chooses
configuration
Peripheral Configuration
Serial 1:
Serial 1 Address:
Serial Multplexer:
USB Enable Ports:
USB 2.0 Host Controller:
USB BIOS Supported Devices:
USB Boot Delay:
ATA Controller Config
Mouse Controller:
[Auto]
[3F8h,IRQ 4]
[System]
[All]
[Enabled]
[Auto]
[0 s]
[Auto Detect]
