96
Chapter 3 OS Installation Using ServerStart
● Checking the DHCP Service
Perform the following check only when the PXE server performs the DHCP service.
1 On the PXE server, click [Start] → [Programs] → [Administrative Tools] →
[DHCP] to start up the DHCP administrative tool.

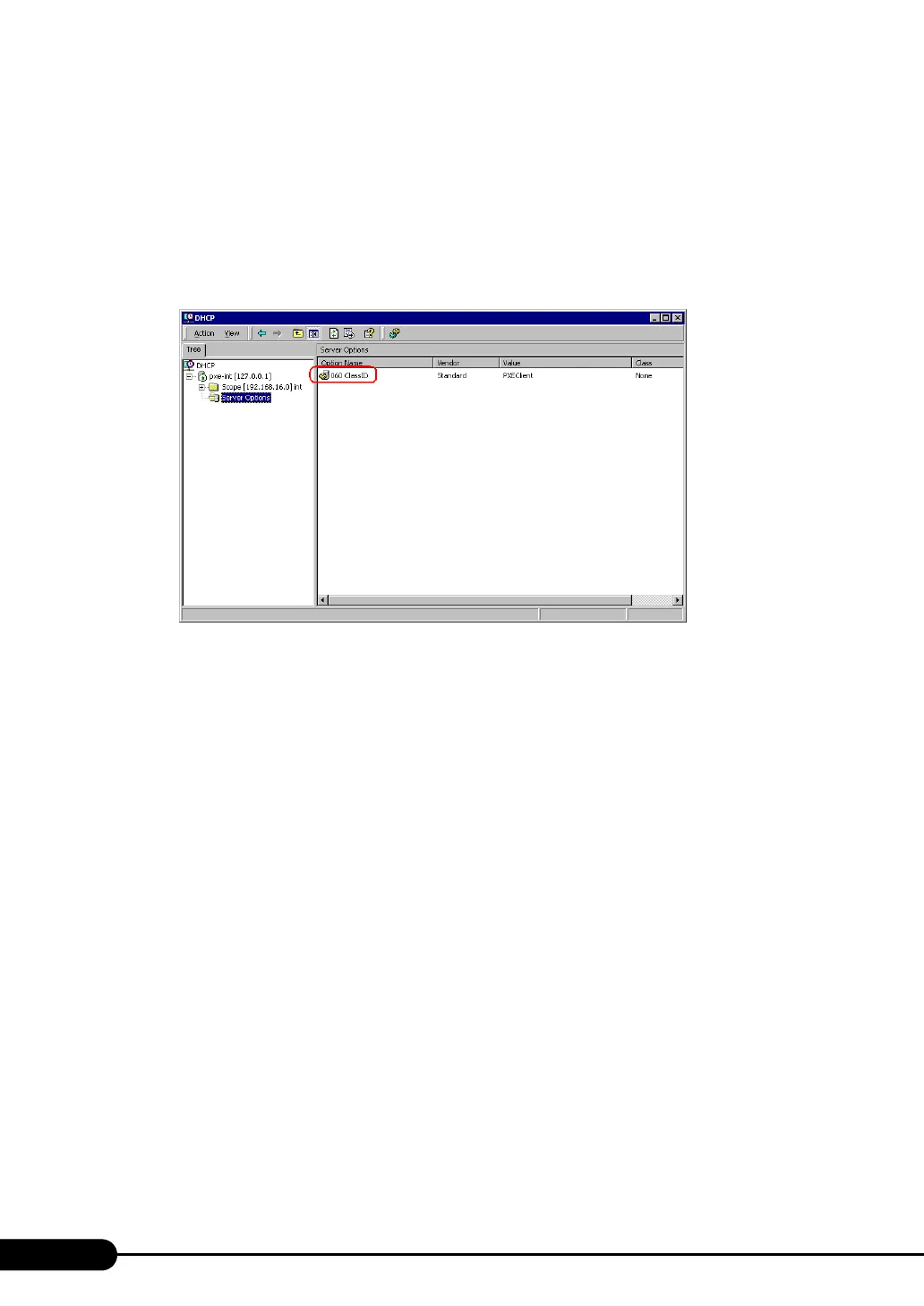

2 Click [Server Options] and check that the “060 ClassID” server option is added.
■ Setting TFTP
TFTP is an FTP service function that requires no authentication. In remote installation, the TFTP service
is used to distribute the boot image required for startup. For the TFTP path, set the appropriate access
rights for the Guest account to obtain the image via network startup (PXE).
1 Click [Start] → [Programs] → [Accessories] → [Windows Explorer] and move to
the TFTP path (the default is C:\Program Files\Fujitsu
Siemens\DeploymentService\tftp).
2 Right-click the TFTP folder and click [Properties].
To Next Page
