TX100 S2 Service Supplement 107
Replacement routines

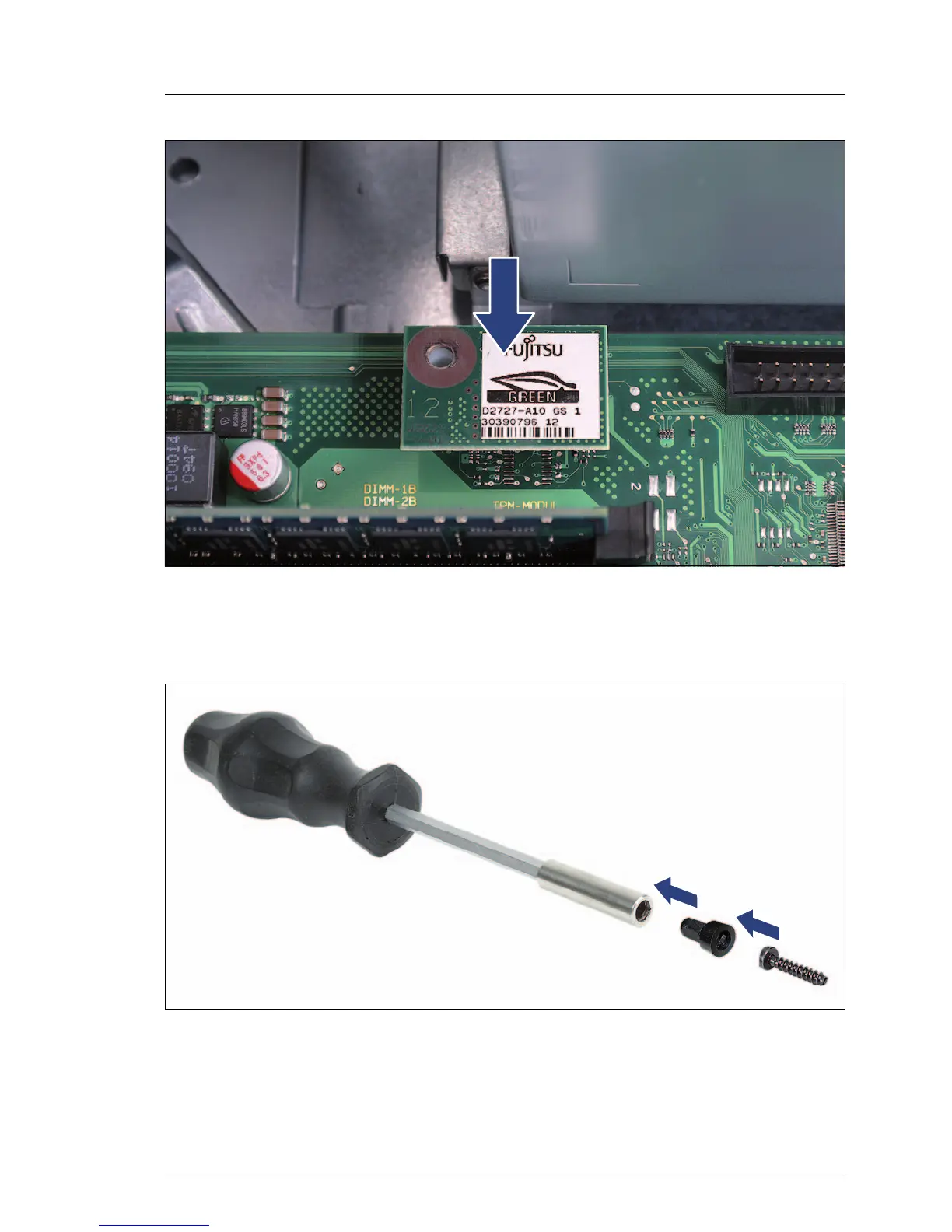

Figure 90: Mounting the TPM board
Ê Mount the new TPM board to the system board and the remaining TPM
spacer
.
Figure 91: TPM bit insert
Ê Attach the TPM bit insert provided with the spare kit S26361-F3552-L1 to a
bit screwdriver.
