Fujitsu PRIMERGY TX100 S2 - Page 108

108 Service Supplement TX100 S2
Replacement routines

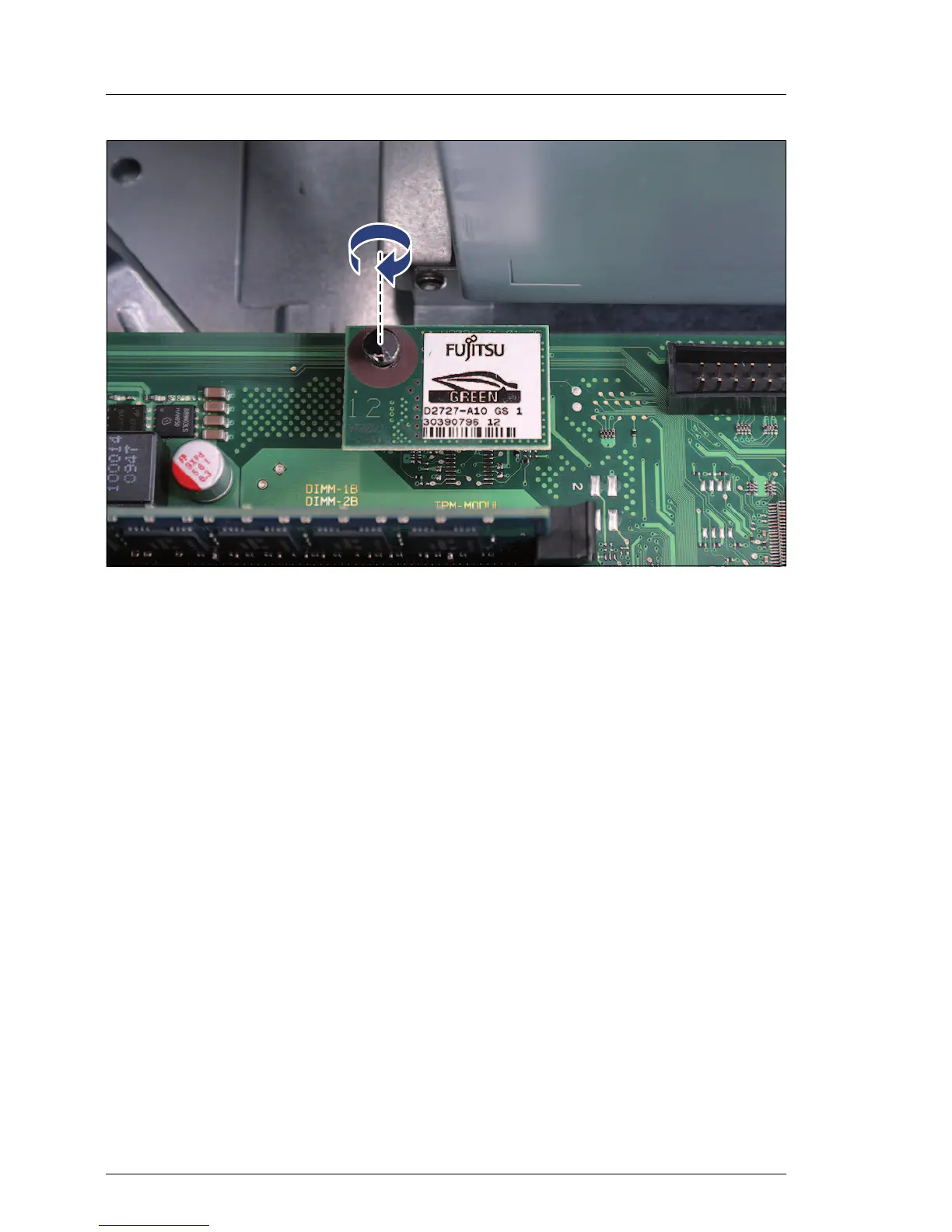

Figure 92: Securing the TPM board
Ê Secure the TPM board with the TPM screw (C26192-Y10-C176) using the
TPM bit insert.
V CAUTION!
Do not fasten the screw too firmly.
Ê Close the HDD cage as described in section 4.1.2.2 on page 27.
Ê Close the side cover as described in section 4.1.1.2 on page 24 and
reconnect the AC power cord.
