30 Service Supplement TX100 S2
Replacement routines

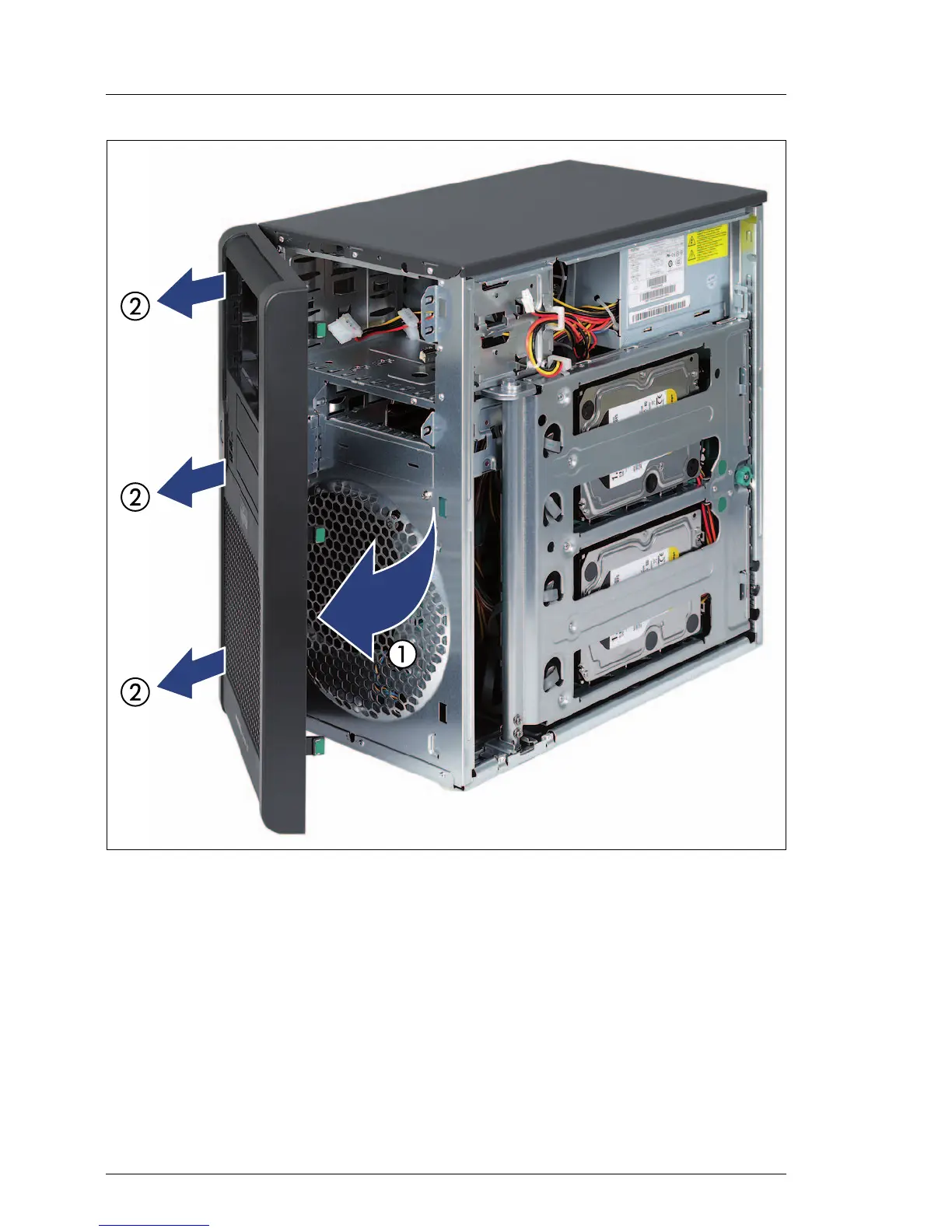

Figure 9: Removing the front bezel
Ê Carefully rotate open the front bezel (1).
Ê Carefully unhook the front bezel (2).
V Be careful not to strain the front panel cable!
Ê When fully removing the front bezel, carefully pull the front panel cable out
of the chassis and thread the system board connector through the recess in
the chassis front.
