TX100 S2 Service Supplement 73

Replacement routines

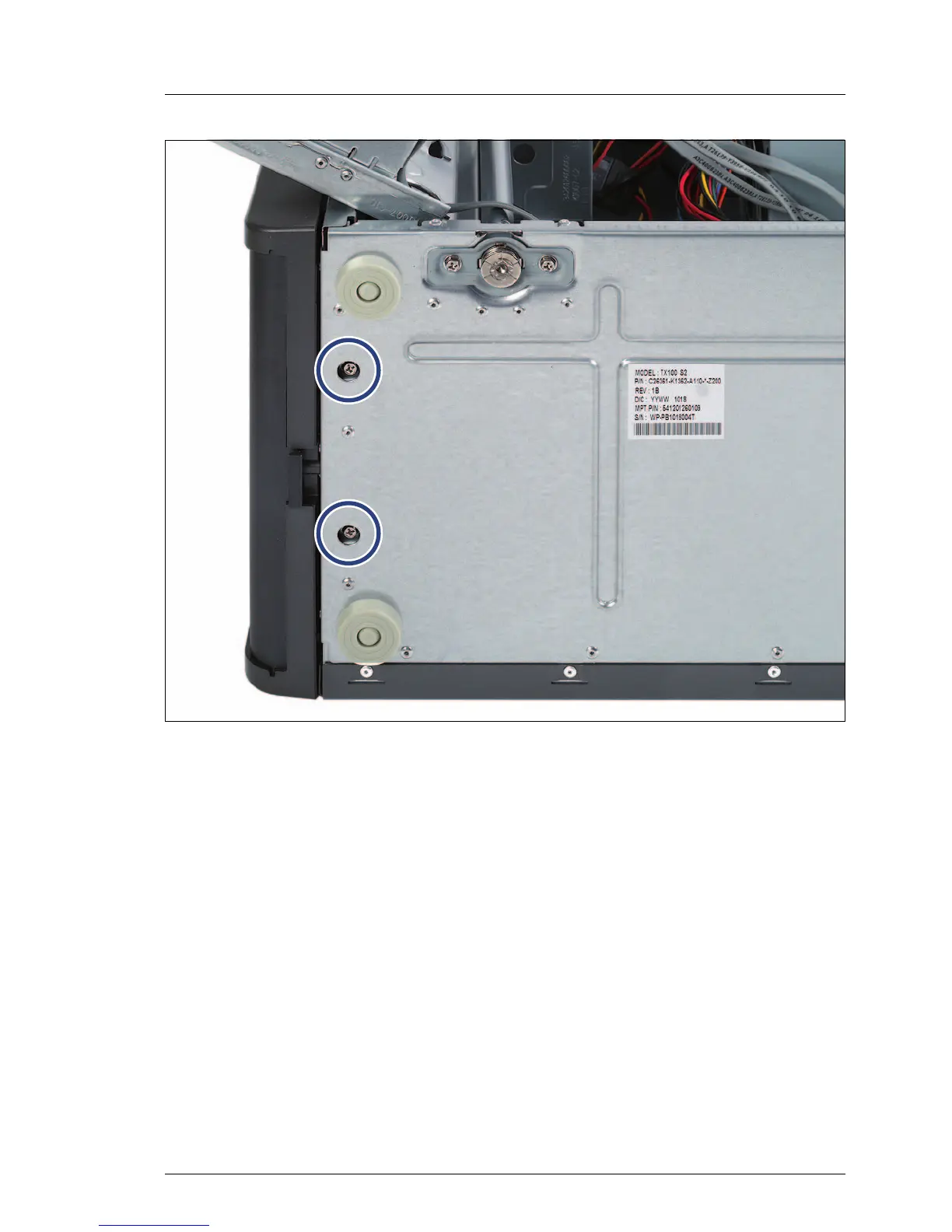

Figure 57: Detaching the front fan module (A)

Ê Remove two screws on the lower surface of the server (see circles).
