Fujitsu PRIMERGY TX100 S2 - Page 74

74 Service Supplement TX100 S2
Replacement routines

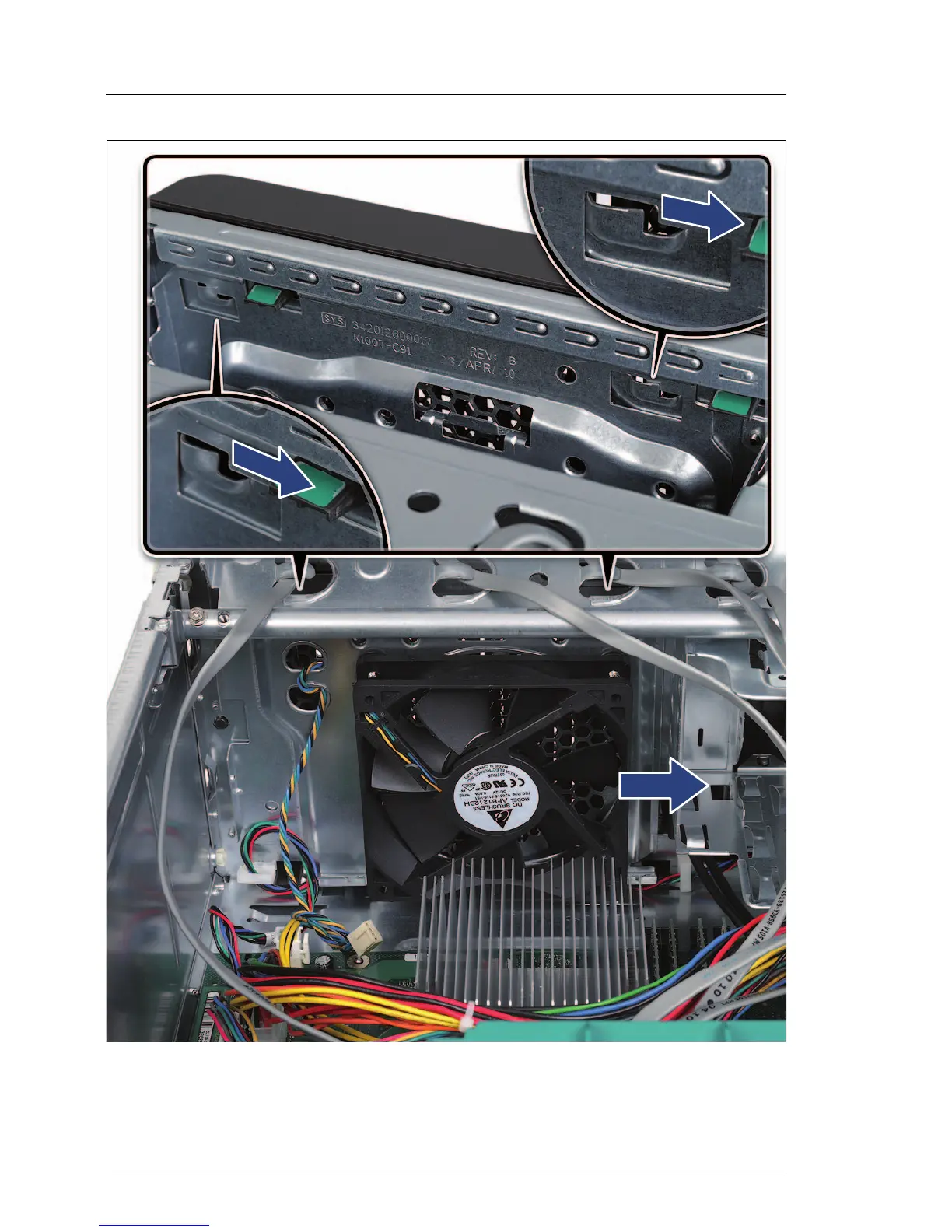

Figure 58: Detaching the front fan module (B)
Ê Slide the front fan module about 2 cm to the right to disengage the locking
tabs on the upper edge of the front chassis wall (see circles).
