98 Service Supplement TX100 S2
Replacement routines

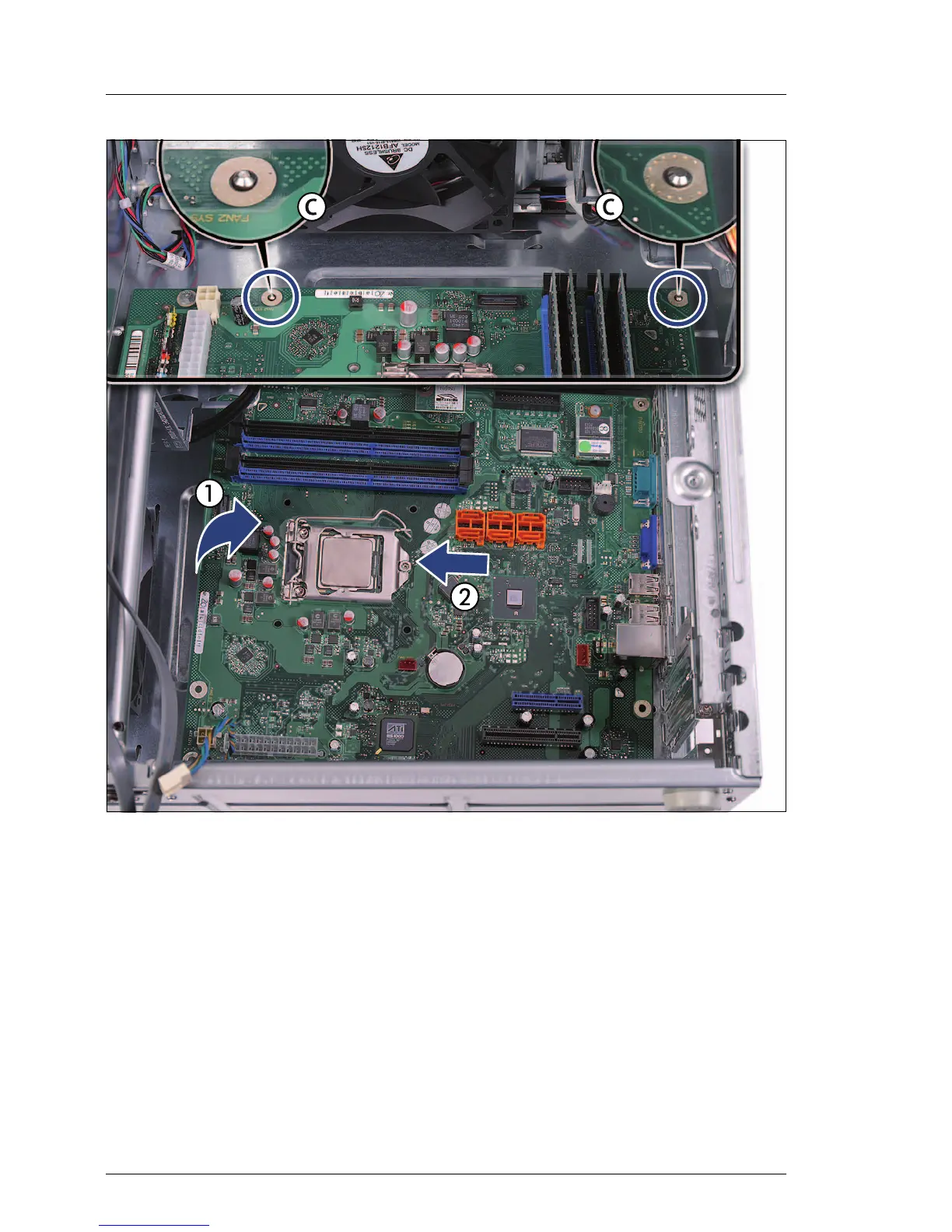

Figure 82: Detaching the system board (B)
Ê Slightly lift up the system board by the memory module ejectors and a PCI
slot (1) in order to detach it from the centering bolts (C).
Ê Carefully shift the system board to the left until the plug shells disengage
from the cut-outs in the connector panel (2).
