TX100 S2 Service Supplement 99
Replacement routines

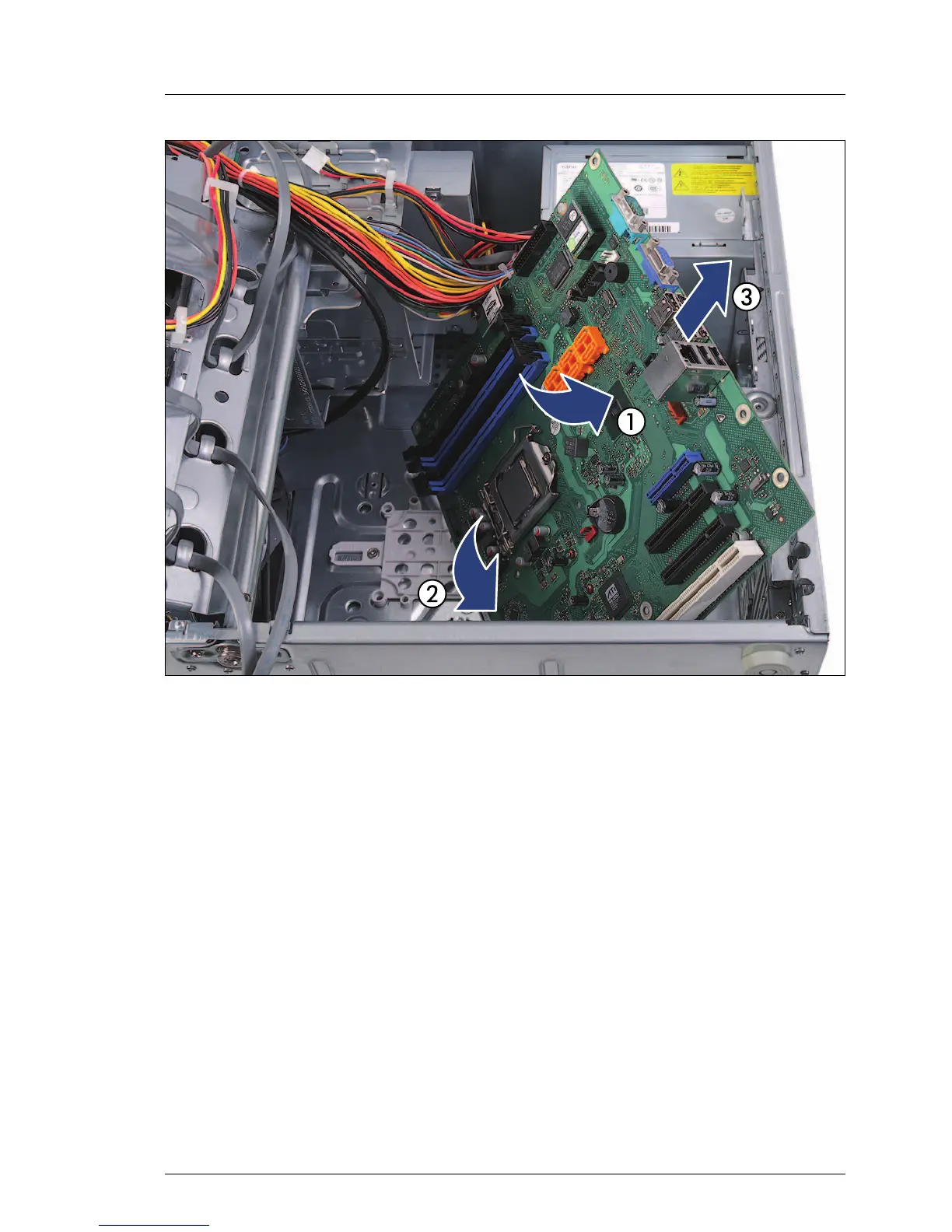

Figure 83: Removing the system board
Ê Hold the defective system board by the memory module ejectors and a PCI
slot. Rotate the system board as shown (1-2) and at an angle, lift it out of the
chassis (3).
Ê If applicable, remove the TPM module as described in section "Replacing
the Trusted Platform Module (TPM)" on page 104.
