100 Service Supplement TX100 S2
Replacement routines

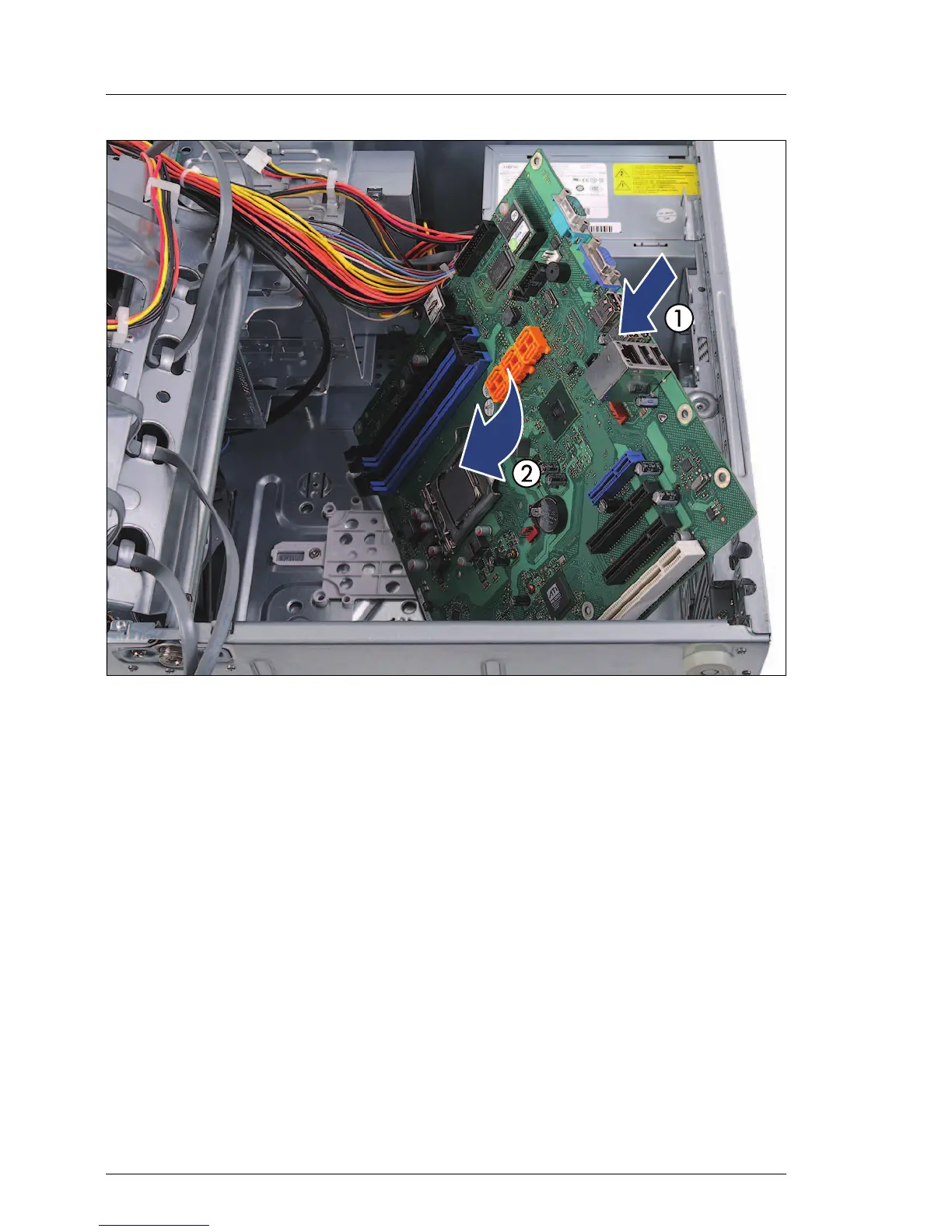

Figure 84: Installing the system board (A)
Ê Hold the new system board by the memory module ejectors and a PCI slot.
V CAUTION!
– Do not lift or handle the system board by any of its heat sinks!
– Ensure not to damage the EMI springs to comply with applicable
EMC regulations and satisfy cooling requirements and fire
protection measures.
Ê Rotate the system board as shown and at an angle lower it into the chassis
(1).
Ê Carefully insert the system board into the chassis in a circular motion (2).
