TX100 S2 Service Supplement 101
Replacement routines

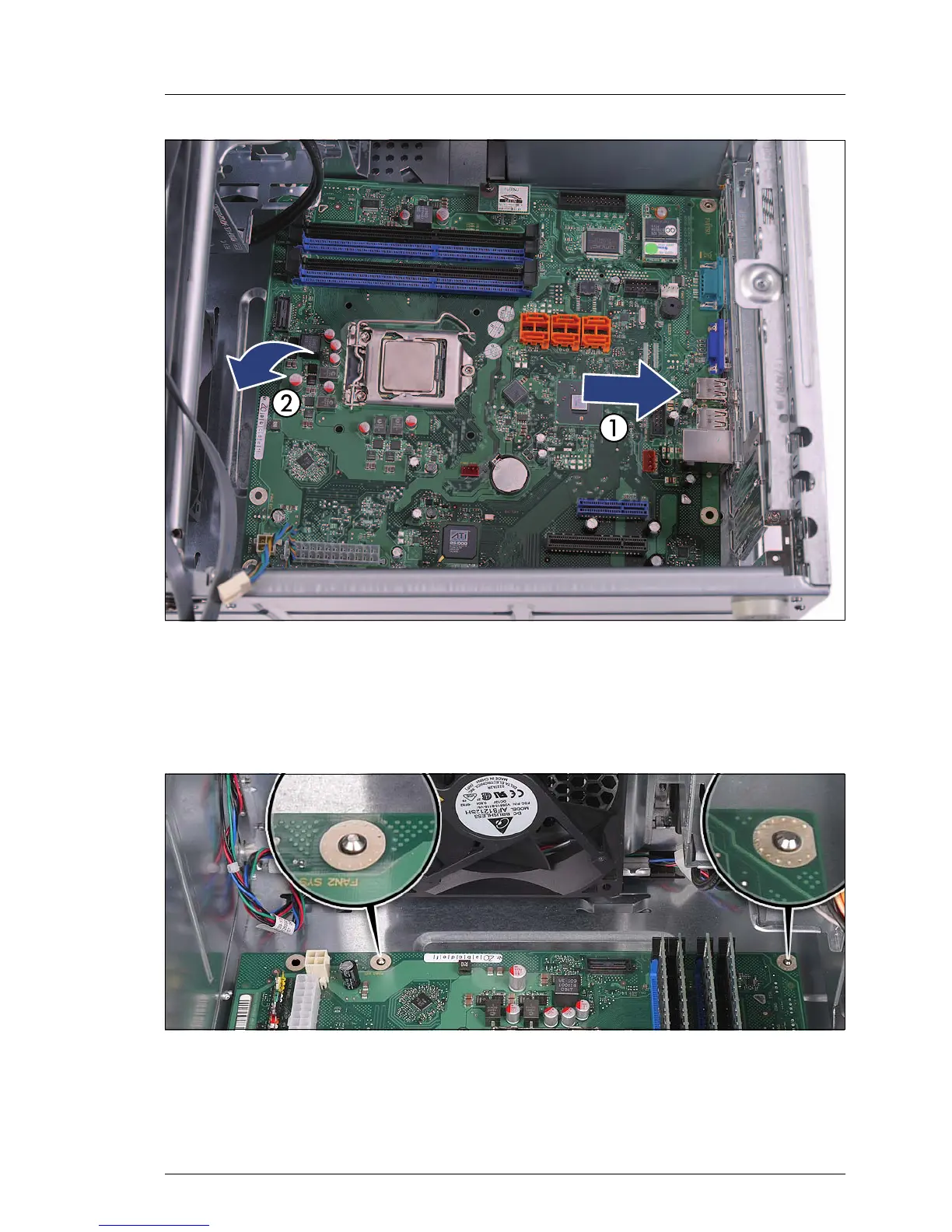

Figure 85: Installing the system board (B)
Ê Carefully shift the system board towards the server rear until the plug shells
engage with the cut-outs in the connector panel (1).
Ê Lower the system board onto the centering bolts (2).
Figure 86: Installing the system board (C)
Ê Ensure that the system board is properly seated on both centering bolts (see
circles).
