102 Service Supplement TX100 S2
Replacement routines

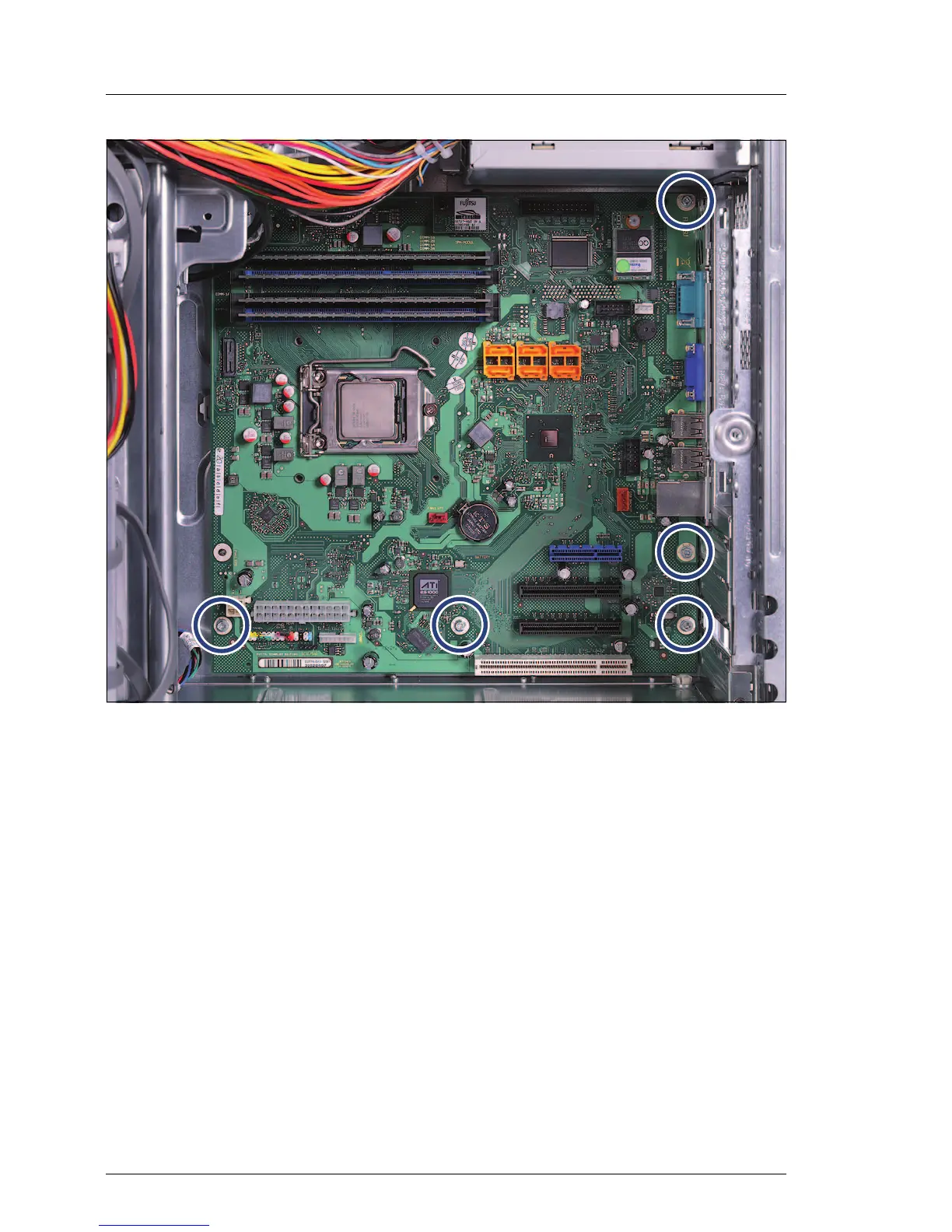

Figure 87: Securing the system board
Ê Secure the system board with five screws (M3 x 6 mm, C26192-Y10-C68)
(see circles).
I Screw torque: 0.6 Nm
Tighten the screws in a cross diagonal pattern.
Ê Verify the settings on the new system board (DIP switches, jumpers). For a
detailed description, please refer to the "System Board D2779 for
PRIMERGY TX100 S2 Technical Manual".
Ê Remove the processor from the defective system board and install it on the
new system board as described in section "Replacing the processor" on
page 88.
