TX100 S3 Core Edition Operating Manual 67
Starting up and operation

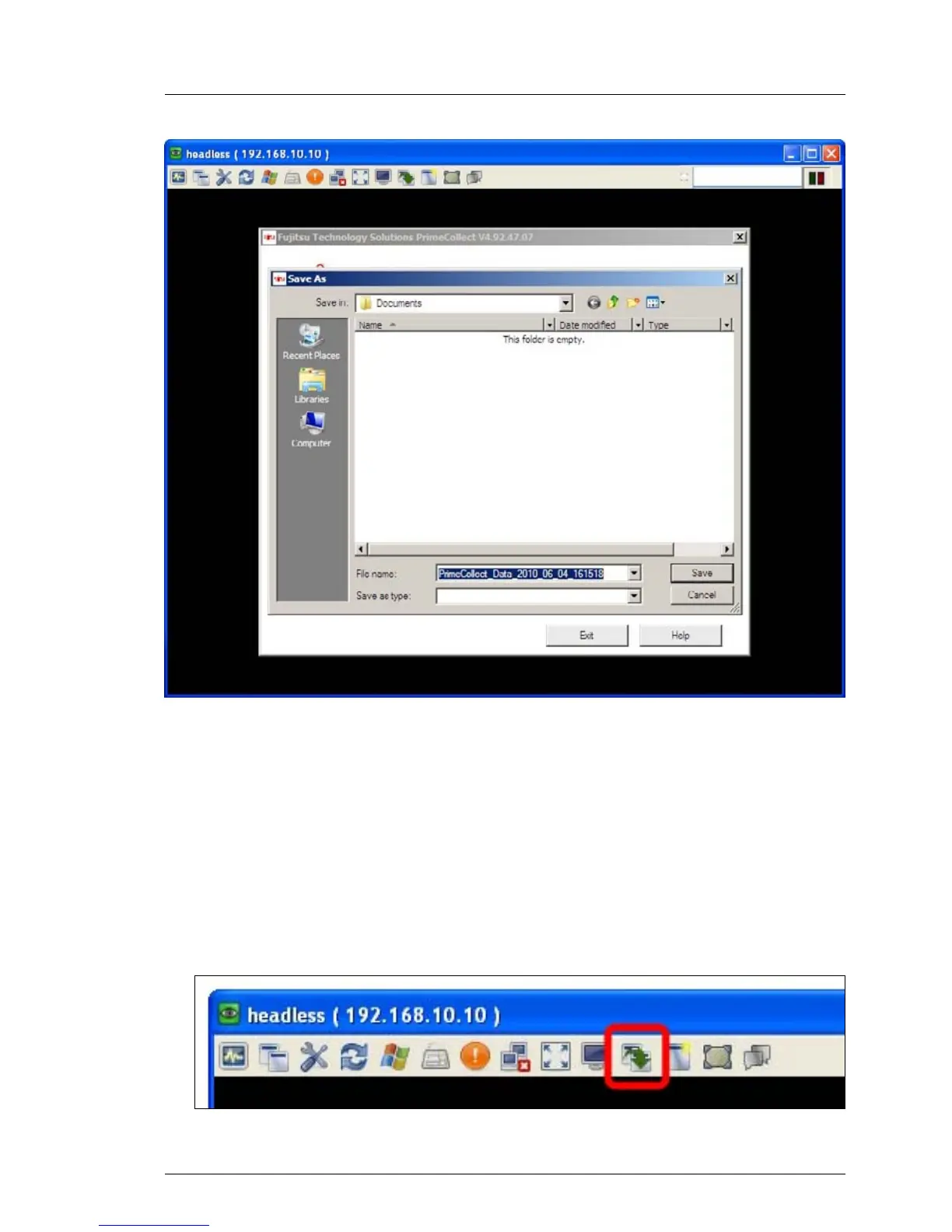

Figure 17: PrimeCollect - saving data (B)
Ê Click Save.
I – Use the preset storage folder on RAM drive X:
X:\Users\Public\Documents
– Leave the default file name unchanged.
Transfering the PrimeCollect file to your client computer
Ê Click on the File Transfer icon in the VNC client menu bar:
Figure 18: VNC client menu bar
