50 Operating Manual TX150 S6
Mounting the rack model Hardware installation

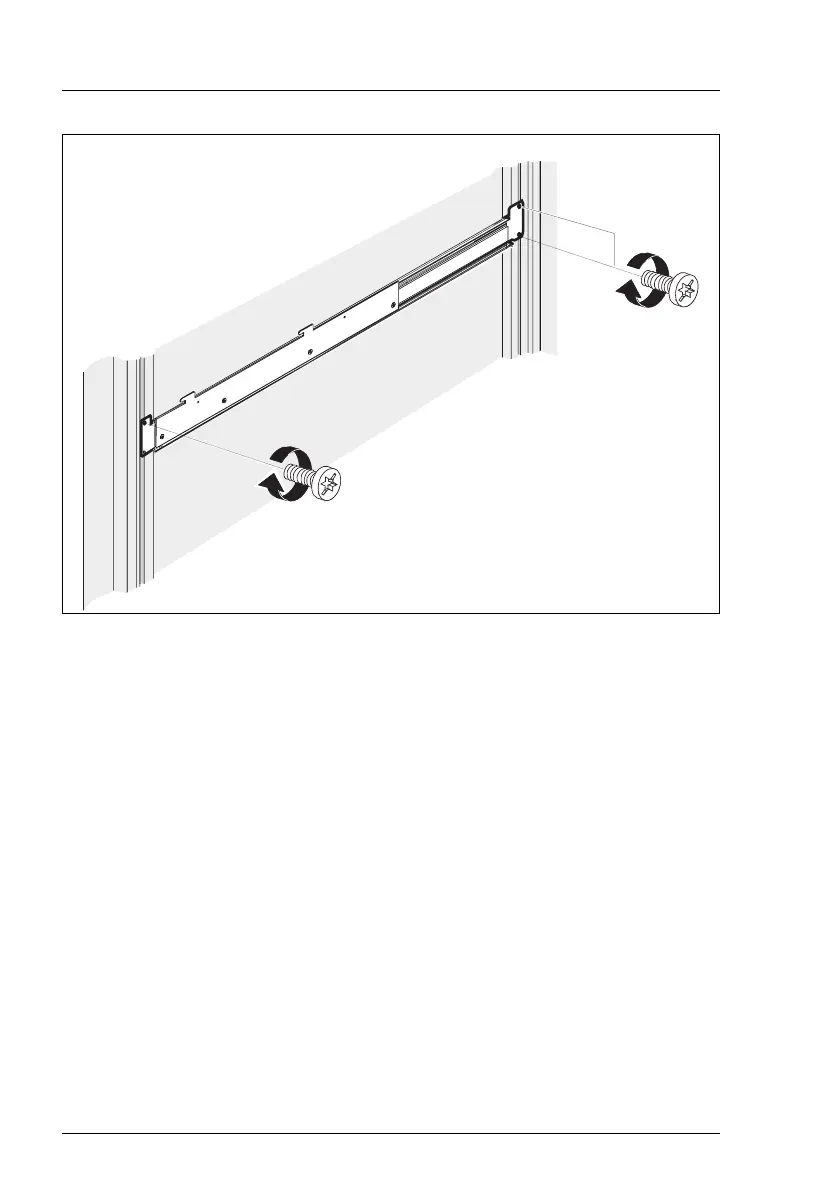

Figure 10: Fitting the rail in the Classic Rack
Ê Using the supplied Allen key (no. 5), secure the rails to the left and right
support uprights in the rack with two M5 screws each.
Note that the guide nubs on the telescopic rails must fit into the holes in the
support uprights next to the spring nuts.
Ê Repeat this procedure for the second telescopic rail.
Ê Insert the server (see section “Inserting the server” on page 57).
