54 Operating Manual TX150 S6
Mounting the rack model Hardware installation
Routing the fiber channel fiber optic cable
The protective hose (length approx. 1 m) supplied with the mounting kit has a
separable design.

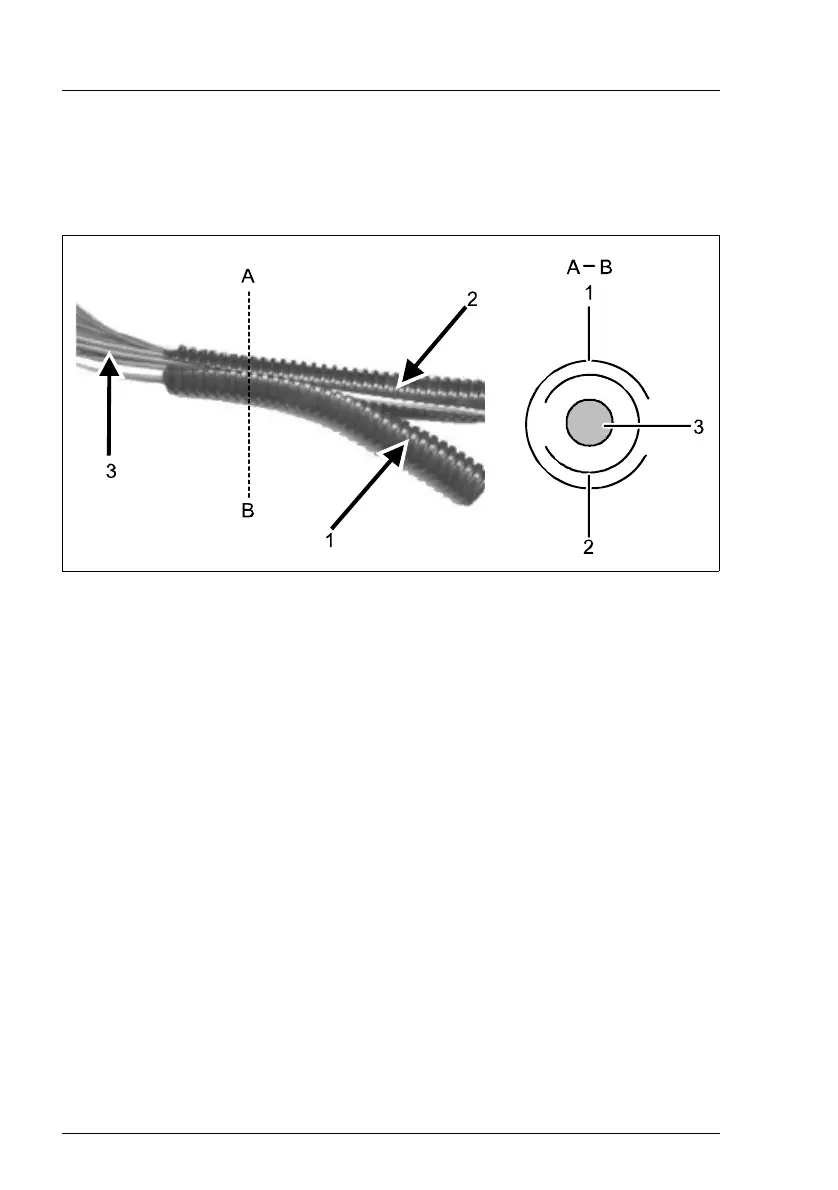

Figure 14: Fitting the protective hose
Ê Separate the outer protective sheath (1) from the inner sheath.
Ê Carefully place the fiber optic cable (3) in the inner protective sheath (2).
Ê Push the outer protective sheath (1) over the inner protective sheath.
V CAUTION!
The sheath openings must be arranged in an opposing direction as
shown in the sectional view A-B.
