Chapter 7 Installing Internal Options

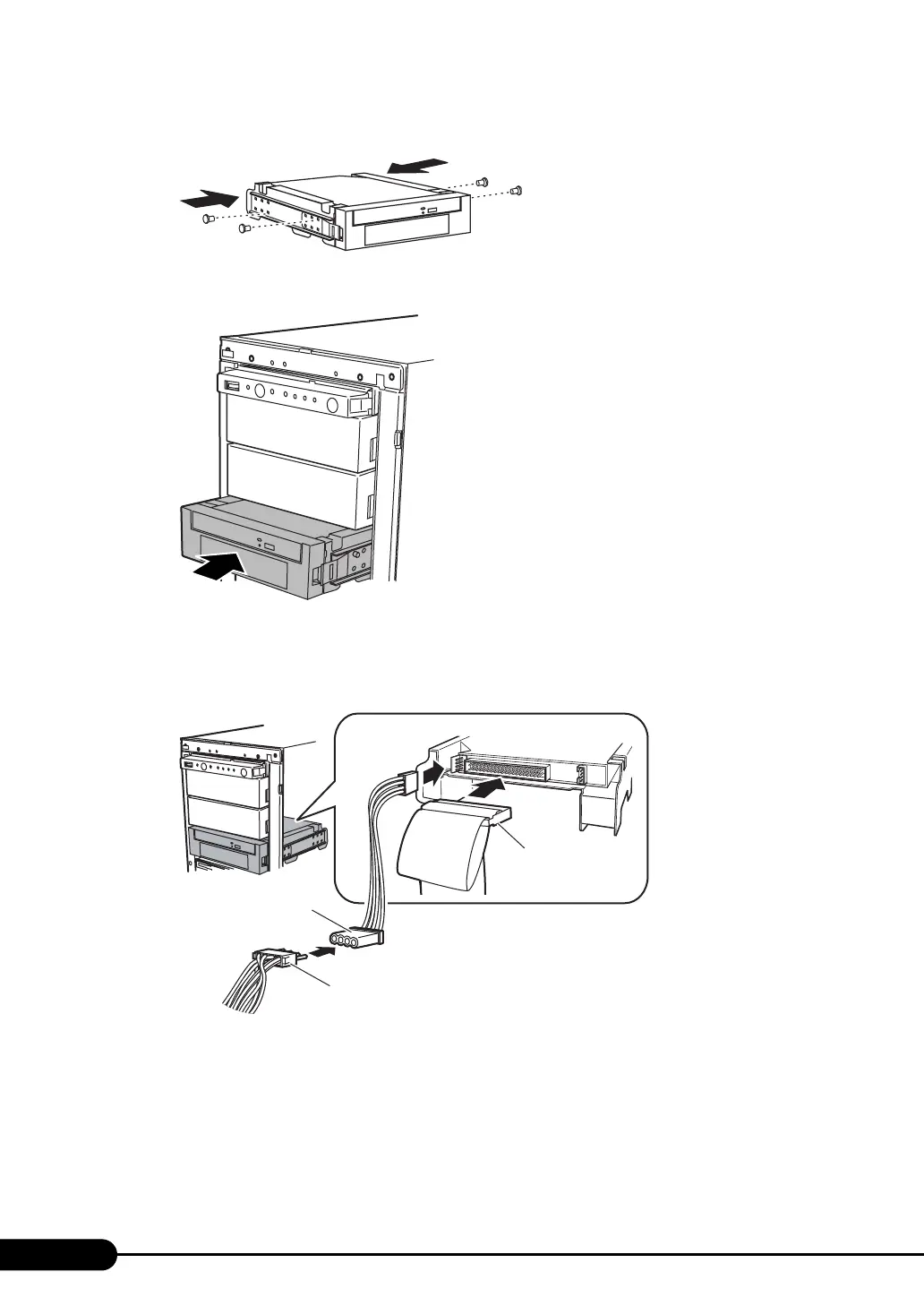

6 Attach the removed 5-inch storage bay rails to the DVD-RAM drive unit.
7 Install the DVD-RAM drive unit.
8 Connect the IDE cable and power cable to the DVD-RAM drive unit.
Connect the power cable to the conversion cable that is supplied with the DVD-RAM drive unit,
and connect it to the power connector of the DVD-RAM drive unit.
9 Attach the front and side covers.
rear side
IDE cable
Power cable
(1)
(2)
Conversion cable
