108 Options Guide U41593-J-Z156-2-76
Cabling Appendix

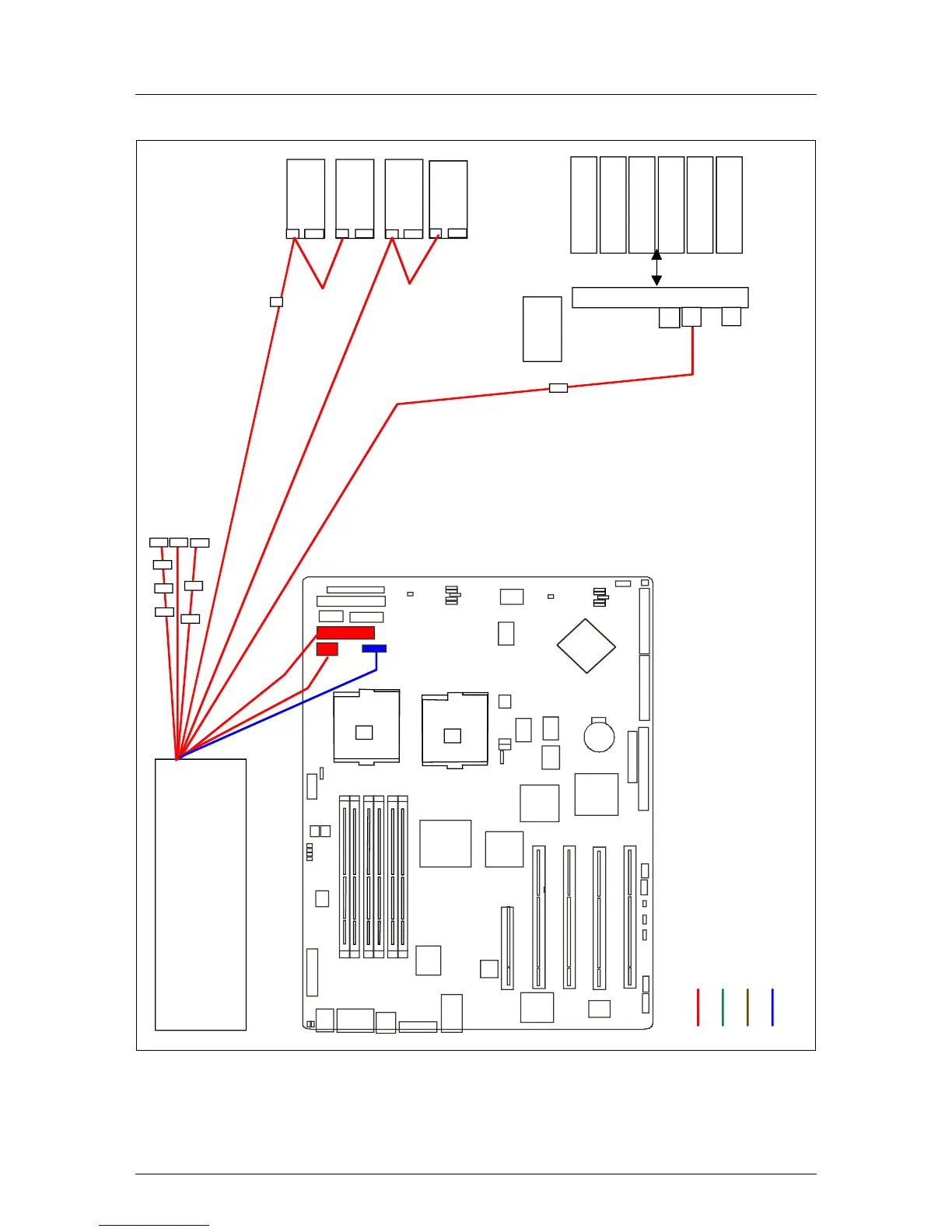

Figure 94: Cabling standard power supply E482-V60
Kabel-Präfix: T26139-
SV
SCSI
IDE/FD
Daten
Legende:
SCSI-FP ID5
SCSI-FP ID4
SCSI-FP ID3
SCSI-FP ID2
SCSI-FP ID1
SCSI-FP ID0
1" FPLW
SCSI-Backplane
1-Kanal
CD/DVD
slimline
Floppy
SCSI
Gerät
SCSI
Gerät
Floppy
IDTEMP
D1919
Standard Stromversorgung
E482-V60
P1
P10
P14
P8
P13
P9
P11
P3
P2
frei
P15/P16/P17/P18 nicht genutzt
P12 nicht genutzt
P4/P5/P6 nicht genutzt
P7
