3.2.4 BURNER CONTROL PANEL
Burner controls and indicators are mounted on the burner. The following controls are typical for
adualfuelburner,butreferenceshouldbemadetotheburnermanufacturer’sOperatingManual
for the particular type used.
Burner On/Off/Reset Switch
Three-position switch used to switch on/off and/or reset the burner.
Lockout Indicator
Indicatestheburnercombustioncontrolrelaydetectsaamefailurecondition.
The burner controller can be reset by setting the Burner On/Off/Reset Switch to the RESET
position.
Hand Indicator
This lamp will illuminate when the hand/auto switch mounted inside the burner control panel is in
the hand position, normally used for commissioning only.
Auto Indicator
This lamp will illuminate when the hand/auto switch mounted inside the panel is in the auto
position.
High Pressure Indicator
This lamp is not wired when a high steam pressure alarm/lamp is provided in the boiler control
panel.
Modulating Controller
Controlstheringoftheburnerwithinthepressurebandselected.

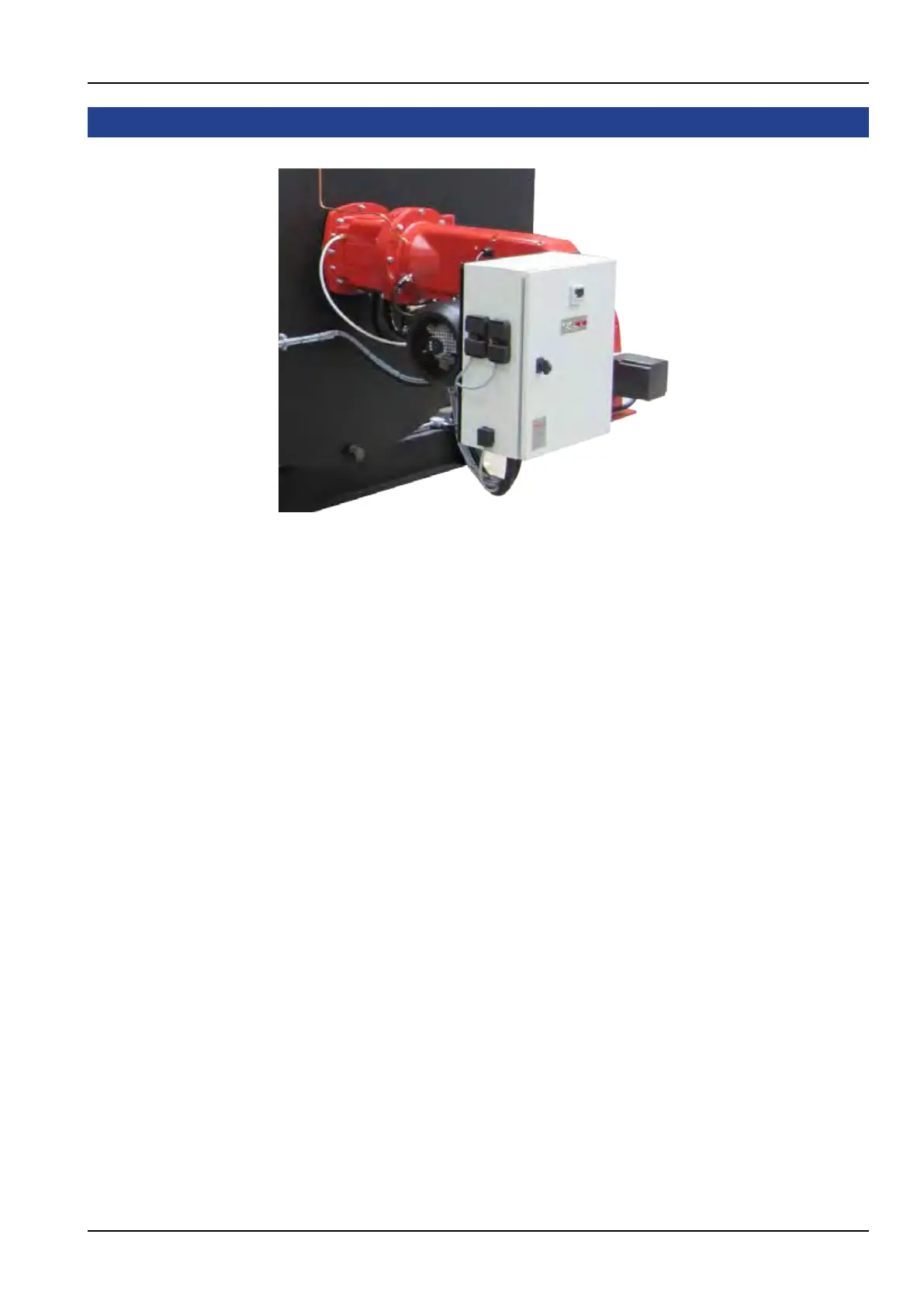

Figure. 15 - Burner Control Panel
Note: A gas burner is illustrated, for specic details consult the burner manual supplied with the boiler.
