FULTON RBC1250 - Front Access Door Insulation

RB-RBC-IOMM-2015-1
Fulton Ltd
Page 38
MAINTENANCE - 4
Front
access door
Boiler tube
plate insulation
Burner
blast tube
Door insulation
4.8.2 FRONT ACCESS DOOR INSULATION
WARNING
When handling ceramic bre always follow the local regulations regarding such materials, including the
use of breathing apparatus, suitable body protection and protective gloves.
!
Thefrontaccessdoorislinedwithend-onceramicbreleavinganairgapbetweenthebreand
the boiler tube face plate.
Thefaceoftheboilerfronttubeplateisalsoinsulatedwithend-onceramicbre,theinsulationis
positioned around the perimeter of the shell and over the area of tube plate above the water level.
The insulation is glued into position using a high temperature adhesive.
Inspection of the tube plate to shell weld will require insulation to be removed, it is important after
inspectiontoreplacewithnewhightemperatureend-onbre,availablewithadhesivefromFulton.

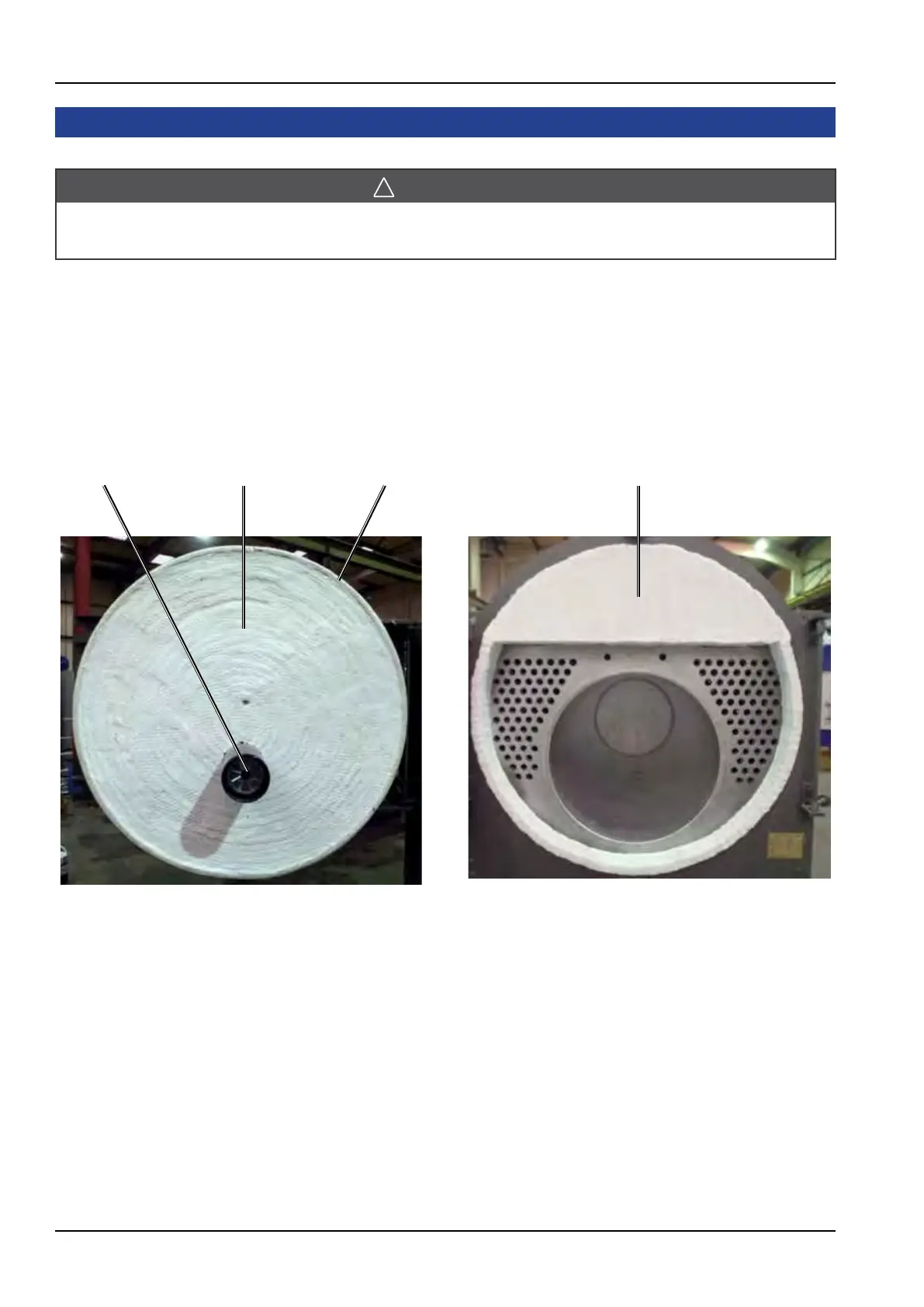

Figure. 26 - Front Access Door Insulation
