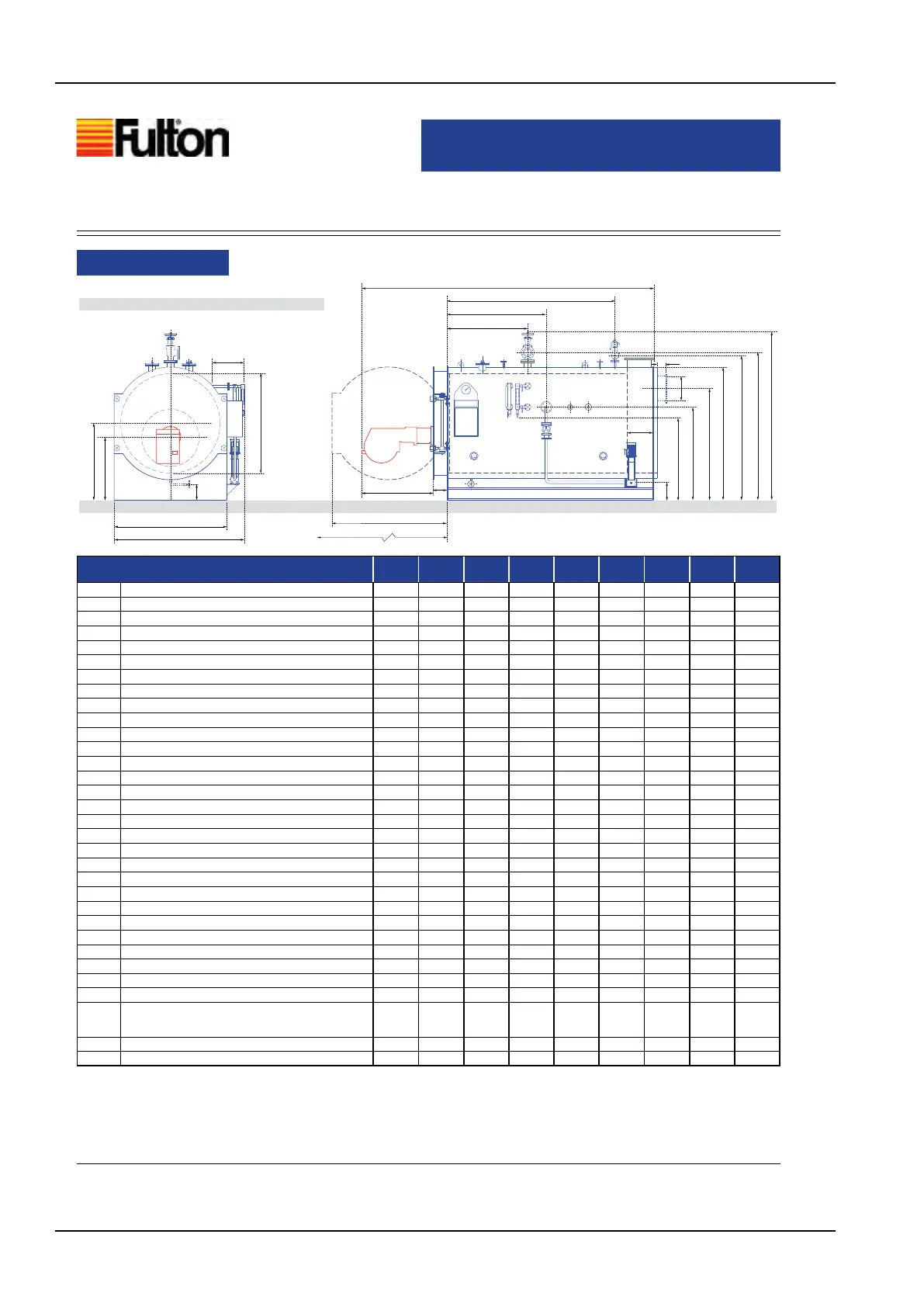

FULTON RBC1250 - RBC Dimensions & Specification

RB-RBC-IOMM-2015-1
Fulton Ltd
Page 56
APPENDIX - A
RBC Dimensions & Specifi cation
Fulton Ltd.
Dimensions mm
Dimensions are approximate and only intended as a guide to aid installation.
Dimensions
Technical Information
Sheet No. 109 Issue 4
MODEL: RBC 600 750 1000 1250 1500 1850 2100 2500 3000
A Overall Width 1960 1960 1960 2175 2175 2305 2305 2510 2508
B* Overall Length (With Gas Burner) 3240 3325 4025 4415 4415 4725 4725 4830 4856
Overall Length (With Oil Burner) 3310 3395 4103 4493 4493 4482 4482 4587 4860
Overall Length (With Dual Fuel Burner) 3280 3365 4020 4410 4410 4720 4826 4931 5195
C Overall Height 2495 2495 2545 2750 2750 2940 2940 3200 3200
D Boiler Height 2100 2100 2100 2250 2250 2400 2400 2565 2565
E Boiler Diameter 1500 1500 1500 1650 1650 1800 1800 2028 2028
F Base Frame Width 1700 1700 1700 1870 1870 2020 2020 2248 2248
G* Gas Burner Length 795 795 980 980 980 980 980 980 906
Oil Burner Length 865 865 1058 1058 1058 737 737 737 910
Dual Fuel Burner Length 835 835 975 975 975 975 1081 1081 1245
H Tube Withdrawal Distance 2150 2185 2605 2945 2945 3205 3205 3205 3305
J Furnace Centreline Height 980 980 980 1035 1035 1105 1105 1140 1175
K Boiler Centreline Height 1200 1200 1200 1275 1275 1350 1350 1450 1450
L1 Door Opening Radius 1735 1735 1735 1905 1905 2055 2055 2285 2285
L2 Front Door Depth 240 240 240 240 240 240 240 240 240
M Rear Gas Chamber Depth 250 300 395 445 445 495 495 550 550
N1 Safety Valve Discharge to Front 2090 2090 2520 2790 2790 3045 3045 3100 3200
N2 Safety Valve Discharge Height 2205 2205 2215 2365 2365 2250 2540 2755 2757
P1 Steam Outlet to Front 890 890 1040 1340 1340 1645 1645 1700 1750
P2 Steam Outlet Height 2245 2245 2245 2425 2425 2575 2575 2805 2809
R1 Feedwater Inlet to Front 1550 1550 1790 1650 1650 1710 1710 1855 1855
R2 Feedwater Inlet Height 1460 1460 1460 1540 1540 1695 1695 1700 1700
S1 Rear Flue Outlet Height 1700 1700 1700 1850 1850 1975 1975 2140 2140
Top Flue Outlet Height - 2405 2405 2555 2555 2715 2715 2875 2878
S2** Flue Outlet Depth 152 152 152 152 152 152 152 152 152
S3*** Flue Diameter 250 300 300 350 400 450 450 500 550
T Feedwater Pump Inlet Height 290 290 290 290 290 290 290 290 290
U Main Boiler Blowdown Height 300 300 300 300 300 215 215 250 250
V
Water Level Gauge (Sight Glass)
Blowdown Height
1330 1330 1330 1410 1410 1580 1580 1725 1725
W Water Sample Point Height 1460 1460 1460 1540 1540 1710 1710 1863 1863
X Water Level Gauge Stand Off 330 330 330 330 330 330 330 330 330
E
K
J
U
F
A
N1
P1
S2
C
P2
N2
S1
R2
W
T
L2
G
H
S3
M
B
L1
D
V
X
R1
Note:
* Dimensions given for Nu-Way burners. Other burners will vary.
** Flue may be rear or top mounted. N.B. Clearance must be left all round the boiler for maintenance access.
*** Details of fl anges will vary with specifi cation.
