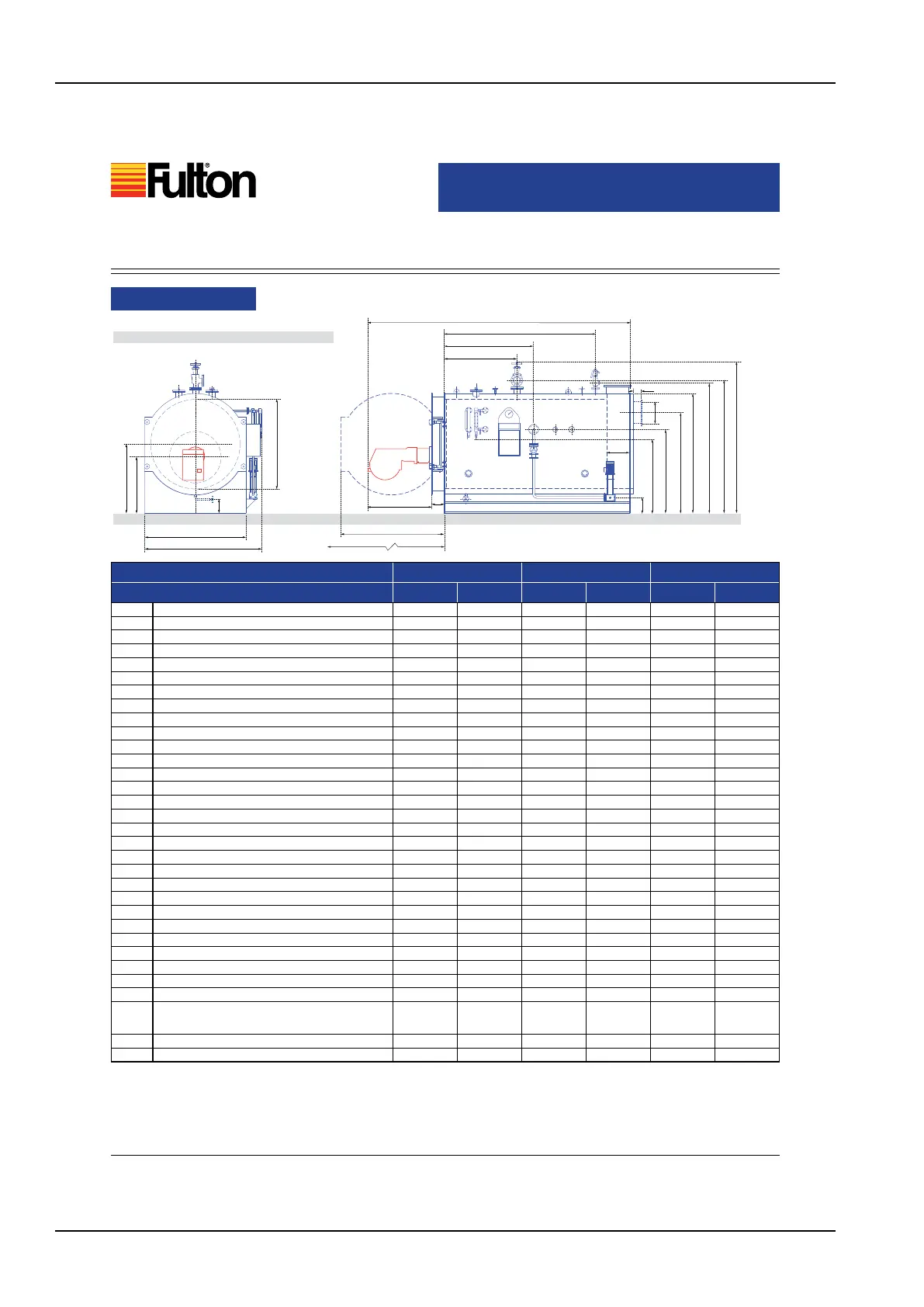

APPENDIX - A
RB Dimensions & Speci cation
Fulton Ltd
Dimensions mm
Dimensions are approximate and only intended as a guide to aid installation.
Dimensions
Technical Information
Sheet No. 135 Issue 1
MODEL: RB 1600 2600 3400
S P S P S P
A Overall Width 2000 2000 2175 2175 2350 2350
B* Overall Length (With Gas Burner) 3575 3760 4650 4535 4965 4891
Overall Length (With Oil Burner) 3322 3517 4407 4407 4722 4722
Overall Length (With Dual Fuel Burner) 3615 3755 4645 4915 4960 5230
C Overall Height 2465 2465 2750 2750 2970 1970
D Boiler Height 2100 2100 2250 2250 2450 2450
E Boiler Diameter 1500 1500 1650 1650 1800 1800
F Base Frame Width 1700 1700 1870 1870 2020 2020
G* Gas Burner Length 795 980 980 865 980 906
Oil Burner Length 542 737 737 737 737 737
Dual Fuel Burner Length 835 975 975 1245 975 1245
H Tube Withdrawal Distance 2250 2250 2970 2970 3225 3225
J Furnace Centreline Height 980 980 1035 1035 1150 1150
K Boiler Centreline Height 1200 1200 1275 1275 1400 1400
L1 Door Opening Radius 1735 1735 1905 1905 2055 2055
L2 Front Door Depth 240 240 240 240 240 240
M Rear Gas Chamber Depth 300 300 445 445 495 495
N1 Safety Valve Discharge to Front 2090 2090 2850 2850 3045 3045
N2 Safety Valve Discharge Height 2205 2205 2365 2365 2586 2586
P1 Steam Outlet to Front 860 860 1340 1340 1645 1645
P2 Steam Outlet Height 2245 2245 2275 2275 2620 2620
R1 Feedwater Inlet to Front 1550 1550 1675 1675 1695 1695
R2 Feedwater Inlet Height 1515 1515 1620 1620 1820 1820
S1 Rear Flue Outlet Height 1700 1700 1850 1850 2020 2020
Top Flue Outlet Height 2170 2170 2330 2330 2525 2525
S2** Flue Outlet Depth 150 150 150 150 150 150
S3*** Flue Diameter 300 300 350 350 450 450
T Feedwater Pump Inlet Height 285 285 285 285 285 285
U Main Boiler Blowdown Height 280 280 280 280 280 280
V
Water Level Gauge (Sight Glass)
Blowdown Height
1340 1340 1420 1420 1590 1590
W Water Sample Point Height 1460 1460 1540 1540 1740 1740
X Water Level Gauge Stand Off 1050 1050 1135 1135 1270 1270
E
K
J
U
F
A
N1
P1
S2
C
P2
N2
S1
R2
W
T
L2
G
H
S3
M
B
L1
D
V
R1
Note:
* Dimensions given for Nu-Way burners. Other burners will vary.
** Flue may be rear or top mounted. N.B. Clearance must be left all round the boiler for maintenance access.
*** Details of  anges will vary with speci cation.
