3.3 Receiver unit: NX-7001
3-8
3.3 Receiver unit: NX-7001

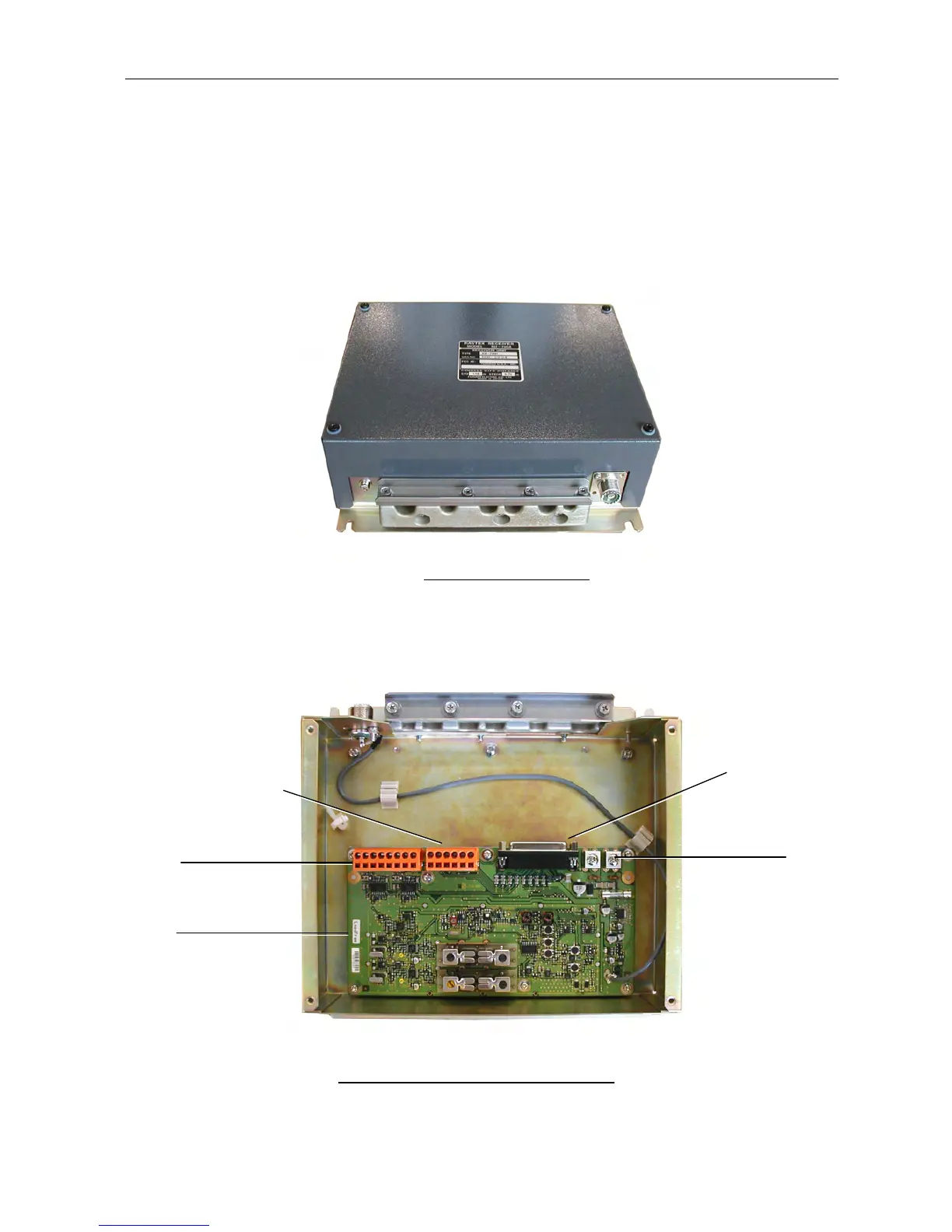

Fig. 3.3.1 Receiver unit
Fig. 3.3.2 Receiver unit cover removed
Power input
(+12 to+24 VDC)
RCV board
(08P3227)
J401
(25p D-sub)
J403
A
LM/Printe
r
J402
INS (GPS)
63
65
