130
7 Construction of bodies
7.2 Mounting frame
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

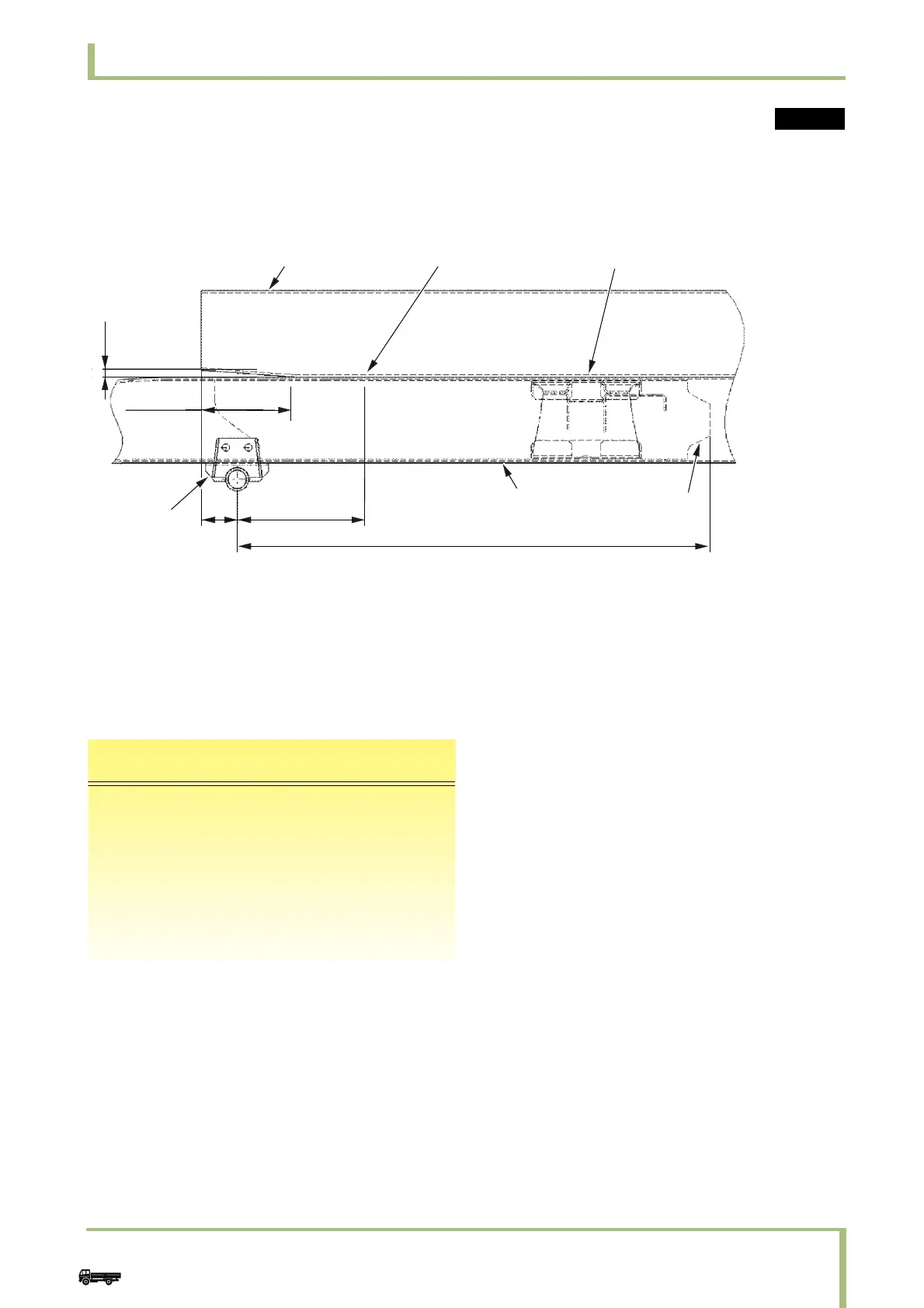

7.2.1 Mounting frame
• Be sure to install a mounting frame to ensure that
a concentrated load is not applied to the chassis
frame.
2 to 3
100 to 200
80
A1
4
5
3
310
1100
2
A Part of the frame assembly that has been enlarged
wide cab: 750 mm assembly width
1Mounting frame
2 No. 2 cross member
3 Sub-side rail <750 mm assembly width>
4Side rail
5 Front shackle hanger
i Additional information
(A) indicates the part of the frame assembly that
has been enlarged (wide cab: 750 mm assembly
width).
Cargo
